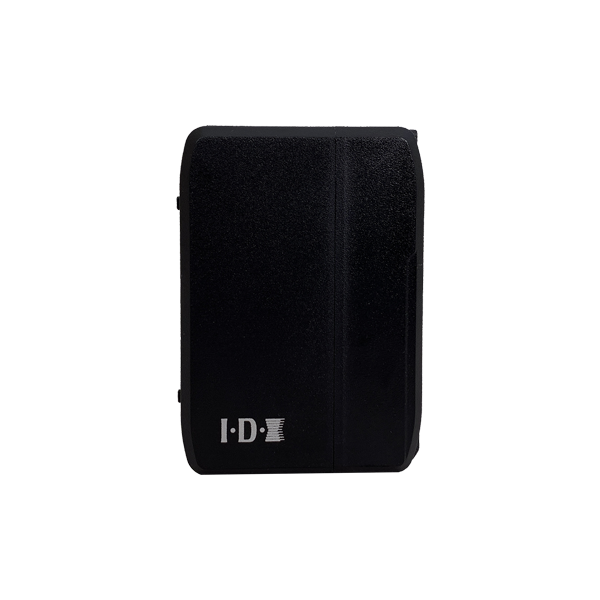

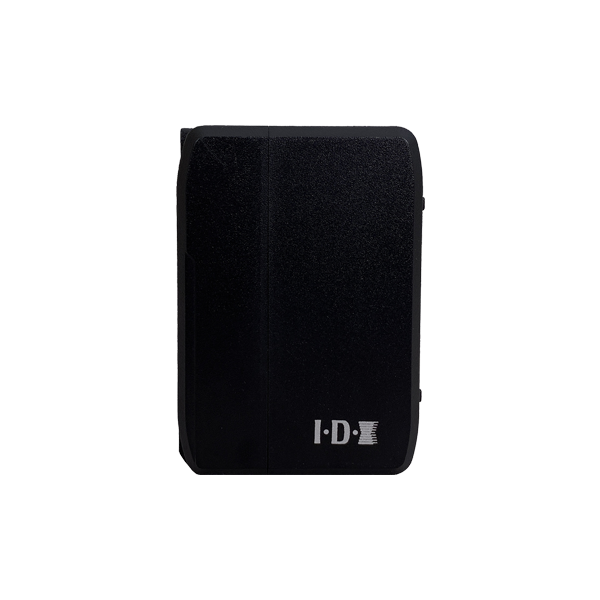

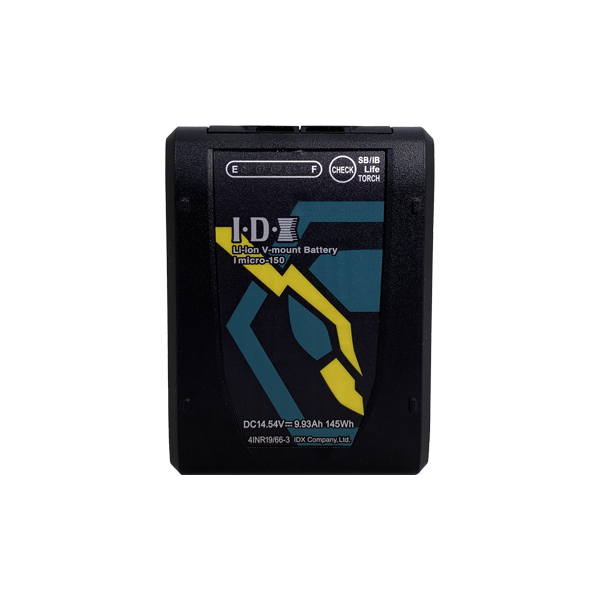

IDX Imicro-150P compact V-mount battery

The IDX Imicro-150P is a compact V-mount battery with a large capacity. It has one D-Tap and one USB-C output.

More information

459 € with VAT 379.34 € without VAT
-+
Availability
Shipment day: 27. 12.
To be sent 2 pcs
Bratislava 2 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The IDX Imicro-150P is a compact V-mount battery with a large capacity. It has one D-Tap and one USB-C output.

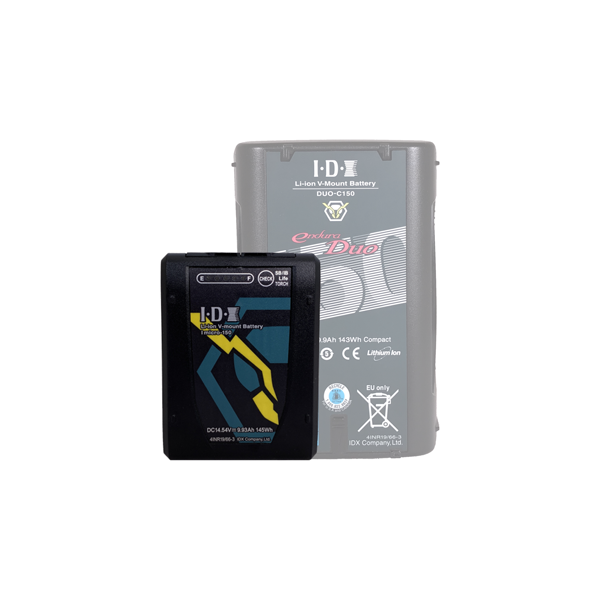

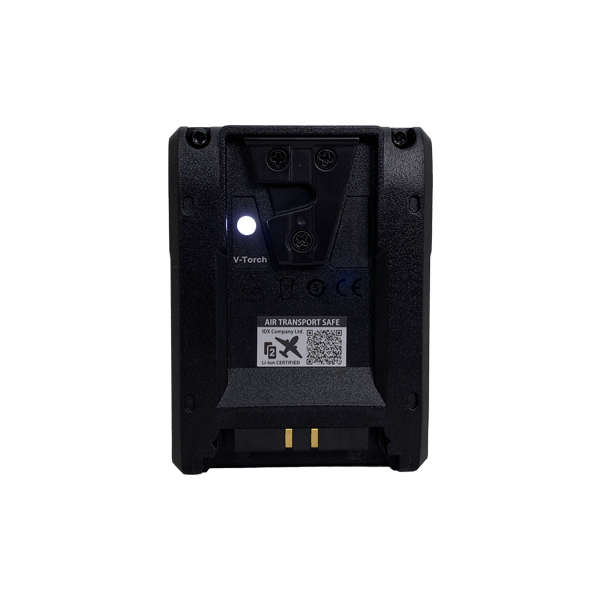

The IMICRO-150P is the smallest battery pack in the world at this capacity. Rated at 145Wh, the IMICRO-150P meets the passenger aircraft carry-on limit while remaining useful in many diverse applications. The IMICRO™s size is beneficial for users with small equipment and gimbal set ups, and fits the new RED V-RAPTOR. The IMICRO-150P also includes one USB-C PD and one D-Tap outputs, V-Torch LED for use in dark environments and digital communications to display battery info via viewfinder on cameras such as ARRI and RED. Future accessories will make the Imicro Series your new go-to setup.
*Compatible with UC-PD1 and UC-PD2 for USB-C PD charging

PACKAGE CONTENT

  • IDX Imicro-150P battery
  • Warranty Card

SPECIFICATIONS

  • Battery capacity: 145Wh (14.4V/ 9.9Ah)
  • Max. 16.8V DC
  • Rated voltage: 14.5V DC
  • Maximum discharge current: 14A
  • D-Tap: 100W
  • USB-C In/Out: PD60W
  • Minimum Voltage: 11V
  • Battery protection: overcharge, over-discharge, over-current protection, thermal protection
  • Ambient Temperature - Charging: 0°C ~ 40°C (10°C ~ 30°C recommended)
  • Ambient Temperature - Discharge: -20°C ~ 45°C (10°C ~ 40°C recommended)
  • Ambient temperature - storage: -20°C ~ 50°C (less than 1 month)
  • Dimensions: 72(width) x 97(height) x 67.5(depth) mm
  • Weight: 812g
Parameters

Parameters

Manufacturer: IDX
Category: Battery 14,4V

Main parameters

Battery Capacity145Wh
Mount typeV-Mount
