Infinitek L-2.5CHWS flexibilni 3G/HD-SDI kabel, BNC-BNC 0,5m
SKU: I-25W-M/M-BLK-05
Canare L-2.5CHWS is a flexible thin "Low Loss" flexible and durable 75 ohm 4.2 mm coaxial SDI cable ideal for mobile SD/HD/3G/12G use with excellent resistance to repeated bending.
12 € with VAT
9.92 € without VAT
Availability
on request
Product description
Product description
Canare L-2.5CHWS is a flexible thin "Low Loss" flexible and durable 75 ohm 4.2 mm coaxial SDI cable ideal for mobile SD/HD/3G/12G use with excellent resistance to repeated bending.
The12G-SDI signal can transmit to 32m.

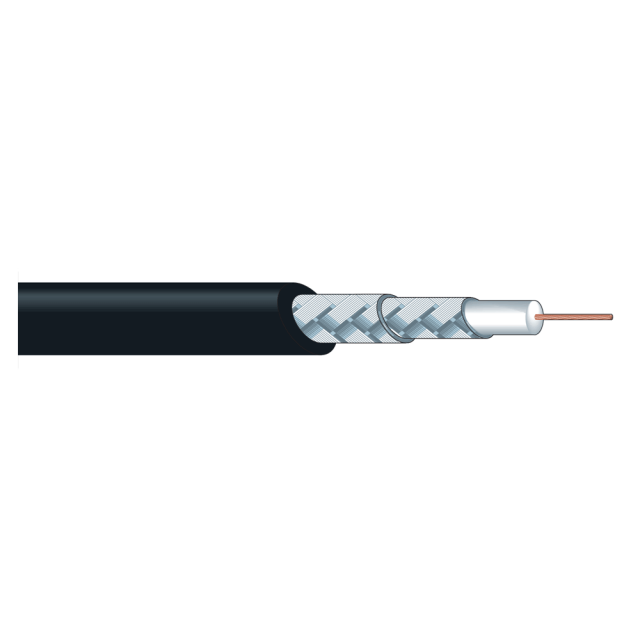

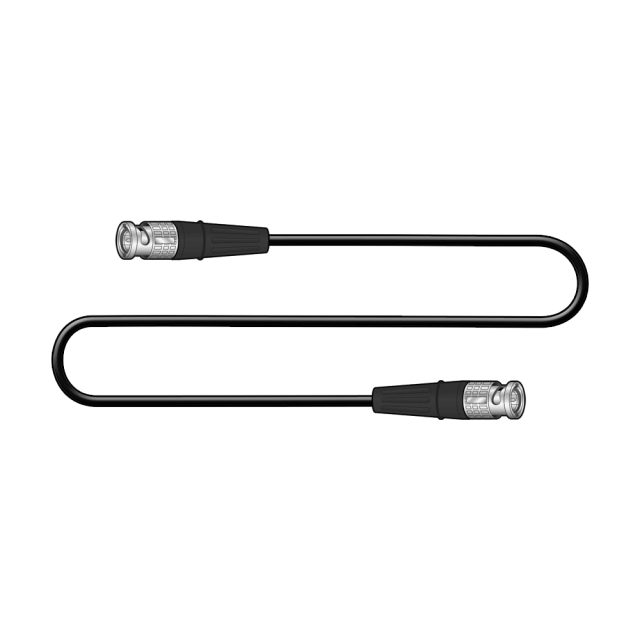

The cable has a stranded central conductor and a high-density double braided shield with thick foam insulation. There are Canare BCP-B25HW crimp-on BNC (M) connectors on both ends and optional Canare CB02 color caps .
Use of Canare L-2.5CHWS flexible cable:
- compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Maximum transmission distance depending on video format:
| Maximum transmission distance of Canare L-2.5CHWS depending on video format | ||||||||
| Data rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3 Gb/s | 12 Gb/s |
| Specification: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M | SMPTE ST 2082-1 |
| Application: | nTSC composite | pAL composite | 4:2:2 components | 4:2:2 16x9 components | SDI | HD-SDI 1080i | 3G-SDI 1080p | 12G-SDI 4K-UHD |
| Maximum cable length: | 275m | 247m | 198m | 171m | 138m | 53m | 54m | 32m |
