Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 0,7m
SKU: I-25W-M/M-BLK-07
Canare L-2.5CHWS "Low Loss" flexible and durable 75 ohm 4,2 mm koaxial cable, ideal for mobile SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
12 € with VAT
9.92 € without VAT
Availability
on request
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 0,3m
11 €without VAT 9.09 €
Infinitek L-2.5CHWS flexibilni 3G/HD-SDI kabel, BNC-BNC 0,5m
12 €without VAT 9.92 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 1m
13 €without VAT 10.74 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 10m
32 €without VAT 26.45 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 15m
43 €without VAT 35.54 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 2m
15 €without VAT 12.4 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 20m
53 €without VAT 43.8 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 25m
64 €without VAT 52.89 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 3m
17 €without VAT 14.05 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 30m
74 €without VAT 61.16 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 35m
85 €without VAT 70.25 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 40m
96 €without VAT 79.34 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 45m
106 €without VAT 87.6 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 5m
21 €without VAT 17.36 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 50m
117 €without VAT 96.69 €
Infinitek L-2.5CHWS Flexible 3G/HD-SDI cable, BNC-BNC 7,5m
27 €without VAT 22.31 €Top accessories for Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 0,7m
Canare BCJ-JRK 12G-SDI Panel Mount Bulkhead BNC Receptacle
Panel Mount Bulkhead BNC Receptacle
4.8 €
In stock > 5 pcs
Adhesive tape Gaffa black 50m
Adhesive tape Gaffa black, matt finish. Width 50 mm, tape length 50m.
12 €
In stock > 5 pcs
Stage Tape Neon Pink 19mm, 25m
Gaffa tape fluorescent, width 19mm length 25mm
7.3 €
In stock > 5 pcs
Amphenol BNC rectangular adapter / coupler
Rectangular BNC (M) male to BNC (F) female 75 ohm adapter/coupler .
11 €
In stock 1 pcs
HT-2206 extraction tool for BNC connectors
Suitable for assembly and disassembly of BNC connectors in hard to reach places,
16 €
In stock 1 pcs
Canare BCJ-RCAP
Canare BCJ-RCAP is a 75 ohm BNC (F-female) to RCA (M-male) connector
10 €
Backordered > 5 pcs
Product description
Product description
Canare L-2.5CHWS "Low Loss" flexible and durable 75 ohm 4,2 mm koaxial cable, ideal for mobile SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
12G-SDI dokáže preniesť na 32m.

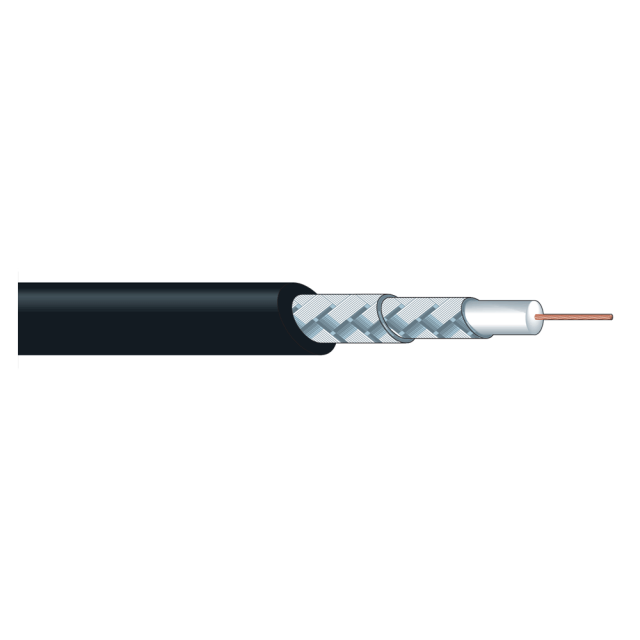

The cable has a stranded central conductor and high-density double braided shielding with thick foam insulation. There are Canare BCP-B25HW crimp-on BNC (M) connectors on both ends and optionalCanare CB02colored caps.
Use of Canare L-2.5CHWS flexible cable:
- compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Maximum transmission distance depending on video format:
| Maximum transmission distance of Canare L-2.5CHWS depending on video format | ||||||||
| Data transfer rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3 Gb/s | 12 Gb/s |
| Specification: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M | SMPTE ST 2082-1 |
| Application: | nTSC composite | pAL composite | components 4:2:2 | 4:2:2 16x9 components | SDI | HD-SDI 1080i | 3G-SDI 1080p | 12G-SDI 4K-UHD |
| Maximum cable length: | 275m | 247m | 198m | 171m | 138m | 53m | 54m | 32m |
