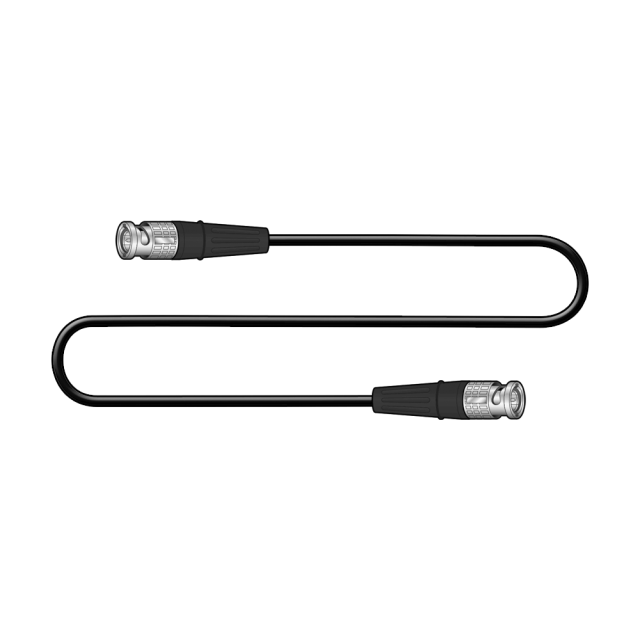

Infinitek L-2.5CHWS Flexible 3G/HD-SDI Cable, BNC-BNC 1m
SKU: I-25W-M/M-BLK-1
Canare L-2.5CHWS "Low Loss" flexible and durable 75 ohm 4,2 mm koaxial cable, ideal for mobile SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
13 € with VAT
10.74 € without VAT
Availability
on request
Product description
Product description
Canare L-2.5CHWS "Low Loss" flexible and durable 75 ohm 4,2 mm koaxial cable, ideal for mobile SD/HD/3G/12G použitie s výbornou odolnosťou voči opakovanému ohýbaniu.
12G-SDI can transmit up to 32m.

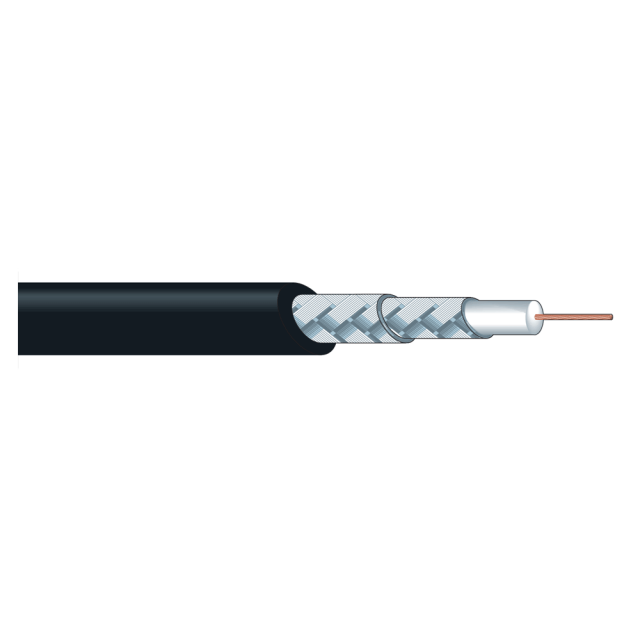

The cable has a stranded central conductor and high-density double braided shielding with thick foam insulation. There are Canare BCP-B25HW crimp-on BNC (M) connectors on both ends and optionalCanare CB02colored caps.
Use of Canare L-2.5CHWS flexible cable:
- compliant with SMPTE 424M and SMPTE 292M, SMPTE ST 344M and SMPTE ST 2082-1 specifications
- HDTV
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Maximum transmission distance depending on video format:
| Maximum transmission distance of Canare L-2.5CHWS depending on video format | ||||||||
| Data transfer rate: | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mbps | 1.5 Gb/s | 3 Gb/s | 12 Gb/s |
| Specification: | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE 259M | SMPTE ST 344M | SMPTE ST 292M | SMPTE ST 424M | SMPTE ST 2082-1 |
| Application: | nTSC composite | pAL composite | components 4:2:2 | 4:2:2 16x9 components | SDI | HD-SDI 1080i | 3G-SDI 1080p | 12G-SDI 4K-UHD |
| Maximum cable length: | 275m | 247m | 198m | 171m | 138m | 53m | 54m | 32m |
