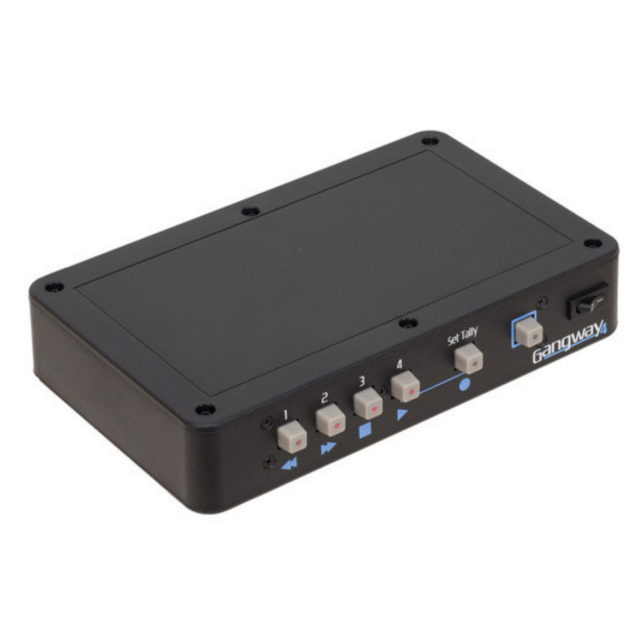

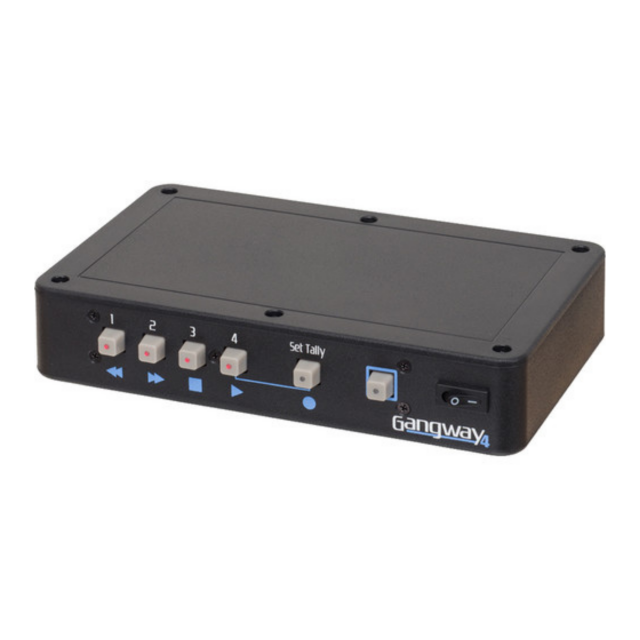

JLCooper 4 Port Gang Roll Switcher And Trigger Box

GangWay4™ is a compact, 4 port RS-422 Gang Roll Switcher and GPI Trigger Box for controlling up to four video recorders.

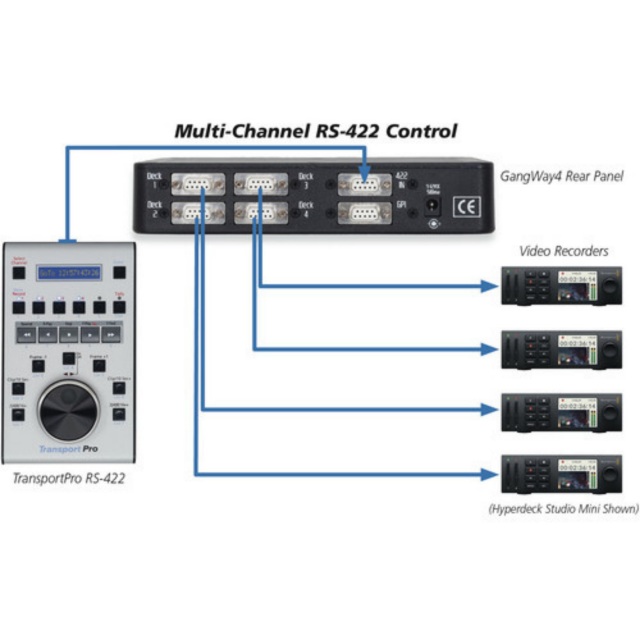

Connect any RS-422 controller, like VTC1, MCS6, or TransportPro, with it’s unique ability to remotely select GangWay channels.

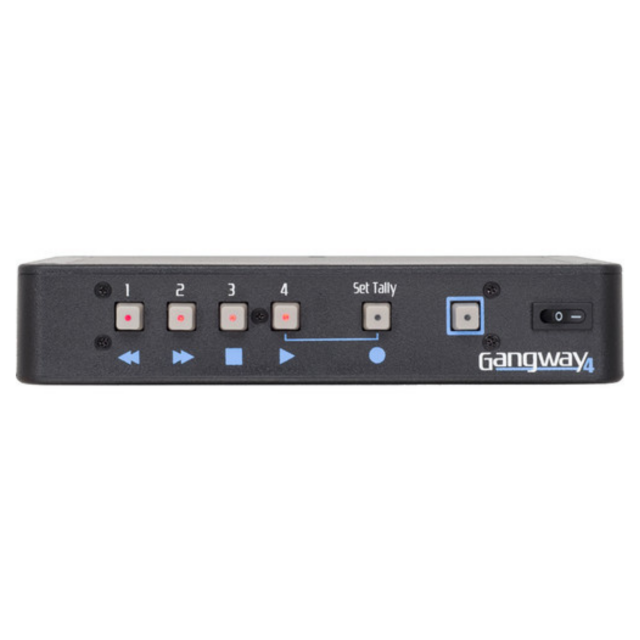

GangWay4 has illuminated buttons for clear indication of enabled channels, “All” button and a Tally Select button.

Channel buttons also serve as transport controls, allowing you to control decks right from the front panel.

Controls Most Professional RS-422 File-Based Recorders including; AJA Ki Pro Rack, Ki Pro Ultra, Ultra Plus, Atomos Shogun Studio, BlackMagic Hyperdeck Studio, Hyperdeck Studio Mini, Video Devices Pix 250i, 260i, 270i, Sony XDCAM and more!

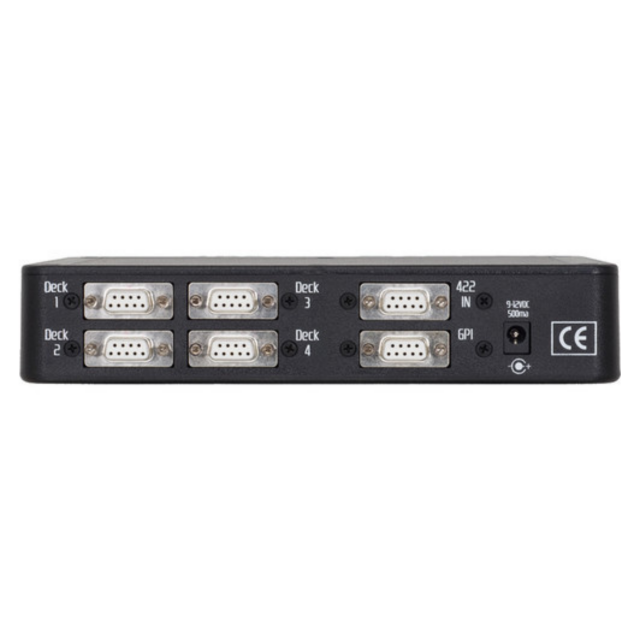

GangWay4 has has 1 RS-422 Input, 4 RS-422 Outputs, and GPI I/O on rear panel 9-pin D-Sub connectors. For table top or rack use (1/2 single rack space).

See GangWay 16 and GangWay 32 for larger configurations.
