This is Meike’s Sixth FF cine lens and it now joins the FF cine lens family. It covers an image circle of 45mm. It is available in either PL, Canon EF, Canon RF, Sony E, and Panasonic L mounts. The complete set includes 16mmT2.5,24mm,35mm,50mm,85mm,105mmT2.1,135mmT2.4. It has industry-standard 0.8mm pitch gears on the focus and aperture ring.The lens design of the Meike 16mm T2.5 FF-Prime consists of sixteen elements in eleven groups.The aperture mechanism consists of 11 aperture blades. The minimum focus distance is 30cm.
COMPATIBLE:

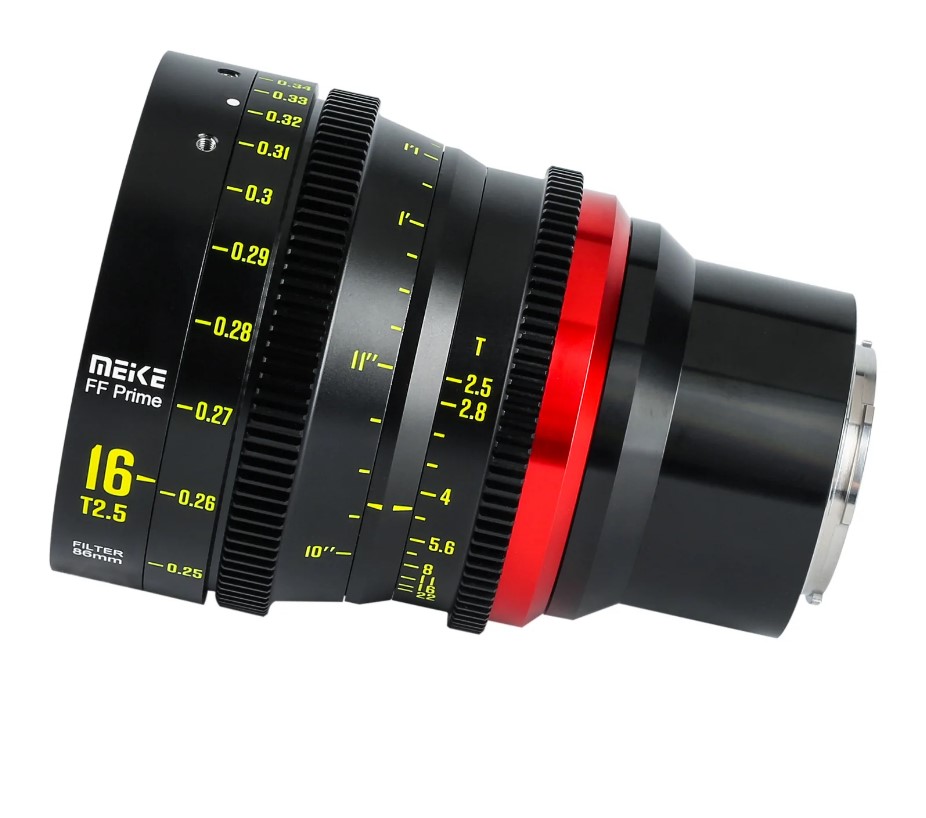

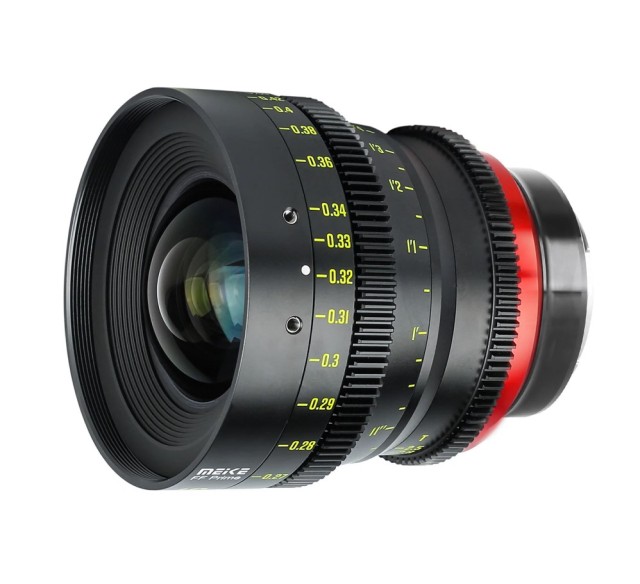

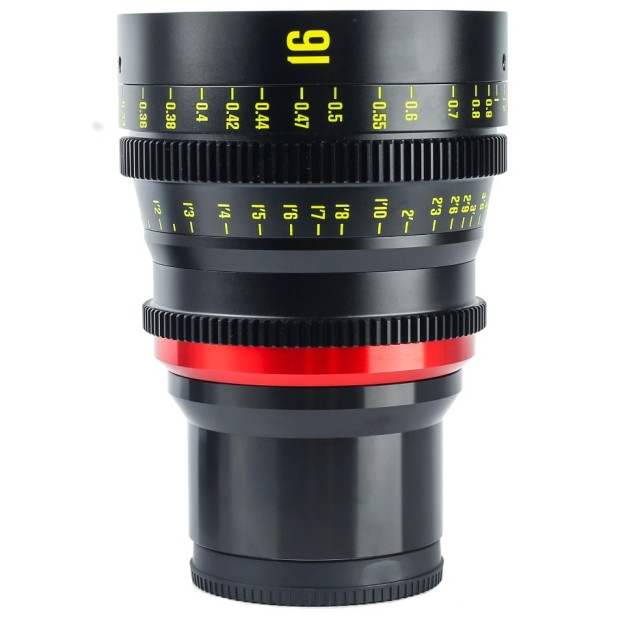

Meike MK-16mm T2.5 FF Prime RF Mount
Lens Mount: | PL/EF/RF/E/L |
Min Focal Dist: | 30cm |
Filter Thread: | ø86 |
Outer Diameter: | 90mm |
Image Circle: | 45mm |
Structure: | 16 Elements in 11 Groups |
Focal Length: | 16mm |
Aperture Range: | T2.5-T22 |
Iris Blades: | 11 |
Gear Mod: | M0.8 |
Focus Rotation: | 330 Degree |
Dimensions (Ø x L): PL: | ø89.6 × 101.9 |
EF(Canon): | ø89.6 × 110 |
RF(Canon): | ø89.6 × 133.9 |
E(Sony): | ø89.6 × 135.9 |
L(Panasonic): | ø89.6 × 133.9 |
Weight: | 1111~1185g |
FOV: |
on FF cameras: | on APS-C camera: |
Diagonal:107.3° Horizontal: 96° Vertical: 72.2° |
Diagonal:81.5° Horizontal: 70.8° Vertical: 50.4° |
Manufacturer: | Meike |
Category: | Lenses |
Bayonet | PL |
Lens Type | Fixed Glass |
Lens suitable for | Full frame |
Aperture (f) | 2.5 |
Focal length | 16mm |
Series | Meike FF-Prime |
