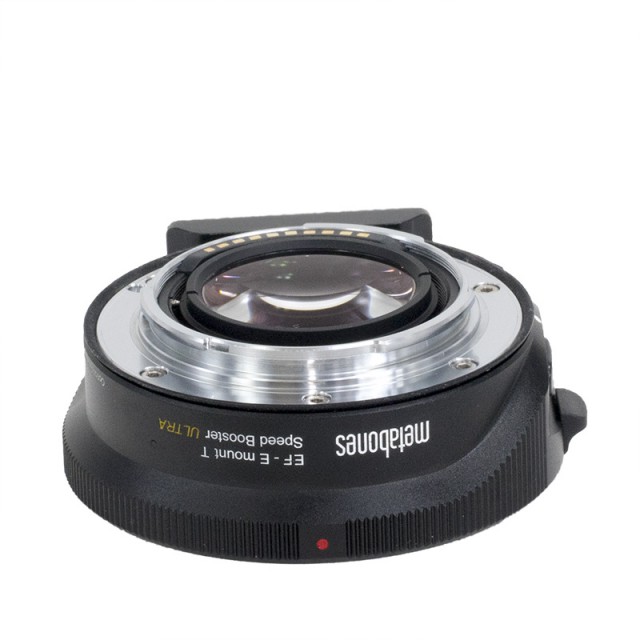

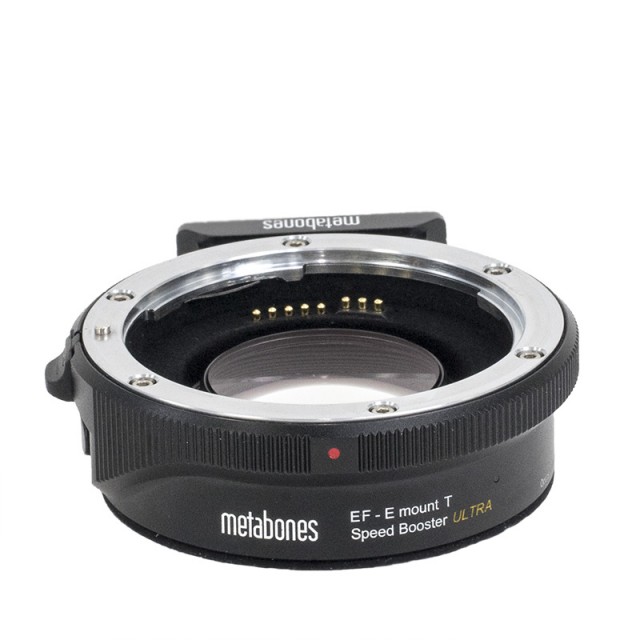

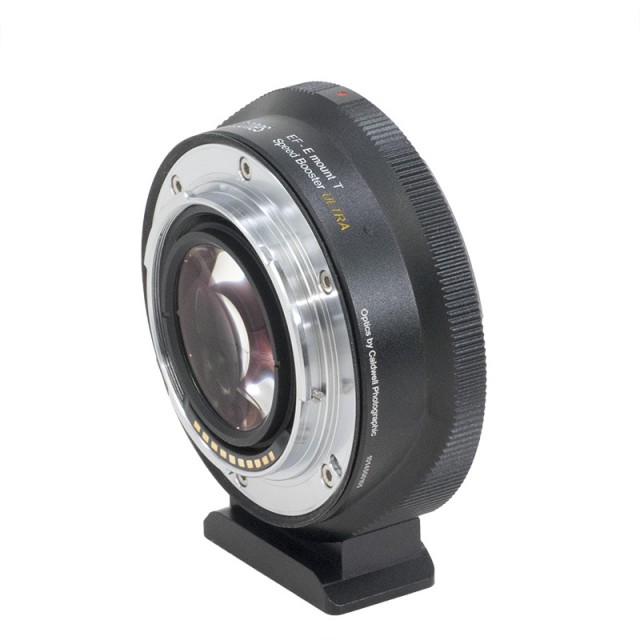

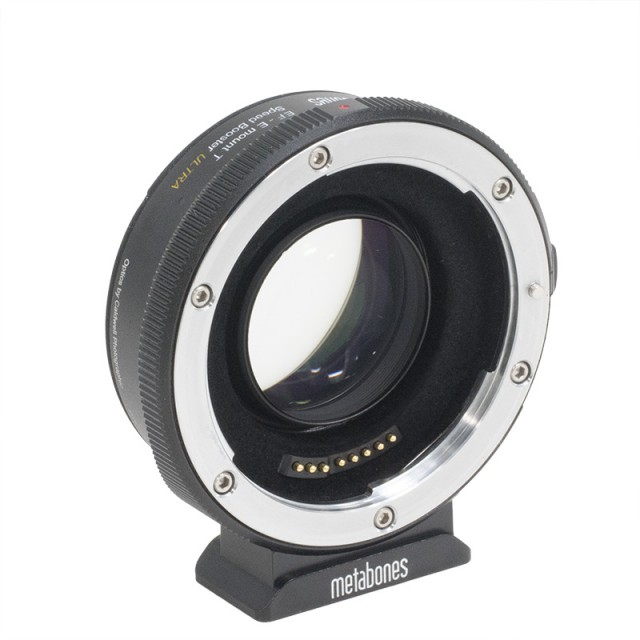

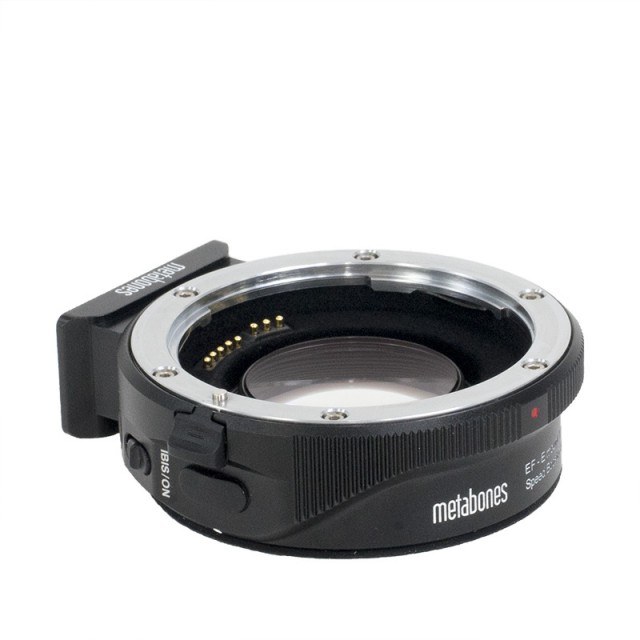

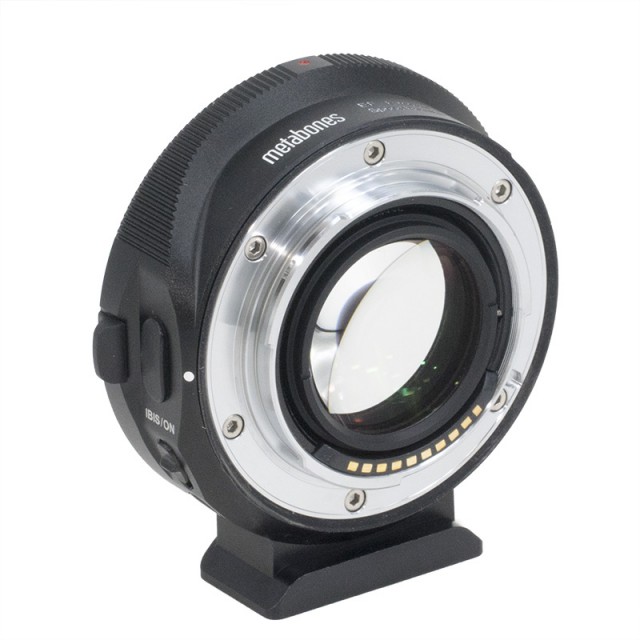

The new Smart Adapter EF-E Mount "CINE Speed Booster" allows the use of Canon EF/EF-S/DX lenses on Sony E-mount cameras such as the PXW-FS7M2, PXW-FS5, PXW-FS7, NEX-FS700, NEX-FS100 or A7SII, A7RII, A7II, A7S, A7R, A7. The adapter has a very robust design for even demanding field shooting and features a lock for maximum security when attaching EF lenses. The Speed Booster optical system increases the lenses' luminosity by 1 aperture number, improving their transfer function and reducing the focal length.
Tested Camera Bodies:
- A9, A7R IV, A7R III, A7R II, A7R, A7S II, A7S, A7III, A7II, A7
- A6500, A6400, A6300, A6000, A5000
- PXW-FS7M2, PXW-FS5, PXW-FS7, NEX-FS700, NEX-FS100
- VENICE
- NEX-EA50, NEX-VG900, NEX-VG30, NEX-VG20, NEX-VG10
- NEX-7, NEX-6, NEX-5R, NEX-5N, NEX-5, NEX-C3, NEX-3
Lens compatibility chart
Fast AF on all E-mount cameras. Max 10fps AF-C with A9 (Green Mode) and A7III / A7RIV (Advanced Mode) |
Phase-detect AF on A9, A7RIV, A7III, A7RIII, A7RII, A7II, A6500, A6400 and A6300 only. On other cameras, may not be able to contrast-detect AF accurately if at all. Max 3fps with A7III. |
Canon EF8-15mm f/4L USM Fisheye*
Canon EF17-35mm f/2.8L USM
Canon EF24-70mm f/2.8L II USM*
Canon EF24-105mm f/4L IS USM (Mark I)
Canon EF28-80mm f/3.5-5.6 III USM
Canon EF28-80mm f/3.5-5.6 II
Canon EF40mm f/2.8 STM*
Canon EF50mm f/1.2L USM
Canon EF50mm f/1.4 USM (1993)
Canon EF50mm f/1.8 STM*
Canon EF70-200mm f/2.8L IS II USM*
Canon EF70-200mm f/4L IS II USM*
Canon EF70-200mm f/4L USM (not IS)
Canon EF70-300mm f/4-5.6L IS USM*
Canon EF85mm f/1.2L II USM
Canon EF100mm f/2.8L IS USM Macro*
Canon EF100mm f/2.8 USM Macro (2000)
Canon EF100-400mm f/4.5-5.6L IS II USM*
Canon EF135mm f/2L USM
Canon EF200mm f/2.8L II USM
Canon EF300mm f/2.8L IS II USM*
Canon EF300mm f/4L IS USM
Canon EF400mm f/5.6L USM
Canon EF Extender 1.4x (all versions)
Canon EF Extender 2x (all versions)
Kenko Teleplus Pro 300 1.4x (note 1)
Kenko Teleplus Pro 300 2x (note 1)
Sigma 24-105mm f/4 DG OS HSM Art 013
Sigma 50-500mm f/4.5-6.3 DG OS HSM
Sigma 135mm f/1.8 DG HSM Art 017
Tamron 15-30mm f/2.8 VC USD A012 (G1)
Tamron SP 24-70mm f/2.8 VC USD A007 (G1)
Tamron SP 45mm f/1.8 VC USD F013*
Tamron SP 70-300mm f/4-5.6 VC USD A005 |
Canon EF24-70mm f/2.8L USM (Mark I)
Canon EF28-70mm f/3.5-4.5 II (1988)
Canon EF28-135mm f/3.5-5.6 IS USM
Canon EF35mm f/1.4L USM (Mark I)
Canon EF50mm f/1.8 II (1990)
Canon EF100mm f/2 USM
Canon EF100-400mm f/4.5-5.6L IS USM (Mark I)
Contax N Vario Sonnar 17-35mm f/2.8
Contax N Planar 50mm f/1.4
Contax N Vario Sonnar 70-200mm f/3.5-4.5
Contax N Planar 85mm f/1.4
Sigma 50mm f/1.4 DG HSM (not Art)
Tamron 28-300mm f/3.5-6.3 XR Di VC LD Aspherical [IF] MACRO A20
Tamron 28-300mm f/3.5-6.3 XR Di LD Aspherical [IF] MACRO A06
Tamron SP 150-600mm f/5-6.3 VC USD A011 (G1)* |
Phase-detect AF on A9, A7RIV, A7III, A7RIII, A7RII, A7II, A6500, A6400, A6300 and A6100. Not known if other cameras autofocus satisfactorily using contrast-detection, and it is not known if the maximum AF-C drive speed of 10fps with A7III & A7RIV can be achieved or not. |
Manual focus only |
Canon EF 11-24mm f/4L USM
Canon EF 14mm f/2.8L II USM
Canon EF 16-35mm f/2.8L USM
Canon EF 16-35mm f/4L IS USM
Canon EF 20-35mm f/3.5-4.5 USM
Canon EF 24mm f/1.4L USM
Canon EF 24-70mm f/4L IS USM
Canon EF 24-105mm f/4L IS II USM
Canon EF 28-300mm f/3.5-5.6L USM
Canon EF 35mm f/1.4L II USM
Canon EF 35mm f/2L IS USM
Canon EF 35-350mm f/3.5-5.6L USM
Canon EF 70-200mm f/2.8L IS USM (Mark I)
Canon EF 70-200mm f/2.8L USM (non-IS)
Canon EF 70-200mm f/4L IS USM (Mark I)
Canon EF 75-300mm f/4-5.6 IS USM
Canon EF 85mm f/1.8 USM
Canon EF 180mm f/3.5L Macro USM
Canon EF 400mm f/2.8L IS USM (Mark I)
Canon EF 500mm f/4L IS USM (Mark I)
Sigma 12-24mm f/4.5-5.6 (Ver I)
Sigma 20mm f/1.4 DG HSM Art
Sigma 24mm f/1.4 DG HSM Art
Sigma 35mm f/1.4 DG HSM Art
Sigma 50mm f/1.4 Art
Sigma 70-200mm F2.8 APO EX DG OS HSM
Sigma 85mm f/1.4 EX DG HSM
Sigma 150mm f/2.8 Macro
Sigma 150-600mm f/5-6.3 OS HSM Contemporary
Tamron SP 70-200mm f/2.8 Di VC USD A009 (G1)*
Tamron 70-300mm f/4-5.6 (not VC)
Tamron SP 90mm f/2.8 Macro |
Samyang 35/1.4
Zeiss CP.2 25mm/T2.9
Zeiss CP.2 100mm/T2.1
Zeiss ZE Distagon 15/2.8
Zeiss ZE Distagon 18/3.5
Zeiss ZE Distagon 21/2.8
Zeiss ZE Distagon 25/2.8
Zeiss ZE Distagon 35/2
Zeiss ZE Planar 50/1.4
Zeiss ZE Makro-Planar 50/2
Zeiss ZE Planar 85/1.4
Zeiss ZE Makro-Planar 100/2 |
Not supported |
Focus confirmation "chip" (e.g. Dandelion)
Tokina opera 50mm f/1.4 FF (note 2)
|
Notes :
- Lenses marked with an asterisk support smooth iris.
- Sony NEX cameras cannot display aperture values beyond f/1.0. If a f/1.2 Canon EF lens is used with Speed Booster ULTRA the resulting aperture is f/0.9 but the camera body displays the original aperture f/1.2 to the camera body. i.e, lenses slower than f/1.4 report boosted aperture to camera body; lenses at or faster than f/1.4 report original aperture to camera body. (with firmware later than V0.38)
- Some improperly-made M42 screw mount adapters may short the electronic contacts of the Speed Booster ULTRA and cause damage to the Speed Booster ULTRA and/or camera body.
- Many manual focus lenses (e.g. OM 28/2.8, OM 50/1.8, Leica R 15/3.5) have rear protrusions (spikes, levers, other appendages) which would damage the optics and/or housing of Speed Booster ULTRA They need to be modified before they can be safely used on Speed Booster Check and make sure there are no rear protrusions from the adapter/lens combination before using on Speed Booster. Scratches and damages caused by rear protrusions on Speed Booster are not covered by warranty.
- This Speed Booster ULTRA is NOT fully compatible with full-frame Sony A7 series. When Speed Booster® ULTRA is used with Sony A7 series, the camera will turn on the "APS-C Size Capture" mode automatically.
- Cannot be used due to unusually high current requirement.
List of manual focus lenses which REQUIRE MODIFICATION to be used on Speed Booster ULTRA
Many manual focus lenses have rear protrusions (spikes, levers, other appendages) which would damage the optics and/or housing of Speed Booster ULTRA. They need to be modified before they can be safely used on Speed Booster ULTRA. Check and make sure there are no rear protrusions from the adapter/lens combination before using on Speed Booster ULTRA. Scratches and damages caused by rear protrusions or by poor quality adapters are not covered by warranty. The following is an incomplete list of lenses known to be incompatible.
Contax/Yashica |
Distagon 3,5/15mm
Leica R
Super-Elmar-R 15mm
Elmarit R 28/2.8
Elmarit R 35/2.8
Summicron R 50/2 |
Nikon F |
20/2.8 AI-S
Olympus OM
OM 18/3.5
OM 21/2
OM 21/3.5
OM 28/2.8
OM 50/1.8 |
Pentax K
Every Pentax K-mount lens has a protruding fin and an aperture lever. It does NOT fit.
|

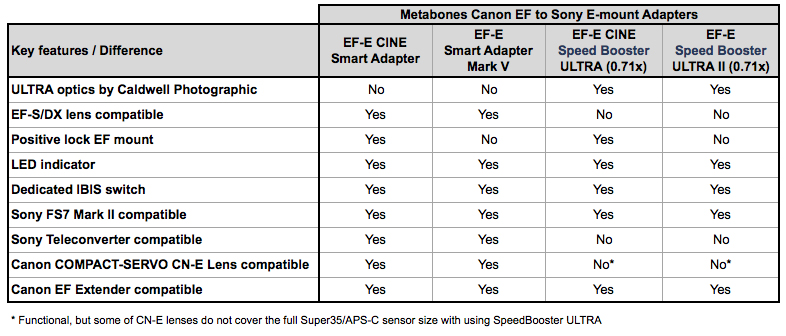

EF-E Product Matrix
Note
