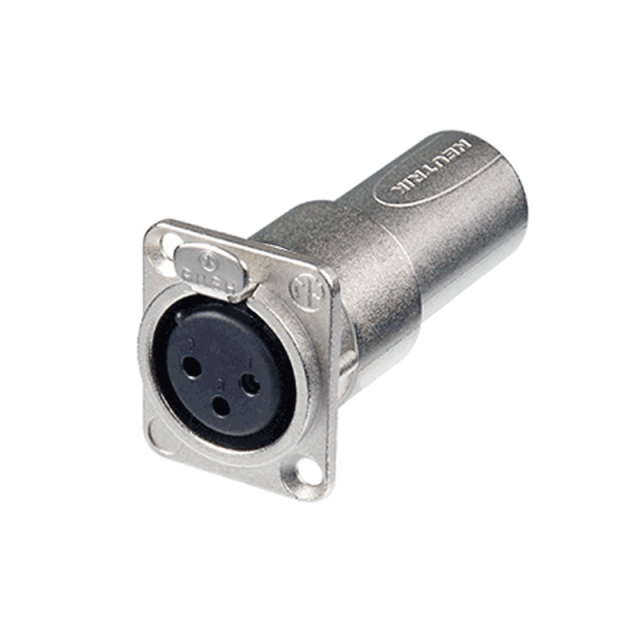

Neutrik NA3FDM
SKU: NA3FDM
Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount
11 € with VAT
9.09 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock 2 pcs
Praha 2 pcs, Bratislava > 5 pcs
Praha 2 pcs, Bratislava > 5 pcs
Top accessories for Neutrik NA3FDM
Neutrik NC3MXX
3 pole male cable connector with Nickel housing and silver contacts. The next generation
4.5 €
To be sent > 5 pcs
Neutrik NC3FXX
NC3FXX is a 3 pole female cable connector with Nickel housing and silver contacts.
5.3 €
To be sent > 5 pcs
Canare L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 1m, BLK
Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
17 €
In stock 5 pcs
Canare L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 2m, BLK
Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
20 €
In stock 4 pcs
Canare L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 10m, BLK
Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
37 €
In stock > 5 pcs
Canare L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 5m, BLK
Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
26 €
To be sent > 5 pcs
Canare L-2T2S microphone cable 6,0mm, XLR (M) / JACK TRS 6,3mm 3m, BLK
Canare XLR-M to JACK 6,3mm Black je špičkový symetrický prepojovací audio kábel.
22 €
In stock 5 pcs
Neutrik NC3FRX
Neutrik NC3FRX -3 pole female cable connector with black metal housing and gold
11 €
In stock 5 pcs
Product description
Product description
Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount
Neutrik NA3FDM - XLR 3 pole female-male feedthrough adapter for panel mount
Features & Benefits
- 3 pole XLR feedtrugh adapter
- D - flange chassis mount
- Male to female and vice versa
- Utilizes XX-components
Electrical
- Capacitance between contacts -? 4 pF
- Contact resistance - ? 5 m? (inner)
- Dielectric strength - 1,5 kVdc
- Insulation resistance - > 2 G? (initial)
- Rated current per contact - 16 A
- Rated voltage - < 50 V
Mechanical
Insertion force - ? 20 N
Withdrawal force - ? 20 N
Lifetime - > 1000 mating cycles
Wiresize - max. 2.5 mm?
Wiresize - max. 14 AWG
Wiring - Solder contacts
Locking device - Latch lock
Chassis shape - D
Material
Contact plating - 2 µm Ag over 2 µm Ni
Insert - Polyamide (PA 6.6 30 % GR)
Locking element - Steel Ck67
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Environmental
Flammability - UL 94 HB
Standard compliance - IEC 61076-2-103
Protection class - IP 40
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
Parameters
Parameters
| Manufacturer: | Neutrik |
| Category: | Audio connectors |
Main parameters
| Type | XLR panel |
| Number of poles | 3 |
| Colour | Nickel |
Other parameters
| Version | On the panel |
| Version | Coupling/Adapter |
| Version | Male |
| Version | Females |
