Neutrik NA3MDF

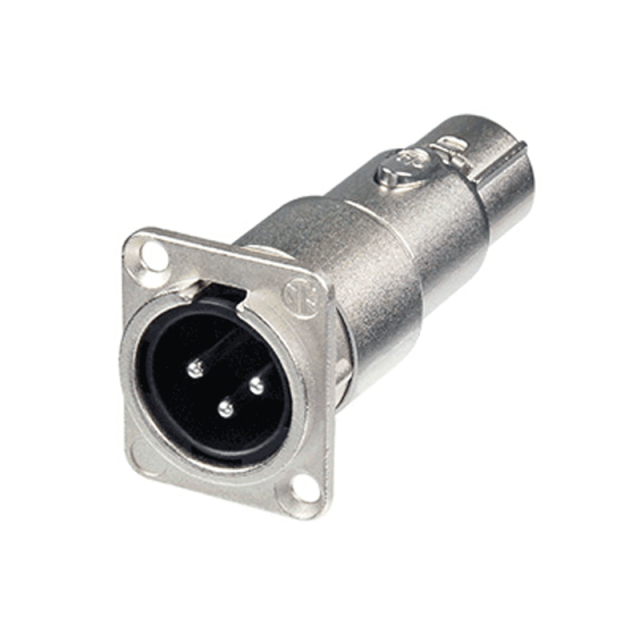

Neutrik NA3MDF - XLR 3 pole female-male feedthrough adapter for panel mount

More information

11 € with VAT 9.09 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Today
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs

Show all accessories

Product description

Product description

Neutrik NA3MDF - XLR 3 pole female-male feedthrough adapter for panel mount



Neutrik NA3MDF - XLR 3 pole female-male feedthrough adapter for panel mount

Features & Benefits
  • 3 pole XLR feedtrugh adapter
  • D - flange chassis mount
  • Female to Male and vice versa
  • Utilizes XX-components
Electrical
  • Capacitance between contacts -? 4 pF
  • Contact resistance - ? 5 m? (inner)
  • Dielectric strength - 1,5 kVdc
  • Insulation resistance - > 2 G? (initial)
  • Rated current per contact - 16 A
  • Rated voltage - < 50 V

Mechanical
  • Insertion force - ? 20 N
  • Withdrawal force - ? 20 N
  • Lifetime - > 1000 mating cycles
  • Wiresize - max. 2.5 mm?
  • Wiresize - max. 14 AWG
  • Wiring - Solder contacts
  • Locking device - Latch lock
  • Chassis shape - D

Material
  • Contact plating - 2 µm Ag over 2 µm Ni
  • Insert - Polyamide (PA 6.6 30 % GR)
  • Locking element - Steel Ck67
  • Shell - Zinc diecast (ZnAl4Cu1)
  • Shell plating - Nickel

Environmental
  • Flammability - UL 94 HB
  • Standard compliance - IEC 61076-2-103
  • Protection class - IP 40
  • Solderability - Complies with IEC 68-2-20
  • Temperature range - -30 °C to +80 °C
Parameters

Parameters

Manufacturer: Neutrik
Category: Audio connectors

Main parameters

TypeXLR panel
Number of poles3
ColourNickel

Other parameters

VersionOn the panel
VersionCoupling/Adapter
VersionMale
VersionFemales
