Neutrik NC3FRX

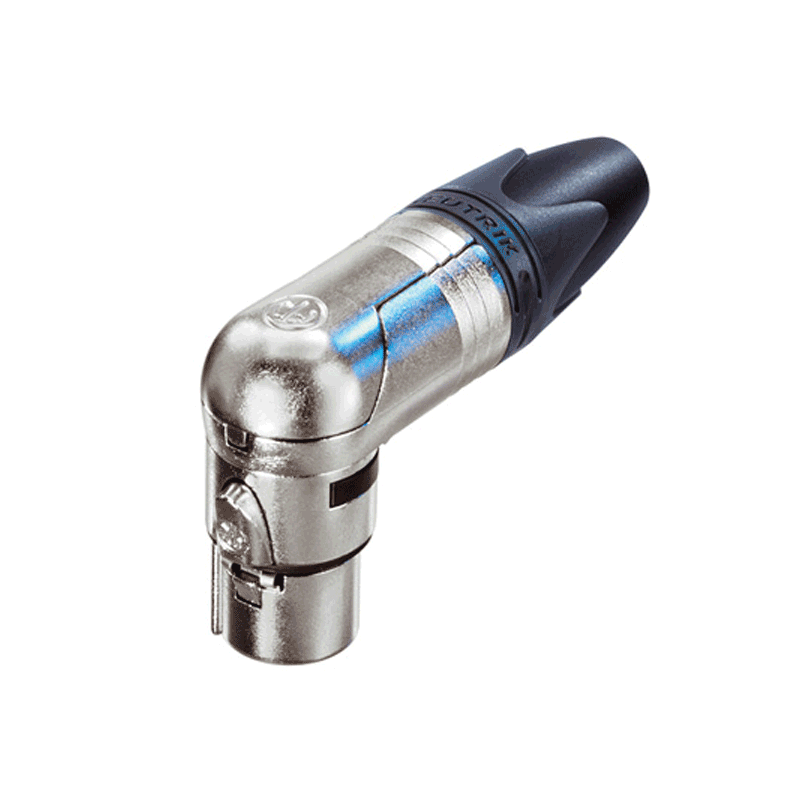

Neutrik NC3FRX -pole female cable connector with black metal housing and gold contacts.

More information

11 € with VAT 9.09 € without VAT
-+
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs

Show all accessories

Product description

Product description

Neutrik NC3FRX -pole female cable connector with black metal housing and gold contacts.

The RX series is an orthogonal version of the XX series connectors. A new generation of the globally recognized XLR cable connector standard. The successor to the X Series offers several new features, more reliable, easier installation and better contact and cable clamp integrity.

Technical Specifications:
  • Capacitance
  • Contact resistance: 3 mΩ
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 GΩ
  • Rated current per 1 contact: 16 A
  • Rated voltage:50 V
  • Cable diameter:3.5 - 8.0 mm
  • Force required to connect connectors: 20 N
  • Force required to disconnect connectors: 20 N
  • Lifetime: > 1000 mating cycles
  • Conductor: max. 2.5 mm²
  • , max. 14 AWG
  • Soldering
  • Cable cap: polyurethane
  • Contact surface treatment: 0.2 µm Ag layer
  • Contact Material: Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock: Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body: Zinc diecast (ZnAl4Cu1)
  • Connector body finish: Nickel
Parameters

Parameters

Manufacturer: Neutrik
Category: Configurator - connectors
