Neutrik NC3FXX-B

SKU: NC3FXX-B

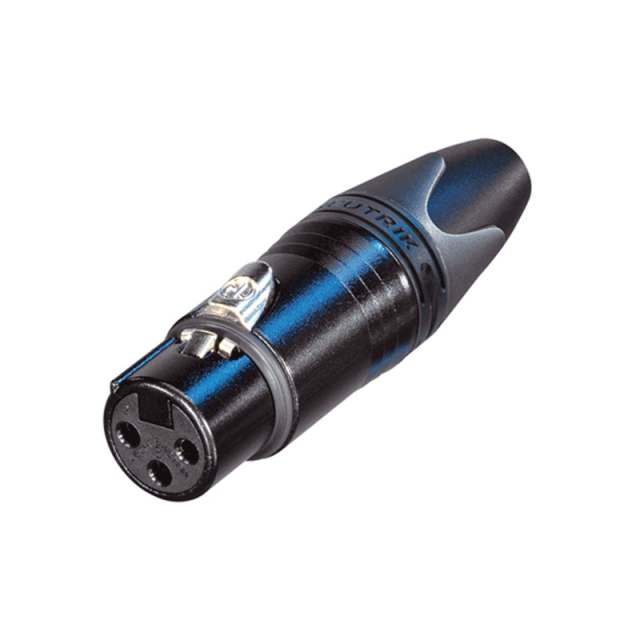

Neutrik NC3FXX-B -3 pole female cable connector with black metal housing and gold contacts.

More information

6.6 € with VAT 5.45 € without VAT
Add to Compare Price history
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs, Budapest 5 pcs
SKU:
NC3FXX-B
Add to Compare Price history

Neutrik NC3MXX-B

In stock > 5 pcs5.3 €without VAT 4.38 €

Neutrik NC3FRX

In stock > 5 pcs11 €without VAT 9.09 €

Neutrik NC3MRX-B

In stock > 5 pcs12 €without VAT 9.92 €

Neutrik NC3FXX

To be sent > 5 pcs5.3 €without VAT 4.38 €

Neutrik NC3MXX

To be sent > 5 pcs4.5 €without VAT 3.72 €

Top accessories for Neutrik NC3FXX-B

Neutrik XXR-2 red

Plastic piece for marking Neutrik XLR connectors of the "XX" series.
0.3 €
In stock 3 pcs

Canare L-2E5

Canare L-2E5 is our Miniature version of L-2T2S when small size and light weight
1.7 €
In stock 320 m

Canare L-2T2S

Canare L-2T2S is our standard diameter 2-conductor microphone cable for general purpose
2.1 €
In stock 340 m

Neutrik XXR-9 white

XXR-9 white
0.3 €
In stock > 5 pcs

Neutrik XXR-4 yellow

XXR-4 yellow
0.3 €
In stock > 5 pcs

Neutrik XXR-6 blue

XXR-6 blue
0.3 €
In stock > 5 pcs

Canare DMX203 cable

Kábel Canare DMX203
2.8 €
To be sent 203 m

Neutrik XXR-1 brown

XXR-1 brown
0.3 €
To be sent > 5 pcs

Neutrik XXR-8 grey

XXR-8 grey
0.3 €
To be sent > 5 pcs

Neutrik XXR-3 orange

XXR-3 orange
0.3 €
In stock > 5 pcs

Show all accessories

Product description

Product description

Neutrik NC3FXX-B -3 pole female cable connector with black metal housing and gold contacts.

The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly and better contact and cable clamp integrity.

Technical Specifications:

  • Capacitance:≤ 4 pF
  • Contact resistance:≤ 3 mΩ
  • Rated voltage 1min:1.5 kVdc
  • Insulation resistance:> 10 GΩ
  • Rated current per 1 contact:16 A
  • Rated voltage:50 V
  • Cable diameter: 3.5 - 8.0 mm
  • Force required to connect connectors:≤ 20 N
  • Force required to disconnect connectors:≤ 20 N
  • Lifetime:> 1000 connection cycles
  • Conductor: max. 2.5 mm², max. 14 AWG
  • Soldering
  • Cable cap:polyurethane
  • Contact surface treatment:0.2 µm Au layer on 2 µm Ni
  • Contact material:Bronze (CuSn8)
  • Polyamide (PA 6.6 30% GR)
  • Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
  • Connector body:Zinc diecast (ZnAl4Cu1)
  • Connector body finish:black chrome
Parameters

Parameters

Manufacturer: Neutrik
Category: Configurator - connectors
