Neutrik NC3MXX-B
SKU: NC3MXX-B

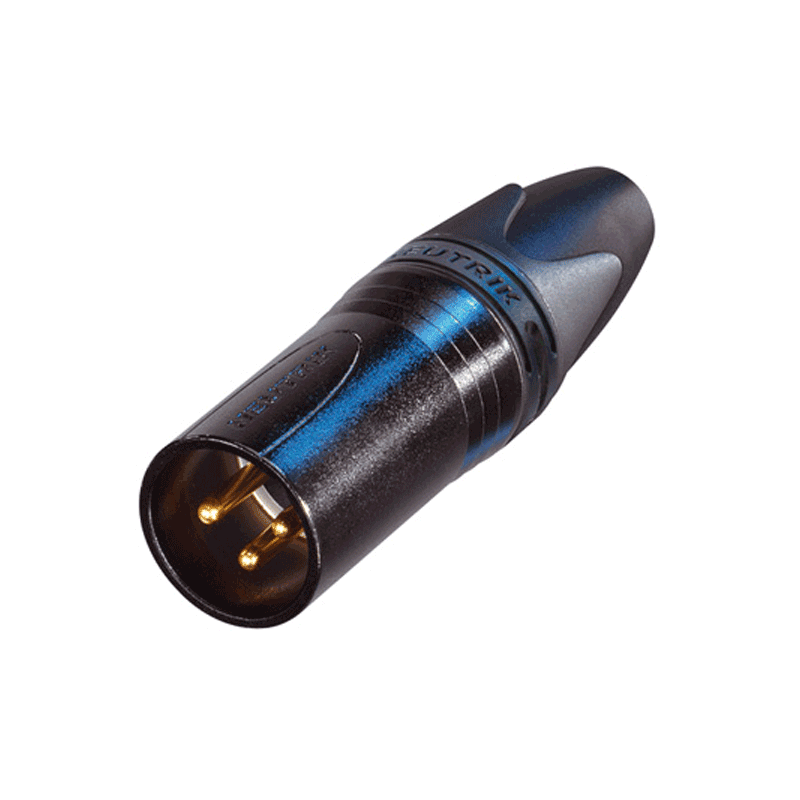

Neutrik NC3MXX-B 3 pole male cable connector with black metal housing and gold contacts.
5.3 € with VAT
4.38 € without VAT
Personal pickup: Tomorrow from 09:00
Shipment day: Tomorrow
Shipment day: Tomorrow
In stock > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs, Budapest > 5 pcs
Praha > 5 pcs, Bratislava > 5 pcs, Budapest > 5 pcs
Neutrik NC3FXX-B
In stock > 5 pcs6.6 €without VAT 5.45 €
Neutrik NC3FRX
In stock > 5 pcs11 €without VAT 9.09 €
Neutrik NC3FRX-B
In stock > 5 pcs14 €without VAT 11.57 €
Neutrik NC3MRX-B
In stock > 5 pcs12 €without VAT 9.92 €
Neutrik NC3FXX
To be sent > 5 pcs5.3 €without VAT 4.38 €
Neutrik NC3MXX
To be sent > 5 pcs4.5 €without VAT 3.72 €
Neutrik NC3MRX
In stock > 5 pcs9.2 €without VAT 7.6 €Top accessories for Neutrik NC3MXX-B
Canare L-2T2S
Canare L-2T2S is our standard diameter 2-conductor microphone cable for general purpose
2.1 €
In stock 340 m
Canare L-2E5
Canare L-2E5 is our Miniature version of L-2T2S when small size and light weight
1.7 €
In stock 349 m
Neutrik XXR-2 red
Plastic piece for marking Neutrik XLR connectors of the "XX" series.
0.3 €
In stock > 5 pcs
Product description
Product description
Neutrik NC3MXX-B 3 pole male cable connector with black metal housing and gold contacts.
The new generation of the globally recognized XLR cable connector standard. The successor to the X series offers several new features, more reliable, easier assembly and better contact and cable clamp integrity.
Technical Specifications:
- Capacitance:≤ 4 pF
- Contact resistance:≤ 3 mΩ
- Rated voltage 1min:1.5 kVdc
- Insulation resistance:> 10 GΩ
- Rated current per 1 contact:16 A
- Rated voltage:50 V
- Cable diameter: 3.5 - 8.0 mm
- Force required to connect connectors:≤ 20 N
- Force required to disconnect connectors:≤ 20 N
- Lifetime:> 1000 connection cycles
- Conductor: max. 2.5 mm², max. 14 AWG
- Soldering
- Cable cap:polyurethane
- Contact surface treatment:0.2 µm Au layer on 2 µm Ni
- Contact material:Bronze (CuSn8)
- Polyamide (PA 6.6 30% GR)
- Lock:Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
- Connector body:Zinc diecast (ZnAl4Cu1)
- Connector body finish:black chrome
Parameters
Parameters
| Manufacturer: | Neutrik |
| Category: | Configurator - connectors |
Main parameters
| Type | XLR |
| Number of poles | 3 |
| Colour | Black |
Other parameters
| Version | On the cable |
| Version | Soldering |
| Version | Male |
