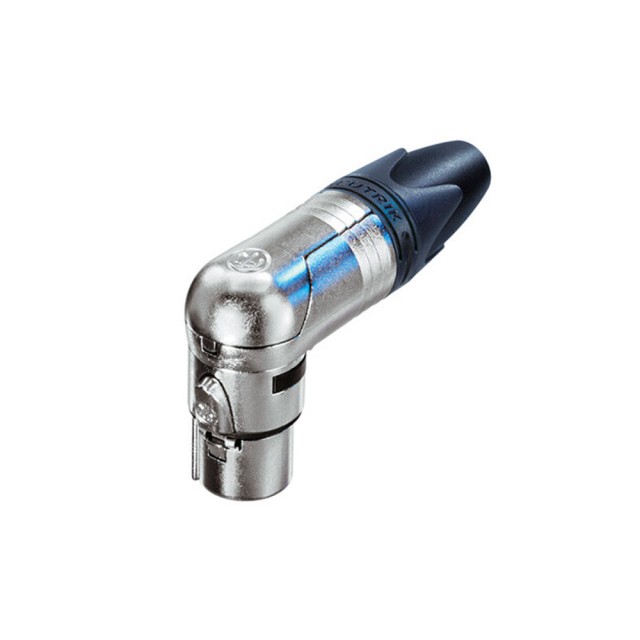

Neutrik NC4FRX - 4 pole right angle female cable connector, nickel housing, silver contacts

The RX Series is the right angle version of the XX cable connector series. The successor of the RC series offers several new features which make it more reliable, easier to assemble and improves contact integrity as well cable strain relief.

Features & Benefits

• Extra slim right-angle connector
• 5 selectable cable outlet positions
• Unique cage design of female contact for low contact resistance and high integrity
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Female connector with improved solid metal latch which is larger and easier to handle
• Additional ground spring contacts for better shell ground continuity
• Improved chuck type strain relief provides higher pull-out force and makes assembly easier and faster
• Boot with polyurethane gland gives high protection to cable bending stresses
• Coloured rings and boots available for coding or identification
• Sleek and ergonomic design - valuable and handy

Technical Information

Product
Title - NC4FRX
Connection Type - XLR
Gender - female
Electrical
Capacitance between contacts - ≤ 7 pF
Contact resistance - ≤ 3 mΩ
Dielectric strength - 1,5 kVdc
Insulation resistance - > 2 GΩ (initial)
Rated current per contact - 10 A
Rated voltage - < 50 V
Mechanical
Cable O.D. - 3.5 - 8.0 mm
Insertion force - ≤ 20 N
Withdrawal force - ≤ 20 N
Lifetime - > 1000 mating cycles
Wiresize - max. 1.5 mm²
Wiresize - max. 16 AWG
Wiring - Solder contacts
Locking device - Latch lock
Material
Boot - Polyurethan
Contact plating - 2 µm Ag
Contacts - Brass (CuZn39Pb3)
Insert - Polyamide (PA66)
Locking element - Zinc diecast (ZnAl4Cu1) / Ck 67 (spring)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)
Environmental
Flammability - UL 94 V-0
Standard compliance - IEC 61076-2-103
Protection class - IP 40
Solderability - Complies with IEC 68-2-20
Temperature range - -30 °C to +80 °C
