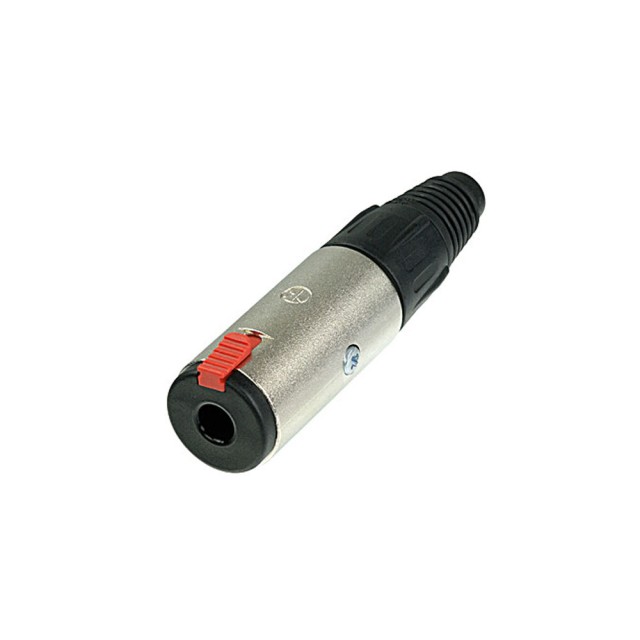

Neutrik NJ3FC6

Professional locking 1/4" cable jack for secure in-line connections. Nickel housing, silver contacts, excellent cable protection. The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically…

More information

Call us for pricing information
Availability
on request

Show all accessories

Product description

Product description

Professional locking 1/4" cable jack for secure in-line connections. Nickel housing, silver contacts, excellent cable protection. The 3 pole phone cable jack in-line version provides stable and secure connections where accidental disconnect or shock and vibration may occur. It latches with standard A-gauge mono or stereo plugs. Plug locks-in automatically when mating and unlocks only by pressing red release tab.

Features & Benefits

  • Securely locking cable jack
  • Mates with all mono and stereo plugs specified acc. EIA RS-453 (A-gauge)
  • Metal shell makes it extremely robust and reliable
  • Neutrik cable retention and boot as on XLR connectors
  • Solder terminals
  • Colored boots available in 10 colors for color coding and marking

Technical Information

Product
Title - NJ3FC6
Connection Type - Jack
Gender - female

Electrical
Contact resistance - < 6 mΩ (initial)
Dielectric strength - 1 kVdc
Insulation resistance - ≥ 1 GΩ @ 500 V dc
Rated current per contact - 10 A

Mechanical
Cable O.D. - 3.5 - 8.0 mm
Insertion force - < 30 N
Withdrawal force - < 20 N
Lifetime - > 10000 mating cycles
Locking force - > 80 N
Wiresize - 1 mm²
Wiresize - 18 AWG
Wiring - Solder contacts
Locking device - Latch lock

Material
Boot - Polyurethan
Contact plating - 2 µm Ag
Contacts - Brass (CuZn37) (Ground)
Insert - Polyamide (PA 6.6 30 % GR)
Shell - Zinc diecast (ZnAl4Cu1)
Shell plating - Nickel
Strain relief - Polyacetal (POM)

Environmental
Standard compliance - EIA RS 453, IEC 60603-11
Solderability - Complies with IEC 68-2-20
Temperature range - -25 °C to +70 °C





Parameters

Parameters

Manufacturer: Neutrik
Category: Audio connectors

Main parameters

TypeJack 6.3mm
Number of poles3
ColourNickel

Other parameters

VersionOn the cable
VersionSoldering
VersionFemales
