NimbleTech Cast Go

The NimbleTech Cast Go is a wireless presentation system designed for seamless screen sharing. It includes a QuattroPod Lite Receiver (LR10) and Transmitter (LT10) for high-quality 4K casting with low latency over a 5GHz Wi-Fi network. Ideal for meetings and presentations, it supports multiple resolutions and features HDCP protection for secure content streaming.

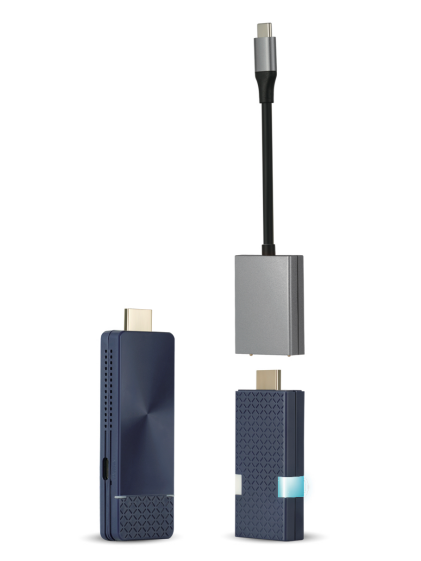

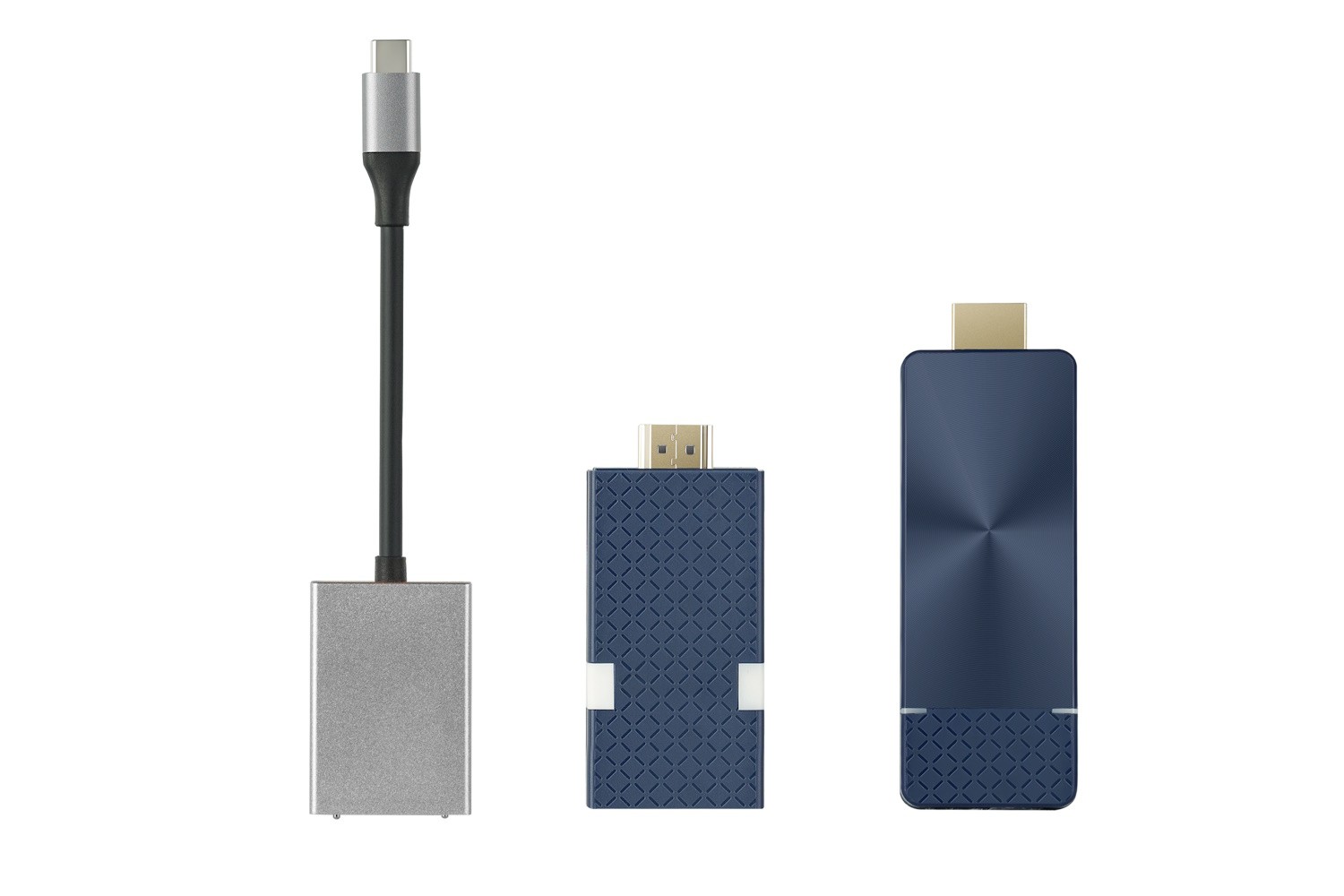

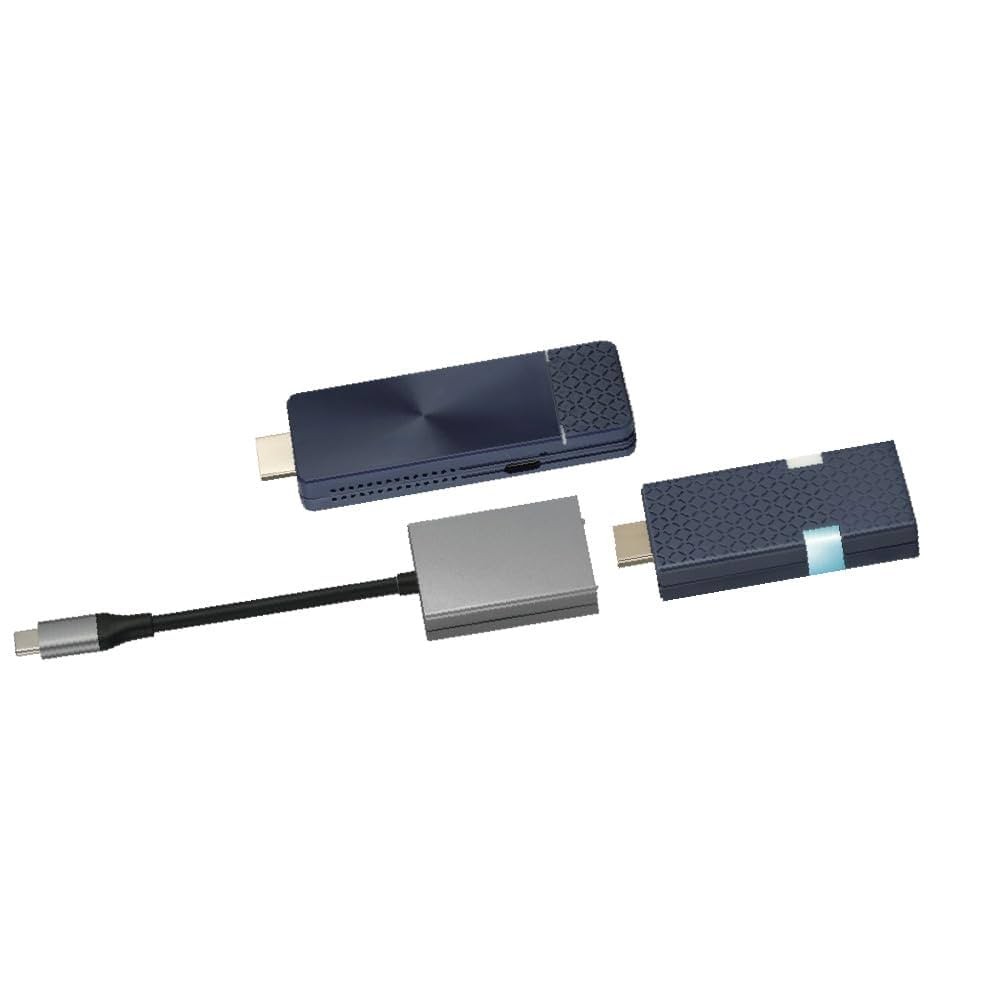

The NimbleTech Cast Go is a powerful wireless screen-sharing solution that enhances collaboration in meetings, classrooms, and professional settings. The package includes the QuattroPod Lite Receiver (LR10) and Transmitter (LT10), along with essential accessories for a hassle-free setup.

The LR10 receiver features a dual-core RISC CPU and supports output resolutions up to 4K UHD (2160p@30Hz), ensuring crisp and clear visuals. It operates on a 5GHz Wi-Fi network with a maximum bandwidth of 866Mbps for a stable and responsive casting experience. The compact design includes an HDMI output, a reset button, and LED indicators for power and status.

The LT10 transmitter is equipped with a high-performance RISC CPU and supports various input resolutions, including Full HD (1920x1080@60Hz) and 4K UHD (3840x2160@30Hz). It features HDMI and USB-C inputs (through an adapter) for versatile connectivity with different devices. The 5GHz Wi-Fi module ensures smooth and lag-free transmission, while HDCP protection maintains secure content streaming.

With intuitive plug-and-play functionality, one-button screen mirroring, and robust wireless performance, the NimbleTech Cast Go is the perfect tool for effortless presentations and collaborations.

Key Features:

• Wireless 4K UHD screen sharing over a 5GHz Wi-Fi network
• Includes QuattroPod Lite Receiver (LR10) and Transmitter (LT10)
• HDMI and USB-C input compatibility (LT10)
• HDCP 1.4 and 2.x support for secure content transmission
• Low-latency streaming with stable connectivity (Wi-Fi 802.11ac/n)
• LED indicators for power and status monitoring
• Compact and lightweight design for easy portability
• Plug-and-play functionality with no software installation required

Specifications:

Receiver (LR10):

• CPU: Dual Core RISC
• Output Resolution: 720p@50/60Hz, 1080p@50/60Hz, 2160p@24/30Hz
• I/O: HDMI Out (HDMI 1.4), Reset Button, DC 5V
• Wi-Fi: 802.11ac 2T2R, max. bandwidth 866Mbps
• Wi-Fi Frequency: 5.150GHz - 5.825GHz
• Power Supply: DC 5V, 1.5A max.
• Power Consumption: Standby ~5W, Casting ~7.5W
• Operating Temperature: 0°C to 40°C

Transmitter (LT10):

• CPU: High Performance RISC
• Input Resolution: Supports VESA and CEA resolutions up to 4K UHD (3840x2160@30Hz)
• I/O: HDMI In, USB-C In (via adapter), DC-in, Mirror Control Button, Reset Button
• Wi-Fi: 802.11n 1T1R, max. bandwidth 433Mbps
• Wi-Fi Frequency: 5.150GHz - 5.825GHz
• Power Supply: DC 5V, 0.9A
• Power Consumption: Standby ~2W, Casting ~2.5W
• Operating Temperature: 0°C to 40°C
