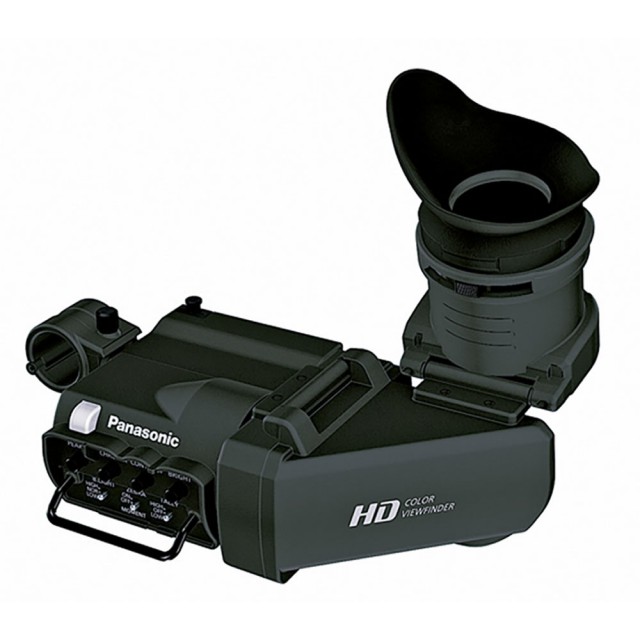

Panasonic AJ-CVF25GJ HD Color Viewfinder

Panasonic AJ-CVF25GJ HD color viewfinder is a successor to the AG-CVF15G, designed to mount on a Panasonic shoulder-mounted ENG camera recorder (current AJ-PX380G, AJ-PX800G, AJ-PX5100GJ, AJ-CX4000GJ; as well as discontinued models AJ-PX5000G, AG-HPX600, AJ-HPX610, AJ-HPX2000P, AJ-HPX2100E, AJ-HPX2700G, AJ-HPX3000, AJ-HPX3100G, AJ-HPX3700G) or studio camera (AK-HC3500 series, AK-HC3800 series, AK-HC5000 series, AK-UC3000 series, and AK-UC4000 series).

The AJ-CVF25GJ is equipped with a newly developed 3.45-type LCD panel (approximately 2,760,000 dots) that offers higher contrast and brightness than the previous model and boasts three times higher pixel density, thus realizing more precise and easier focusing.

The AJ-CVF25GJ can be opened (flip-up type) at either of two positions, the lens barrel or the front side of the LCD panel, just like the previous model, so that the operator can view the LCD screen directly from either the back or side of the camera according to shooting situations. Furthermore, the image can be displayed in a reduced size (83%) automatically or manually when the eyepiece is opened.

The image adjustment dial and other controls are laid out in the same pattern as on a conventional viewfinder for ENG camcorders. The back tally (with slide cover switch) is provided at the location where only the operator can see. Furthermore, the AJ-CVF25GJ is provided newly with a yellow tally that can be used in live recording with a studio camera, thus ensuring a comfortable video recording experience.
