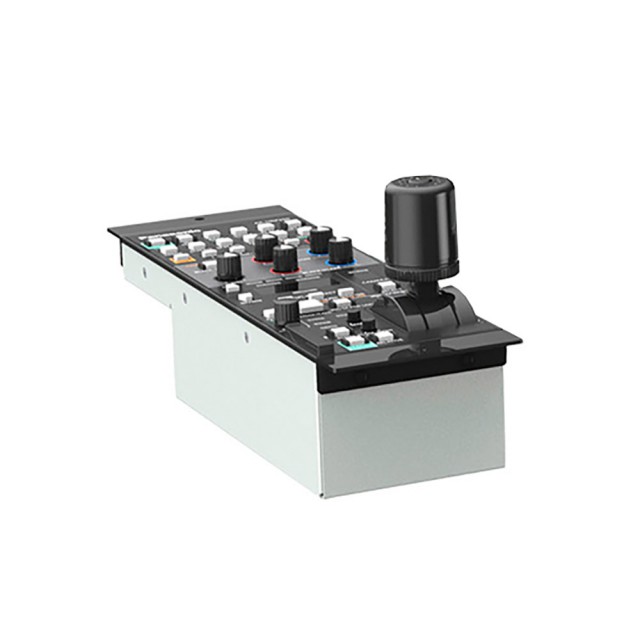

Panasonic AK-HRP250GJ

Compact control panel with support for IP networks and PoE power supply. On sale from 10/2020.

The new CCU and ROP models are launched simultaneously with the new AK-HC3900 studio camera. The AK-HCU250PJ/PSJ/EJ/ESJ CCU unit allows - in combination with the new AK-HRP250GJ control panel - to transmit uncompressed camera signals via fiber optics or hybrid SMPTE cabling (along with power). The CCU supports all HC3800 features including simultaneous HDR/SDR output, extended format support and 4K upgrade. New features include 3G Trunk and 3G Prompter; new ROP panels support PoE power for easier installation. An interesting new feature of these CCUs and ROP units is also an SD slot allowing device settings to be stored (or firmware upgraded).

• Camera control over serial/IP interface
• Also supports Panasonic PTZ cameras
• Joystick for easy operation
• Supports IRIS / PEDESTAL style control
• Offers Scene File function
• SD card slot is used to save settings and upgrade FW
• Supports PoE power supply
