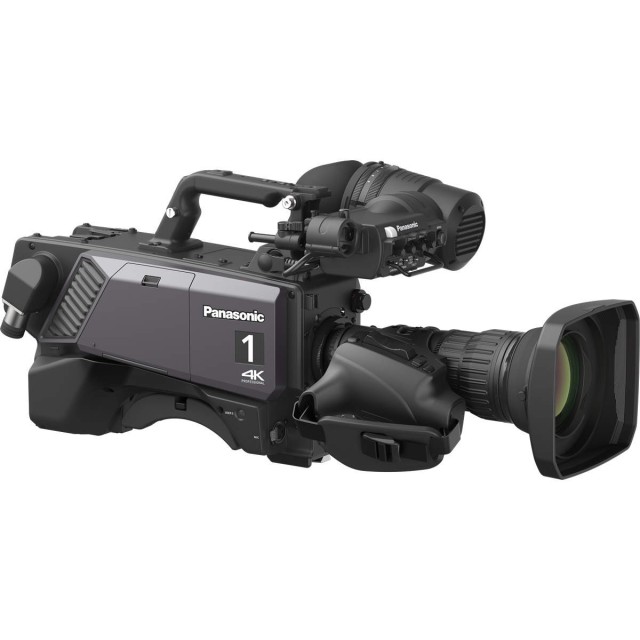

Panasonic AK-UCX100 4K HDR 12G-SDI Studio Camera (Lemo)

4K Studio Camera Equipped for On-site Production to the Future of Video Production. 12/2024.

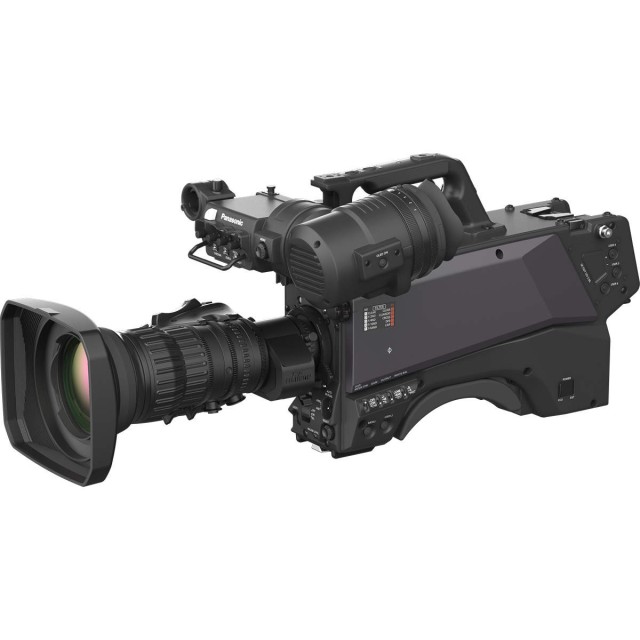

Panasonic AK-UCX100 4K studio camera is fully equipped to meet the demands for high-quality video and innovative on-sight live production in the IP era, including studio work, sports broadcasting and stage productions. The camera achieves exceptional high-definition for detailed reproduction with 2,000 TV lines (TVL), both horizontal and vertical. In addition, the rich gradation and colors of stage productions, etc. are achieved with a wide dynamic range and wide color gamut thanks to High Dynamic Range (HDR) technology (incl. HLG format) based on the BT.2020 standard. The AK-UCX100 can be operated as a standalone camera head, without requiring a Camera Control Unit (CCU), and it supports a variety of IP standards, Including NDI High Bandwidth, ST2110 and SRT, as well as 12G-SDI (x2). SMPTE ST 2110 enables network redundancy and supports JPEG XS for low-latency transmission, ensuring visually lossless video quality and extra- stable IP operation.

Superior Image Quality to Capture Every Moment
Capturing clear, high-quality content in live event environments can pose challenges with shifting lighting conditions and dynamic backgrounds. The AK-UCX100 supports strong image quality right out of the box. The new imager offers high sensitivity and dynamic range, easily adapting to both a darkened auditorium and venues with dazzling lighting effects. Its colorimetry has also been optimized to account for any new challenges with LED lighting and large display walls while the camera's HD low-pass filter helps manage the effect of moiré in LED walls. This allows venues to easily create the same experience for fans whether they are in-person or tuning in from home.

With improved resolution and 4K capabilities, the AK-UCX100 achieves a resolution of 2000 TV lines both horizontally and vertically, capturing detailed, ultra-high-definition images of the subject from any angle. Plus, the wide dynamic range and color gamut of HLG/BT.2020 lets content creators capture colorful, immersive stage performances for the most advanced display technologies.

A Simple, Versatile Design

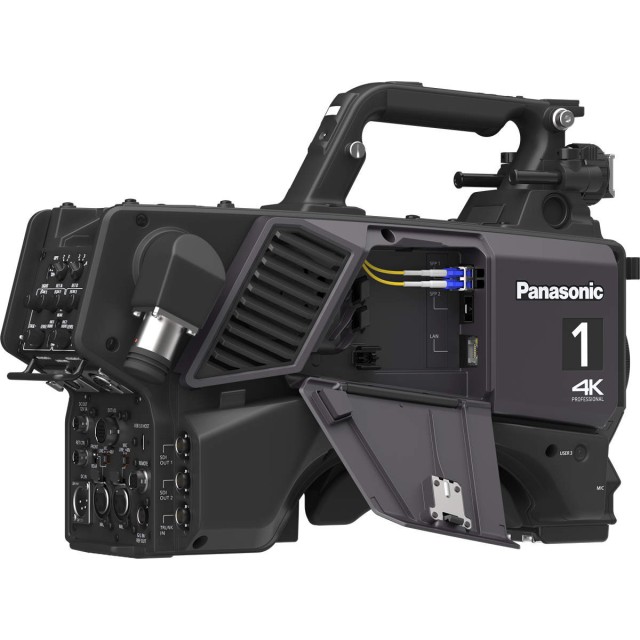

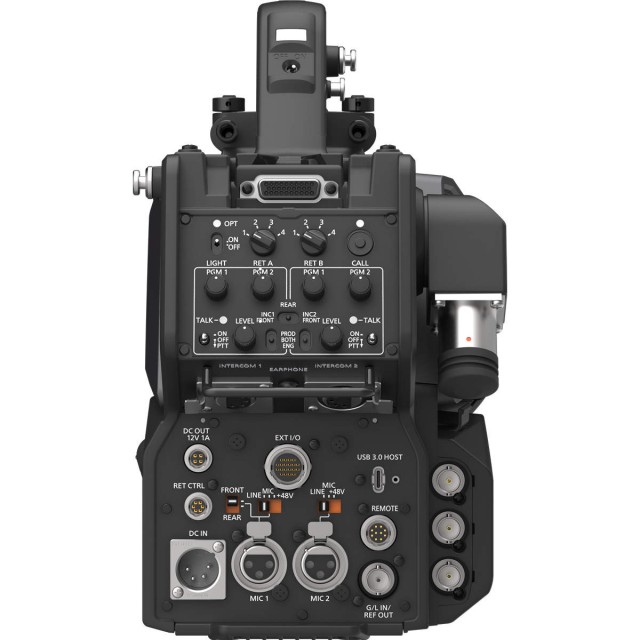

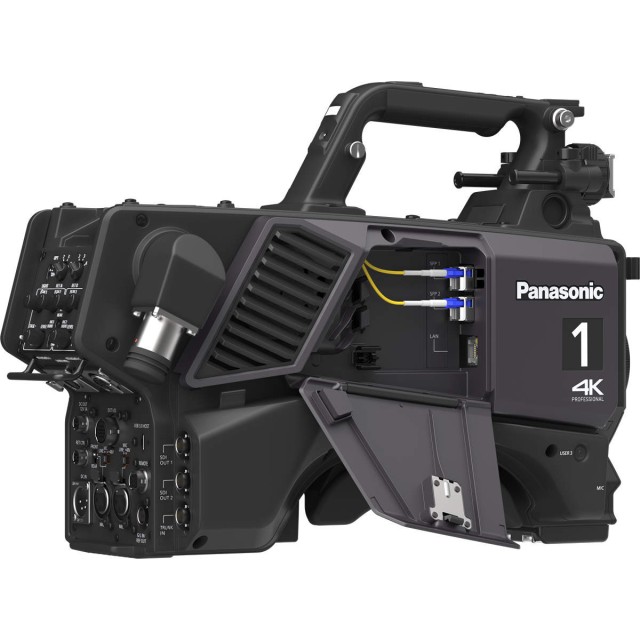

Designed for easy operation as part of the Panasonic studio camera family, the AK-UCX100 streamlines on-site workflows. Content creators have the freedom to choose the best operation with or without a Camera Control Unit (CCU). The AK-UCX100 supports 3G and 12G SDI outputs from the camera head and direct connection of the Remote Operation Panel Sync and tally so it can be operated as a standalone. Standalone operation is full featured when using 25Gb SMPTE ST 2110 connectivity to the camera head. Panasonic’s new Camera Fiber Adaptor (AK-CFA100) can insert camera power into a standard SMPTE ST 311 hybrid fiber cable for standalone camera operation or local power operation when used with the CCU. Users can take advantage of either mode as production requirements demand.

When producing content in a traditional studio with a CCU, the camera pairs with Panasonic’s recently released AK-UCU700 Series Camera Control Unit, which provides all traditional points of connectivity. The AK-UCX100 can easily pair with any Panasonic camera, including the AK-UE160 PTZ camera, to ensure consistent, cohesive production quality.

Flexibility to Future-proof to IP
The AK-UCX100 supports everything from simple studio applications to IP-based live production. The AK-UCU700 CCU gives content creators a full range of production format options, including 4x high speed 1080p and 2x high speed UHD & HDR. Inputs and outputs include 12G-SDI, as well as NDI ® High Bandwidth, SRT, and SMPTE ST 2110 at 25 Gbps. This enhances flexibility from baseband to IP operations at HD & UHD.

SMPTE ST 2110 can either be connected via the AK-UCU700 or directly to the camera for CCU-less operation. When using the AK-UCX100 in an all-IP environment, including SMPTE ST 2110 for transport and sync, the CCU is not necessarily required as all the points of communication input and output can be addressed on the same network connections. Both direct-camera-connected or CCU-connected SMPTE ST 2110 support SMPTE ST 2022-7 network redundancy and SMPTE ST 2110 (JPEG-XS)*1 for sub frame latency compressed feeds of HD and UHD on the SMPTE ST 2110 network.
