Panasonic AU-EVA1 +Optics

• Super 35 5.7K Sensor
• Dynamic Range 14 Stops
• Dual Native ISO 800/2500
• EF Mount
• Electronic Image Stabilization (EIS)
• IR Cut In/Out
• ND Filter Wheel (2/4/6 stops)
• 4K 60p / 2K up to 240p
• 4:2:2 10-bit
• SD Card Recording
• Up to 400 Mbps Recording
• V-log & V-gamut
• 5.7K Raw Output (future update)
• XLR Audio Inputs
• HDMI & SDI 4K Video Outputs

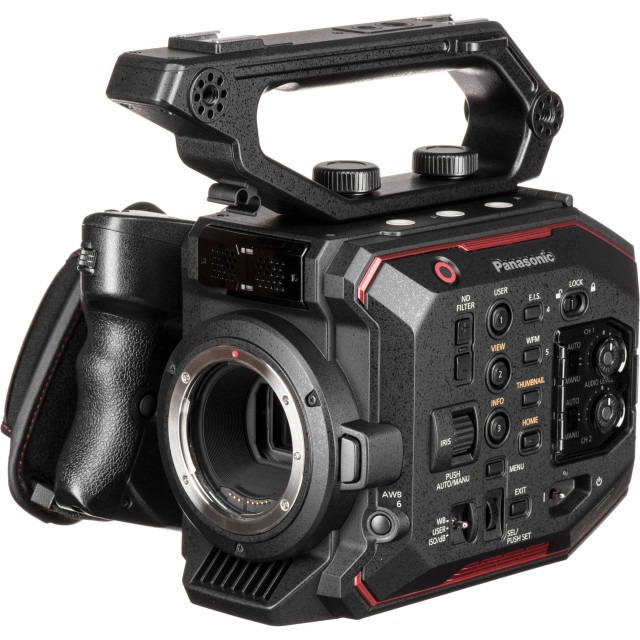

Panasonic AU-EVA1 is a new 5.7K cine-ma camera positioned between the Panasonic Lumix GH5 4K mirrorless camera and the VariCam LT 4K cinema camera. Compact and lightweight, the AU-EVA1 is tailor-made for handheld shoot-ing, but also well suited for documentaries, commercials and music videos.

5.7K Super 35mm Sensor
The EVA1 contains a newly designed 5.7K Super 35mm-sized sensor for capturing true cinematic images. By starting at a higher native resolution, the 5.7K sensor yields a higher resolving image when down-sampled to 4K, UHD, 2K, and even 720p. The increased color information results in a finer, more accurate finished image.



Dual Native ISO
One of the key features of the VariCam 35, VariCam LT, and VariCam Pure is Dual Native ISO. Utilizing a process that allows the sensor to be read in a fundamentally different way, Dual Native ISO extracts more information from the sensor without degrading the image. This results in a cam-era that can switch from a standard sensitivity to a high sensitivity without an increase in noise, or other artifacts. On the VariCams, Dual Native ISO has allowed cinematographers to use less light on set, saving time and money, as well as allowing for a great variety of artistic choices. The EVA1 will include Dual Native ISO, but the camera is currently being tested to determine final ISO specifi-cations.



V-Log / V-Gamut
The ability to capture accurate colors and rich skin tones is a must for any filmmaker. Like the VariCam lineup of cinema cameras, the EVA1 contains V-Log/V-Gamut capture to deliver high dynamic range and broad colors. V-Log has log curve characteristics that are somewhat reminiscent of negative film and V-Gamut delivers a color space even larger than film. The EVA1 will also import the celebrated colorimetry of the VariCam line.



Cinematic Run & Gun
Weighing only 1.2 kg (body-only) with a compact form factor (17 x 13.5 x 12.5 cm) and a removable handgrip, the EVA1 can be used for efficient hand-held shooting applications and can also be mounted on a drone, gimbal rig or jib arm for complex yet smooth camera moves. There will also be numerous mounting points and Panasonic is currently working with top accessory makers to allow further customization with the EVA1.



SD Card Recording
Ideal for indie filmmakers, the EVA1 records to readily-available, lower-cost SD cards. The camera can record in several formats and compression rates, and offers up to 10-bit 4:2:2, even in 4K. For high-speed capture, the EVA1 offers 2K up to 240 fps. In terms of bit rates, you can record up to 400-Mbps for robust recording. A complete breakdown of recording formats will be available at the time of the EVA1's release.

EF-Mount Lenses
For lensing, the camera utilizes a native EF-mount, giving shooters access to the broad EF lens ecosystem, including dozens of cinema-style prime and zoom lenses from numerous manufacturers. Electronic Image Stabilization (EIS) is employed to compensate for camera shake and blurring, which will help smooth out hand-held or shoulder-mount shots on documentary or run-and-gun projects. Behind the lens mount, an integrated ND filter wheel in 2, 4, and 6 stops allows for precise exposure control. The EVA1 also allows the IR Cut filter to be swung out of the path to the sensor at the push of a button. Unique photographic effects and night vision imagery are possible with this control over infrared.



Professional Features
As a professional video production tool, the EVA1 offers dual balanced XLR audio inputs and 4K-capable video outputs in both HDMI and SDI. In a future firmware upgrade, EVA1 will offer 5.7K RAW output to 3rd party recorders.
