Panasonic AV-HS6000

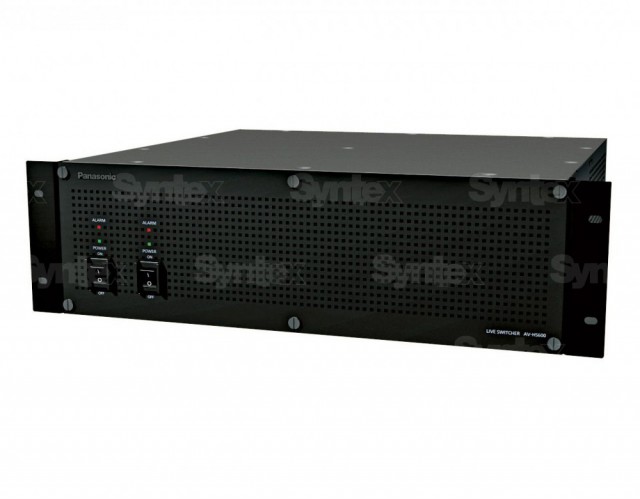

The Panasonic AV-HS6000 is a powerful, cost-effective 2 M/E switcher with 32 HD-SDI plus two DVI-D inputs, 16 HD-SDI outputs, 16 keyers, four independent Multi-Viewers, expandable clip storage, a Web server and many other advanced features, all in a compact, 3U design. Single PSU version of the main frame. Starting firmware 4.04 4K mode (2160/59/94p and 2160/50p video formats) is supported.

The Panasonic AV-HS6000 is a powerful and cost-effective 2 M/E live switcher with 32 HD-SDI plus two DVI-D inputs, 16 HD-SDI outputs, 16 keyers, four independent Multi-Viewers, and many other advanced features, all in a 3U design of the main unit. In addition, the switcher is configurable to match an expanded slate of production needs through options including a touch-screen menu panel, extra Primatte chroma keyers, expandable clip storage, and an SDK for development of a virtually limitless range of customized plug-ins to suit emerging production workflow needs. Easily customizable for diverse workflows, the HS6000 is a great tool for advanced production in house of worship, sports, broadcast, staging, and education.

Compact Design
With a 3U compact design, the HS6000 main frame features a generous range of inputs and outputs to facilitate system integration. With its four DVEs per M/E, 16 keyers and 16 Aux busses, the HS6000 is easily able to handle creative projects requiring a fast, flexible response. Its sleek design is enhanced by an ergonomic button layout with OLED source labeling, active thumbnail touch buttons for intuitive clip access, and many other technical director-friendly features. This newly designed, easy-to-use graphical control feature supports an accurate, intuitive workflow; with quick access for each M/E to wipe patterns, shot memories, event memories and other important functions. A separate monitor output is provided, displaying video, Multi-Viewer, waveform, and vectorscope information. A standard Web server function will also allow the switcher to be set up by Browser via an Ethernet connection.



HD-SDI Support
The HS6000 supports HD and SD multi-format signals, with upconversion available on four inputs, and downconversion on two outputs, as well as color correction on eight inputs and four outputs. The live switcher's system frequency is also changeable between 59.94 Hz, 50 Hz, and 24 Hz (or 23.98Hz), enabling worldwide operation and digital cinema production.

Primatte Keying
The HS6000 features real-time, high-quality chroma keying employing the powerful Primatte algorithm. One chroma keyer is provided as standard on each M/E, optionally upgradeable to four channels per M/E. In the standard configuration, the switcher supports four channels of PiP and four channels of keying per M/E, as well as four channels of upstream and four of downstream keying.

Advanced Functionality
Extensive shot memory, event memory, and macro functionalities allow operators to easily preset, sequence, and recall frequently used effects, content and settings. Up to four channels of video clips and four of still images can be stored as standard, with expansion up to 81 clips of 30 second content available using an optional storage module (AV-HS60D1). Up to three control panels may be connected via IP and managed via PC in a single system, with up to two panels active at the same time. Both single and redundant power supply models of control panel and main frame chassis are available. Some of the functions described is included in a free V2 firmware upgrade, available from July 2014.



Key Features
– 32 inputs and 16x SDI outputs; all inputs have built-in frame synchronizers.
– Color correctors are installed at 8 inputs and 4 outputs*.
– Up-converters at 4 inputs and down-converters are installed at 2 outputs.
– Equipped with 4 DVE and 2 DVE (2D) per ME to handle backgrounds and keys.
– AUX1 to AUX4 buses are equipped with MIX transitions.
– Equipped with real-time high-quality chroma keying that employs Primatte algorithms. Standard 1 channel, expandable up to 4 channels.
– 4 keyers per ME (total 8 channels) also capable of PiP.
– 4 downstream and 4 upstream keyers*.
– Equipped with 4 independent Multi-Viewer displays.
– Single Multi-Viewer can display a maximum of 16 video sources.
– Source names, tallies, audio level meters, and safety markers are displayable.
– Web server function. The switcher can be set and operated via LAN connection*.
– Shot, event* and macro* memory allow to preset and recall frequently used effects.
– Video clips and still images can be registered up to 4ch each, allowing them to be easily used for CG wipes.
– Plug-in software, external device control capability can be added in accordance with the operation workflow*.
– Operation with two additional panels is possible by IP connection*.
– The switcher can be set by the 10.1-type touch-operated optional Menu Panel AV-HS60C3GJ or by a PC monitor and USB mouse.

*) Available in version 2.0 (July 2014) or higher.
