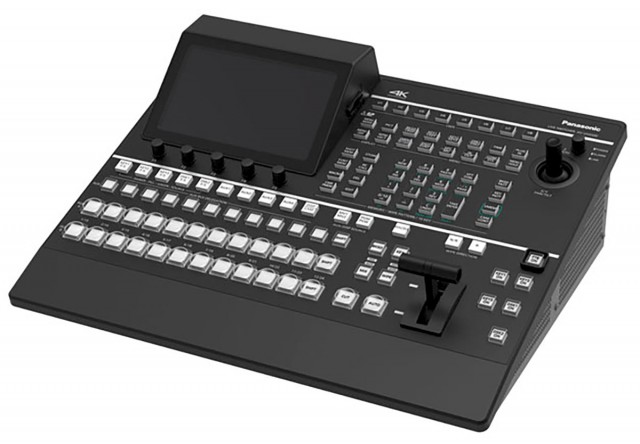

Panasonic AV-UHS500 (Main)

A new 12G-SDI compatible compact 4K Live Switcher, the AV-UHS500, will also be on display at IBC 2019. The 4K Live Switcher demonstrates outstanding live video production performance in the field for use in a variety of applications, such as event staging, broadcast at stations and OB vans, lectures at universities and conference halls.

More information

27 829 € with VAT 22 999.17 € without VAT
-+
Availability
on request

Show all accessories

Product description

Product description

A new 12G-SDI compatible compact 4K Live Switcher, the AV-UHS500, will also be on display at IBC 2019. The 4K Live Switcher demonstrates outstanding live video production performance in the field for use in a variety of applications, such as event staging, broadcast at stations and OB vans, lectures at universities and conference halls.

The AV-UHS500, planned for release in February 2020, represents the next step in switching technology from Panasonic, which has rapidly gained a reputation for live compact switchers in broadcast studios, live entertainment and sport events. The AV-UHS500 offers a high level of functionality in its range. In addition to providing 4K/3G/HD multi format support, the device allows the same number of HD inputs and outputs to be maintained even when operating in 4K.

Five optional boards have also been developed to meet customer needs. For improved flexibility and usability, additional optional boards can be freely installed to increase the number of inputs to as many as 16 SDI or 8 HDMI, ensuring smooth operation at big events with a large number of cameras. The unit is equipped with 5 keyers, including 2ch of chroma-key and 2ch of PiP, to enable a variety of production effects. The switcher is also equipped with an up/down conversion function, HDR/SDR conversion function and ITU-R BT.2020/BT.709 conversion function. These enable the flexibility to select video output as needed in environments where there are a variety of formats being used.

Parameters

Parameters

Manufacturer: Panasonic
Category: Switchers

Main parameters

Number of inputs16
Switcher inputsHDMI
Switcher inputsSDI
Switcher OutputsHDMI
Switcher OutputsSDI
Resolution4K
ACCESSORIES (8)

ACCESSORIES (8)

Decimator Design 12G-CROSS

HDMI / SDI 4K Cross Converter with Scaling and Frame Rate Conversion. Q4/2019.
669 €
Backordered 5 pcs

Panasonic AV-UHS5M1G (AV-UHS500 SDI Input Unit)

  • Free transport
Optional card for AV-UHS500. 4x 3G or 12G-SDI inputs, frame synchronizer, U/C, color
6 489 €
on request

Panasonic AV-UHS5M4G (AV-UHS500 HDMI Output Unit)

  • Free transport
Optional card for AV-UHS500. 3x HDMI 2.0 outputs, scaler for each channel.
6 489 €
on request

Panasonic AV-UHS5M2G (AV-UHS500 SDI Output Unit)

  • Free transport
Optional card for AV-UHS500. 4x 3G or 12G-SDI outputs, frame synchronizer, U/C, color
6 489 €
on request

Panasonic AV-UHS5M5G (AV-UHS500 4K DVE Unit)

  • Free transport
Optional card for AV-UHS500. DVE function in 4K mode (1x BKGD, 1x Keyer).
6 489 €
on request

Blackmagic Design Teranex Mini Quad SDI to 12G-SDI

Teranex Mini Quad SDI to 12G-SDI converts Quad Link SDI to 12G-SDI so customers can
639 €
14-30 days

Panasonic AV-UHS5M3G (AV-UHS500 HDMI Input Unit)

  • Free transport
Optional card for AV-UHS500. 3x HDMI 2.0 inputs, scaler for each channel.
6 489 €
on request

Panasonic AV-UHS5M6G NDI I/F Unit

  • Free transport
The AV-UHS5M6G NDI I/F Unit for the compact AV-UHS500 SDI/HDMI live switcher enables
5 709 €
on request
