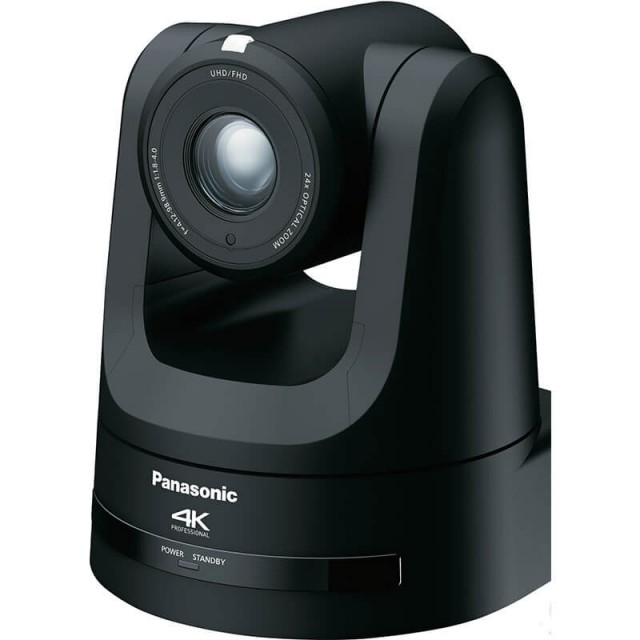

Panasonic AW-UE100K (Black)

4K/UHD (3840 x 2160 59.94p/50p) PTZ camera supporting NDI and SRT technologies!

The UE100 supports high bandwidth NDI for low latency transmission of high-quality 4K 60p/50p video, and SRT („Secure Reliable Transport“) for high-quality and stable transmission, and also compatible with 12G-SDI output for use in a wide range of situations, from live streaming of events to studio production. Supports a wide variety of IP transmission protocols, including NDI (high bandwidth NDI), NDI|HX (high efficiency low bandwidth NDI), and SRT.

High bandwidth NDI that can transmit 4K video at speeds of up to 250 Mbps and Full HD video up to 100 Mbps is included to provide high-quality low latency live video transmission with a single LAN cable. High efficiency low bandwidth NDI|HX is also included to enable video transmission at low bitrates. SRT is also supported to maintain stability while transmitting high-quality video, even in unstable network environments. RTMP/RTMPS provides direct streaming to live broadcasting services such as YouTube Live and Facebook Live from the camera.

The camera supports UHD/4K 60p/50p video at 3840 x 2160 to provide smooth and high-quality shooting of moving images, and a wide variety of output interfaces such as 12G-SDI, 3G-SDI, HDMI, and IP. A wide angle lens with a horizontal angle of view of 74.1 degrees enables a wide area to be shot from a limited installation space, and 24x optical zoom maintains high image quality at high zoom ratios. This allows shooting in large indoor spaces.

It also supports FreeD (a protocol widely used in virtual studio systems for transmitting camera tracking information) for building Augmented Reality/Virtual Reality systems. This allows the camera tracking information (pan/tilt/zoom/focus/iris) to be output together with a synchronization signal to easily build systems without an encoder.

The inclusion of a Direct Drive mechanism improves the responsiveness of pan/tilt and quietness during pan/tilt operations. In addition to Optical Image Stabilization (OIS), Electronic Image Stabilization (EIS) has been added for the roll direction. This provides stable video shooting even at locations utilizing robotics and rail systems, etc.
