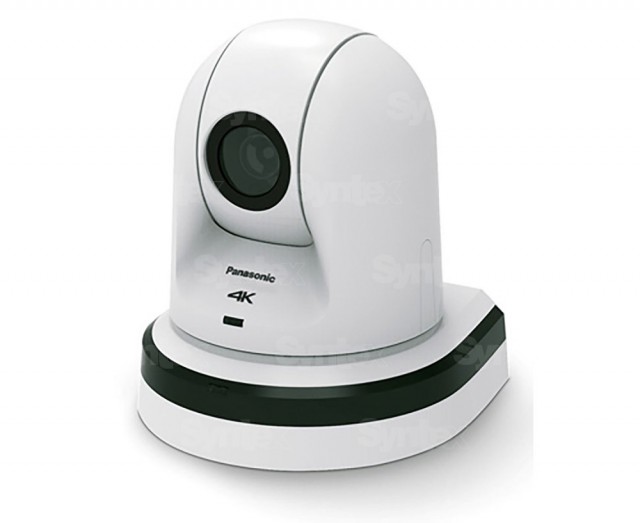

Panasonic AW-UE70W (White)

Panasonic AW-UE70 is the video industry's first integrated 4K pan/tilt/zoom camera! The AW-UE70 delivers 3840 x 2160 resolution images at 29.97p/25p via HDMI, and is also capable of 4K IP streaming, and in-camera 4K recording. White version.

4K PTZ camera!
Flexible support for both 4K and HD formats makes the Panasonic AW-UE70 the ideal choice for demanding projects in sports, cultural, conference or fashion video production, where high-definition video, a wide angle (65.1°) and precise remote control functionality are key to success. The AW-UE70 has a number of features targeted at professional videographers and broadcasters, such as genlock, optical image stabilization "O.I.S." or remotely switchable ND filters. The camera is equipped with 3G-SDI and HDMI outputs and uses a 1/2.3" MOS sensor and advanced DSP electronics for superior image quality and advanced features, including native A/V streaming up to 2160/30p resolution. With IP streaming, audio inputs and support for power over "PoE+" network cable, the innovative camera supports operation via a single signal cable! The UE70 is also capable of operating as a web camera for video conferencing, thanks to a 20x zoom lens, the ability to save user settings, and support for simultaneous streaming (and remote control) via IP and USB interfaces



SD card recording
Video can also be recorded directly in the camera to microSD cards, in 2160/29.97p or 1080/59.94p resolutions, e.g. for backup; recorded files can be copied over the network. The AW-UE70 also supports USB-Video mode, e.g. for video conferencing. Audio input can be switched between line-level or microphone-level, and audio can be embedded in HDMI and 3G-SDI lines, or streamed or recorded along with video

IP preview
The camera offers the same innovative options for remote control (IP, serial interface, web) and live video preview to IP networks as the popular AW-HE60, HE130, and HE40 models. IP, RS-422, and RS-232C interfaces are supported, and the integrated web server offers flexible remote control options from computers (Windows, Mac OS), mobile devices (iPhone, iPad, Android), or Toughpad series products. RS-422 or IP control can also be implemented using optional accessories from Panasonic (AW-RP50N, AW-RP120G, AK-HRP200G and AW-HEA10), as well as other manufacturers (Crestron, AMX, Winnov, etc.)

Powerful features
The camera is packed with a wealth of high-end features, including Dynamic Range Stretch (DRS), Digital Noise Reduction (DNR) for effective noise reduction, and High Dynamic Range (HDR) for shooting even under extreme brightness and contrast conditions. For shooting in virtually total darkness, Night Mode can be used to record monochrome HD video using an optional infrared illuminator (850 nm). This is particularly advantageous for e.g. reality show production, scientific work or documentary production



The "Freeze-During-Preset" function can display a stored still image while recalling the camera settings or while the camera is moving. PoE+ support, live video preview over IP and a wide range of remote control options ensure maximum ease of installation. All of these advanced features will bring cost savings and increased productivity to the entire production team. There is also the ability to multi-view preview from up to 16 cameras in M-JPEG mode and in a single browser window!

Other key features of the AW-UE70 include the ability to directly adjust color temperature, gamma correction, or adjust color levels in seven steps. Camera settings can be saved in up to 100 memory positions for maximum operator convenience. Synchro scan and communication indicators, essential for studio work, are also integrated. The supplied ceiling mount is designed for maximum ease of attachment by rotating the camera to the locking position. Optional covers for outdoor use are also offered



Precision camera head
The UE70 uses a highly accurate camera head with precise, fast and smooth movement in all directions (±175° rotation, -30°-90° tilt). This makes it easy to capture both fast action and slow scenes without vibration. In addition to 4K video (2160/29.97p/25p), the camera supports a range of other TV standards, including HD modes 1080/59.94p/50p, 1080/59.94i/50i, 1080/29.97p/25p, 1080/29.97PsF/25PsF and 720/59.94p/50p
