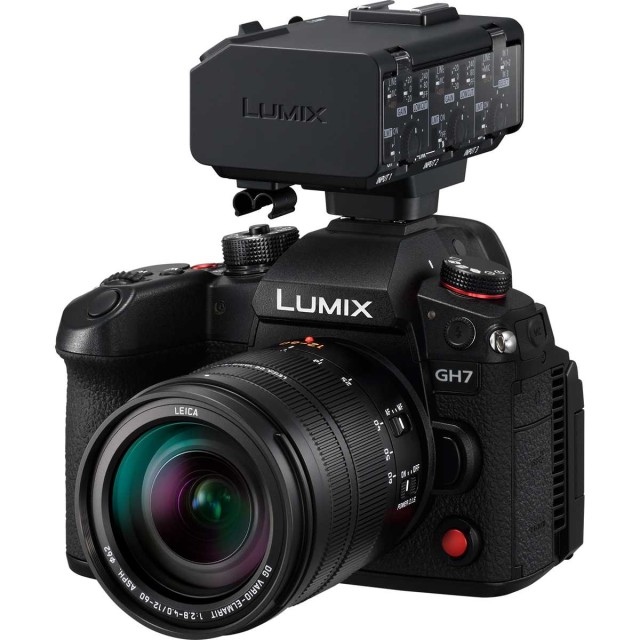

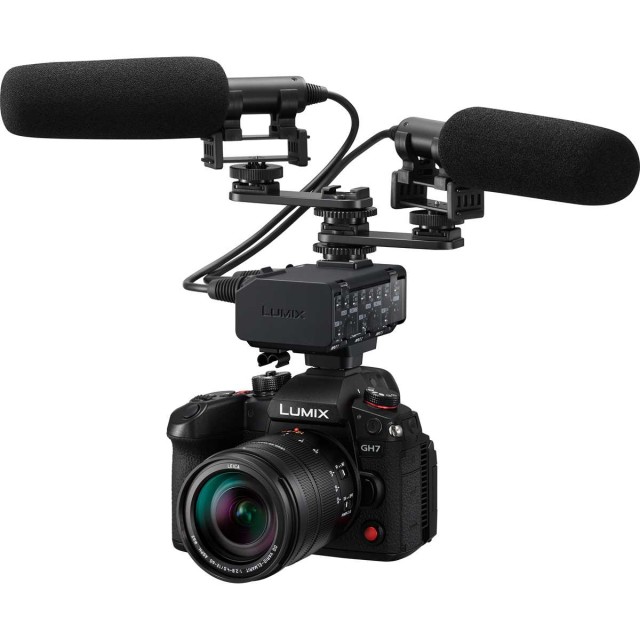

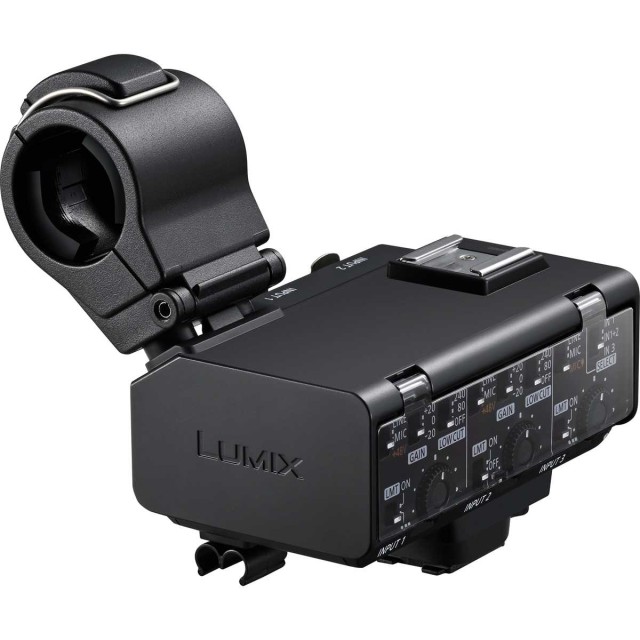

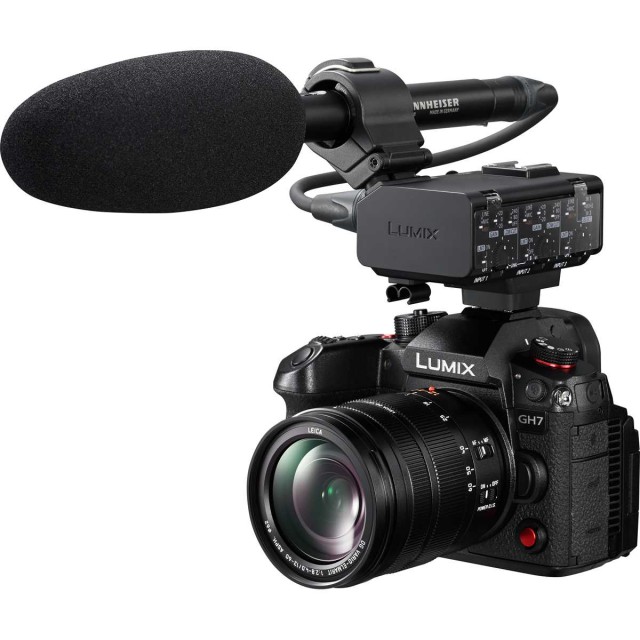

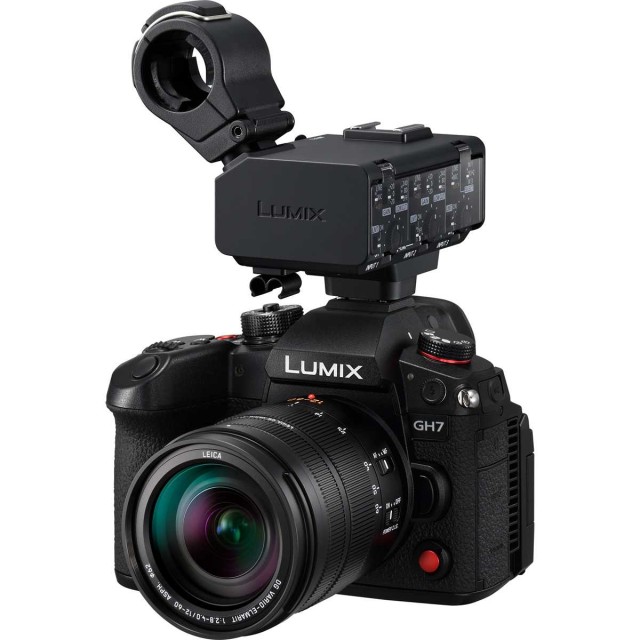

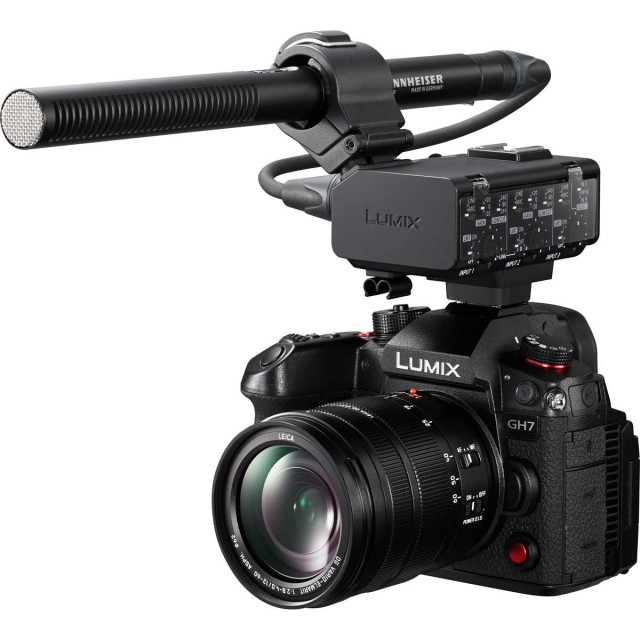

Panasonic DMW-XLR2 (XLR Microphone Adaptor)

INPUT1
INPUT2

Input connectors

XLR 3 pins (female)

Standard input level

Line: 0 dBu
Microphone, +48 V: -40 dBu
(0 dBu=0.775 Vrms)

Standard recording level

-12 dBFS (on standard input)

Frequency response

20 Hz to 40 kHz, +1/-1 dB (at Fs=96 kHz, LINE)

Phantom power source

48V

INPUT3

Input connector

φ3.5mm stereo mini jack

Standard input level

Line: -10 dBV
Microphone, Plug-in Power: -40 dBV
(0 dBV=1 Vrms)

Standard Recording Level

-12 dBFS (on standard input)

Frequency Characteristics

20 Hz to 40 kHz, +1/-1 dB (at Fs=96 kHz, at LINE)

Power supply socket

2,5V

Sampling frequency
Bit depth
Number of recording channels

Linear recording

48 kHz / 24 bit / 2 channels, 96 kHz / 24 bit / 2 channels
(Select one of INPUT1, INPUT1+2 or INPUT3)
48 kHz/24 bit / 4 channels

Floating point mode

48 kHz / 32 bits / 2 channels, 96 kHz / 32 bits / 2 channels
(Select one of INPUT1, INPUT1+2 or INPUT3)
48 kHz / 32 bits / 4 channels

Dimensions (W x H x D)

Approximately 61.2 x 60.9 x 92 mm (without microphone holder)
Approximately 94.6 x 106.2 x 92 mm (with microphone holder)
(without protruding parts)

Weight

Approximately 158 g (without microphone holder)
Approximately 192 g (with microphone holder)

Operating temperature

-10℃ to 40℃

Operating humidity

10 TO 80%RH

Standard accessories

Cable holder, microphone holder, carrying case
