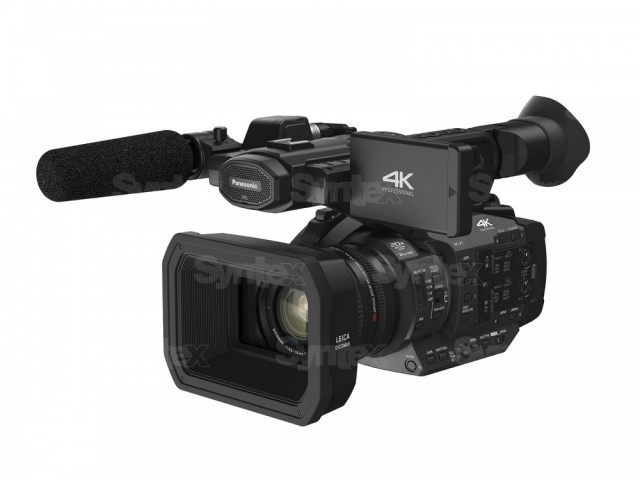

Panasonic HC-X1E

Panasonic HC-X1 is a light, compact 4K Ultra HD professional camcorder. It supports 4K 24p, UHD 60p/50p, FHD 60p/50p multi-format recording and HD super slow-motion. The X1 includes professional features such as 2-channel XLR Audio, Wired/Wireless remote control, triple manual rings, a user switch, timecode, ND Filters and twin SD card slots. Additionally the X1 offers Live HDMI output along with a wide 24mm angle LEICA DICOMAR 4K Lens and optical 20x zoom. Available from December 2016.

The new X1 camcorder has amazing 5-Axis O.I.S. for 4K 24p recording, UHD 60p/50p recording, dual codec recording (UHD and FHD) and IR shooting. While offering high image quality and advanced functions allowing the user record images exactly as intended, it boasts high mobility and operational ease only a handheld camcorder can provide and streamlines workflows to support professional video production. In response to the rising demand for 4K video content, the Panasonic HC-X1 4K camcorder helps create attractive and beautiful 4K videos!

Newly developed LEICA DICOMAR 4K lens
The newly developed integrated lens system boasts the industry's widest angle at 24mm. It allows low-distortion, wide-angle shooting without the use of a wide conversion lens, thus supporting professional video production. It is also equipped with a 1.0” sensor to realize the world's first optical 20x zoom with a sensor of this size. Quick zooming is possible from wide-angle to telephoto. The 4-Drive Lens System individually drives each of the four lens groups to minimize the drive range of each lens group and provide optical 20x zoom with its small body.



High-sensitivity 1.0” 4K sensor
The 1.0” MOS sensor (provides 9.46 megapixels at 4K24p / 8.79 megapixels at UHD, FHD) offers an appropriate depth of field and excellent balance between image quality and sensitivity. The HC-X1 can record in 4K24p (4096 x 2160), UHD 60p/50p (3840 x 2160) or FHD 60p/50p (1920 x 1080). The system frequency can be flexibly selected from 59.94 Hz, 50.00 Hz and 24.00 Hz. The file format can be selected from versatile and easy-to-use MOV (QuickTime), MP4 and AVCHD.



Manual rings
The lens barrel features Triple Manual Rings for zoom, focus and iris operations. There are a total of 13 user buttons, nine on the body and four on the LCD touch panel. These user buttons can be allocated with desired functions. The 3.5” monitor built into the handle section can be pulled out and turned 270 degrees in the vertical direction for high-angle, low-angle and selfie shooting. The EVF is a high-resolution (approx. 1,769,000 dots) color OLED display with superb color reproduction. The HC-X1 is also equipped with a wealth of focus assist functions to support quick and accurate manual focusing, such as MF Assist, One-Push AF, Expand/Peak, Focus Transition and Area Function. The ND filter can be set to OFF, 1/4, 1/16 or 1/64. Gain selector and AWB selector are also provided.



Advanced Optical Image Stabilizer (O.I.S.)
The correction area was expanded to approximately 900% (except 4K 24p mode) of the conventional area to strongly correct low- and high-angle shots (compared with Panasonic's AG-AC160). In FHD mode, a 5-Axis HYBRID O.I.S.+ adds electronic image stabilization to optical image stabilization, and detects and corrects 5 axes, including the roll rotation. The Micro Drive Focus Unit has achieved stable and high-speed AF with excellent tracking performance to ensure accurate focusing, which is extremely important in 4K shooting. The AF operation settings are customizable.



Super Slow Motion and VFR (2 to 60 fps)
The Super Slow Motion function records HD images at a high speed of 120 fps (59.94 Hz)/100 fps (50 Hz) to provide a slow-motion effect. The HC-X1 is also newly equipped with a VFR (variable frame rate) recording function that allows the change of frame rate setting in ten steps from 2 to 60 fps. This lets the user produce creative and expressive videos using techniques such as overcranking for a slow-motion effect and undercranking for a quick-motion effect.

Professional interfaces
The HC-X1 is equipped with two channel XLR audio inputs with switchable +48V phantom power supply/MIC/LINE and manual volume. It records high-quality sound in two channels using either a 16-bit linear PCM system (MOV/MP4) or Dolby Digital system (AVCHD). When mounted with the wireless module (AJ-WM50/AJ-WM30, sold separately), an iPad installed with the AG ROP can be used for wireless remote control of camera settings, lens control and others.



Double SD card slot
Two SD memory card slots are provided. The recording media switches automatically and seamlessly from Slot 1 to Slot 2. By changing a full SD card with a new SD card, images can be recorded continuously for many hours.



Broadcast-grade image adjustment functions
The camera also features a 16-axis independent color correction function that allows color matching of multiple cameras under the same lighting condition as well as creative image rendering. The Soft Skin function makes skin colors appear soft and beautiful, which is especially effective when recording a person up close. Gamma setting can be selected from seven modes including two types of CINE-LIKE gamma. This allows the user to achieve the most suitable gradation according to the specific video production needed.
