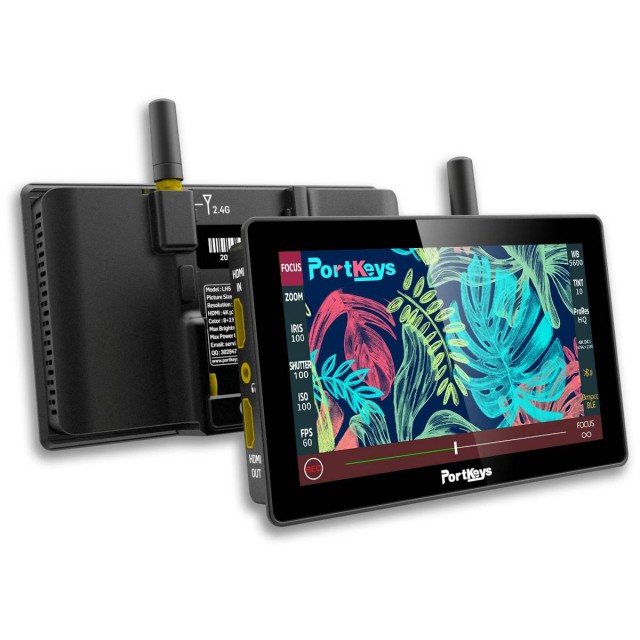

Portkeys LH5P

PortKeys on-camera monitor with 5.5” 1.700nit 10-bit touch screen with WLED backlight, and Bluetooth module for remote camera control (Sony, Canon, Panasonic, Z CAM, Blackmagic Design and others). The monitor also offers 4Kp30-capable HDMI I/O as well as Tilta Nucleus-N/M remote control...

• Material: Aluminum alloy + Tempered glass
• Size: 5.5"
• Resolution: 1920x1080
• Dimension:144*114.8*28mm
• Maximum Power: 10W
• Brightness: 1700nit
• Viewing Angle: 178°H/178°V
• Color Depth: 10bit(8+2FRC)
• Contrast: 1000:1
• Input Voltage: DC 7-24 V
• Backlight: WLED
• Weight: 250g
• Input: 4KP30 HDMI
• Output: 4KP30 HDMI
• Support Battery Model: Sony NP-F970/F960, F750/F550
• Power Input / Output: 5pin Aviation Connector, 7~24V power supply or battery, USB-A (5V/2A)
• Audio Output: 3.5mm Headphone Jack
• Functions: 3D LUT, Waveform, Peaking, Histogram, Guides, Zebra, Check Field, Grids, Audio Meters, Tint, Touch Capability, Backlight, Adjustable Fan, Zooming, Image Flip, OSD Flip, Cross Hair, HLG, BMD SDI Tally, Camera Control, False Color, Anamorphic, 3D LUT SDI Output...

Supported Camera Models

• Sony: A9, A7M II, A7R II, A7S II, A7M III, A7R III, A7R IV, A6000, A6300, A6400, A6500, RX100, RX02 (Multi), FS5, FS7, FX6, FX9 (LANC), A7S III (Type-C/USB-C)
• Canon: 5D Mark III, 5D Mark II, 6D, 6D Mark II, 80D (Mini USB), 1DX, 1DX MARK II, 5DS, 5DS R, 5D MARK IV (Micro USB), R5, R6, C70, EOS R (Type-C/USB-C), C700 PL, C700 GSPL, C300 MARK 2, C300 MARK 2 PL, C200, C200B, C100, C100 MARK 2 (LANC)
• Tilta: Nucleus-N, Nucleus-M
• Panasonic: GH5, GH5S, S1, S1H, S1R, S5, G9, BGH1 (Type-C/USB-C)
• Z CAM: E2, E2 S6, E2 F6 (LANC)
• REC key (LANC)
• Blackmagic Design: BMPCC4K, BMPCC6K (Bluetooth), URSA Mini 4K, URSA Mini 4.6K, URSA Mini PRO 4.6K G2, URSA Broadcast, Cinema Camera 2.7K, Cinema Camera 4K, Micro Studio Camera 4K (LANC)
