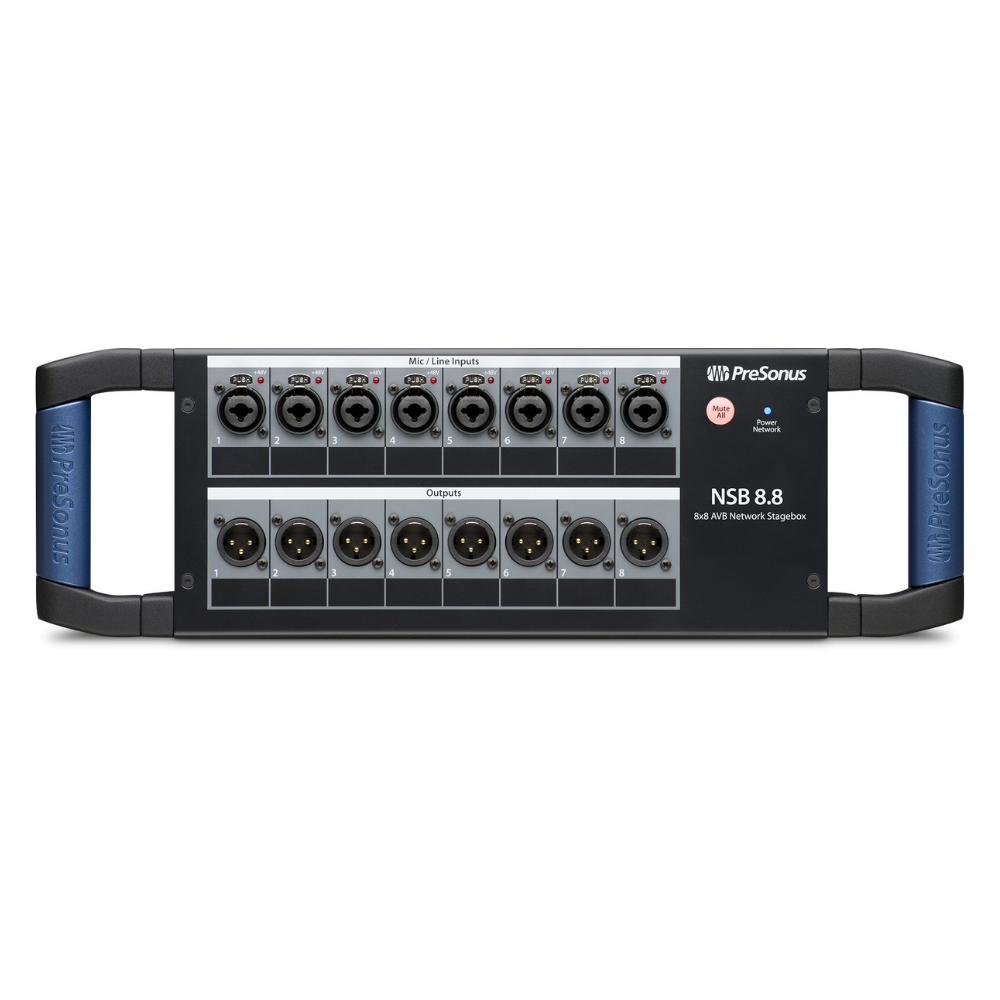

Presonus NSB 8.8

The NSB 8.8 networked stage box is loaded with eight versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line-level devices—the NSB 8.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation,…

More information

669 € with VAT 552.89 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS

Product description

The NSB 8.8 networked stage box is loaded with eight versatile locking combo jacks. Connect your microphones to the digitally controlled XMAX preamps or use the balanced ¼-inch TRS inputs to connect your line-level devices—the NSB 8.8 can handle it all. The inputs can be sent to any StudioLive Series III digital mixer on the network, and thanks to gain compensation, every mixer gets individual gain control without affecting the front-of-house mix.

PreSonus built the NSB 8.8 inside a rugged steel chassis with sturdy handles designed to survive the rigors of the most demanding tours. The NSB 8.8 is also install-friendly: Just remove the handles and attach the optional rackmount kit, and your NSB 8.8 can be racked in your studio or backstage. For permanent installations, the NSB 8.8 is also compatible with stage pockets from Ace Backstage.

StudioLive Series III networked products form an ecosystem that is easily expanded and quickly configured. Designed to enhance each other, these products are at the forefront of AVB networking technology. The NSB 8.8 can be used alone or with many other NSB-series stage boxes to add remote audio to one StudioLive Series III digital mixer or multiple mixers on the same network. For StudioLive Series III mixers that have limited onboard analog I/O, the NSB 8.8 provides a simple expansion to a full 32- or 64-channel mixing system.

SPECIFICATIONS

Mi​crophone Preamplifier

  • Input Type XLR Female, balanced
  • Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu

Input Impedance 1 kΩ

  • THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
  • Common Mode Rejection Ratio (1 kHz at unity gain) 65 dB
  • Gain Control Range (±1 dB) 0 dB to +60 dB
  • Maximum Input Level (unity gain) +12 dBu
  • Phantom Power (±2 VDC) 48 VDC, switchable per channel

Line Inputs

  • Type ¼” TRS Female, balanced
  • Frequency Response to Main Output (at unity gain) 20-20 kHz, ±0.5 dBu
  • Input Impedance 10 kΩ
  • THD to Main Output <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
  • S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd) 94 dB
  • Maximum Input Level +18 dBu

XLR Outputs

  • Type XLR Male, balanced
  • Maximum Output Level +24 dBu, ±0.5 dBu
  • Output Impedance 100Ω

Digital Audio

  • ADC Dynamic Range 115 dB (A-wtd, 48 kHz)
  • DAC Dynamic Range 115 dB (A-wtd, 48 kHz)
  • AVB Audio Network Ports Locking XLR Ethernet
  • Sampling Rate 48 kHz, 44.1 kHz

Power

  • Connector Locking IEC
  • Input-Voltage Range 90 to 230 VAC (±10%)

Physical

  • Height 5.2” (132 mm)
  • Width 16.7” (424 mm)
  • Depth 4.5” (114 mm)
  • Weight 5.4 lbs. (2.4 kg)
Parameters

Parameters

Manufacturer: Presonus
Category: Patch panels
