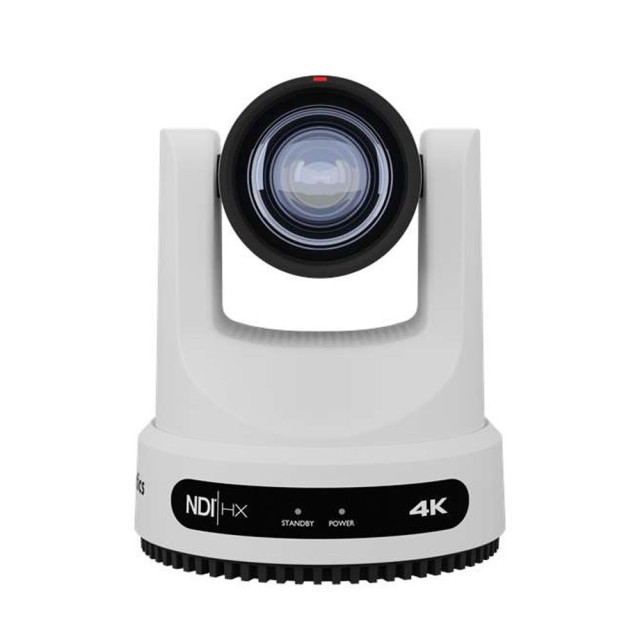

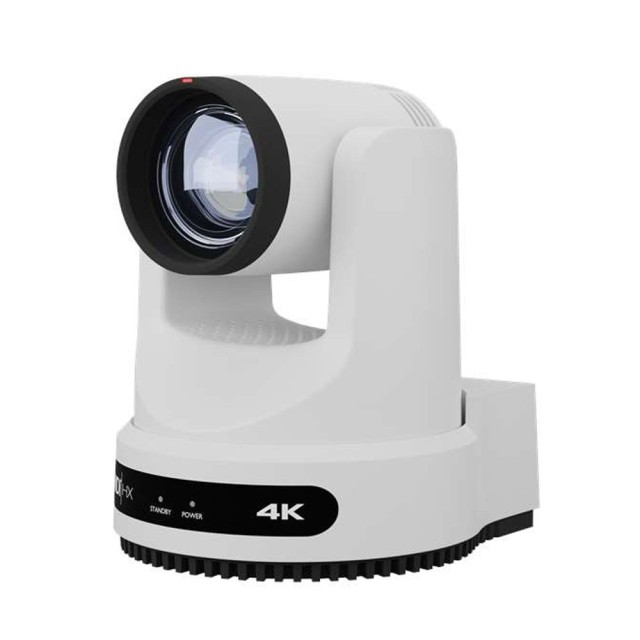

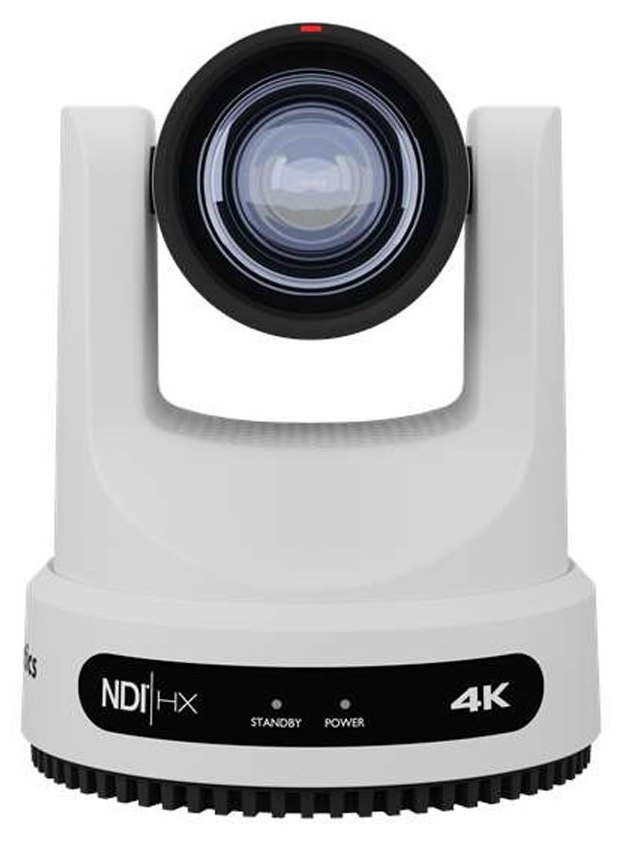

PTZOptics Move 4K, 12X Optical Zoom, WHITE

The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with resolutions up to 4K60fps (1080p 60fps over 3G-SDI). In addition, this series includes a wide varietey of outputs such as USB, HDMI, SDI, and NDI®|HX.

Key Features

• Built-In Auto-Tracking
• Advanced White Balance Modes
• Wide Dynamic Range
• Full Frame Rates: 2160p-60/50/30/25, 1080p-60/50/30/25, 1080-60/50, 720p-60/50/30/25
• 3D Noise Reduction
• Up to 4K Resolution @ 60fps (1080p 60fps over 3G-SDI)

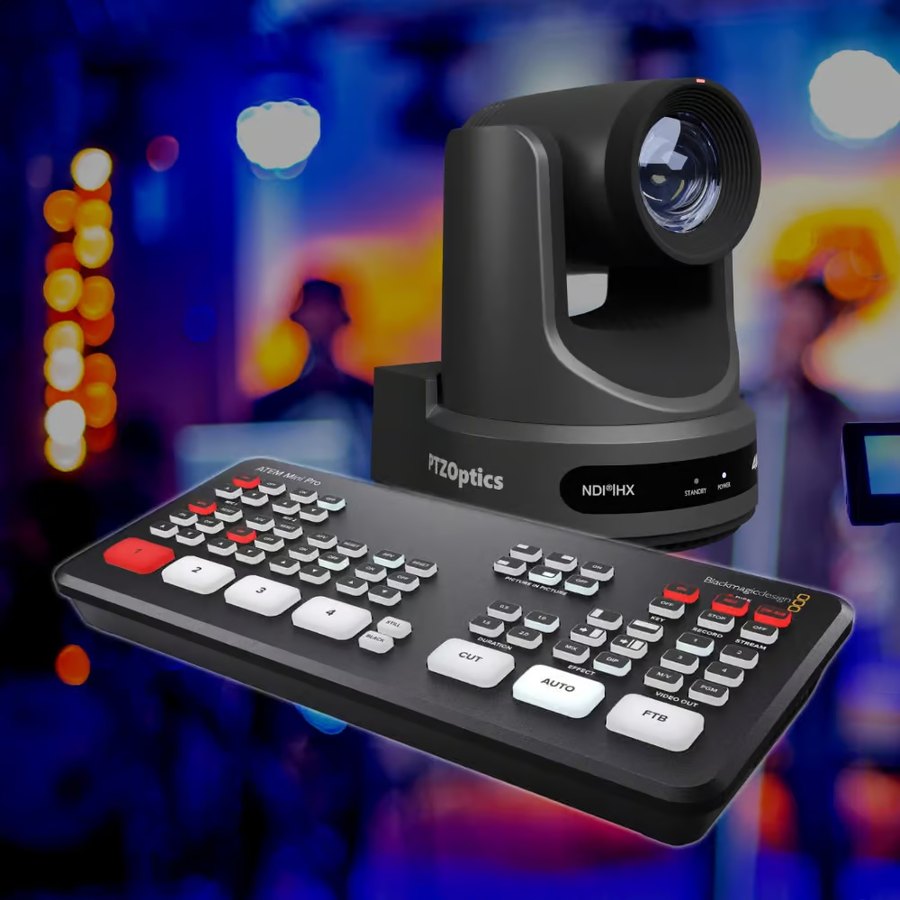

• Blackmagic Switcher Integration
• Broadcast Frame Rates: 2160p-59.94/29.97, 1080p59.94/29.97, 1080i59.94, 720p59.94
• SRT Support

The New Standard

PTZOptics introduces the new Move 4K series for a complete different and advanced user experience. The Move 4K cameras feature accurate auto-tracking and resolutions up to 4k 60fps (SDI 1080p 60fps). In addition, PTZOptics upgrades its hardware and software for better low-light performance.

Other features include PoE capabilites and a built-in-tally light. The Move 4K product range enables users to modernize their setup but will still be compatible with older systems, as HD and Full HD video resolutions are supported.

Unparalleled Performance and Versatility

PTZOptics has implemented SDI, HDMI, USB, and IP output in every Move 4K camera for easy deployment and better usability. In addition all cameras come with NDI®|HX and are available in 12x, 20x, 30x optical zoom.

Mount the Move 4K anywhere

Mount your camera in multiple angles using the PTZOptics brackets. The Move 4K has a new video inversion feature which automatically detects the camera's orientation. This feature will save you time on setup and installation. View our brackets here.

Control and Track

The renewed PTZOptics Web UI allows users to PTZ control their Move 4K camera and gives access to the integrated auto-tracking features. Users can also use production software such as OBS, Livestream Studio,Wirecast, vMix, mimoLive or Tricaster.

PTZOptics also offers joysticks for accurate PTZ control. Check out the PTZOptics IP and serial Joysticks here.

Specifications

• UltraHD 4K (3840x2160p) video resolutions up to 60 FPS
• Built-in auto-tracking capabilities
• 12X optical zoom lens with a 72.5° horizontal field of view
• High performance in low light scenarios with Wide Dynamic Range
• 3D noise reduction with our latest “low noise CMOS sensor”
• Serial (RS232 & RS485) & IP control (LAN/WAN)
• H.264, H.265, & MJPEG video compression when IP streaming

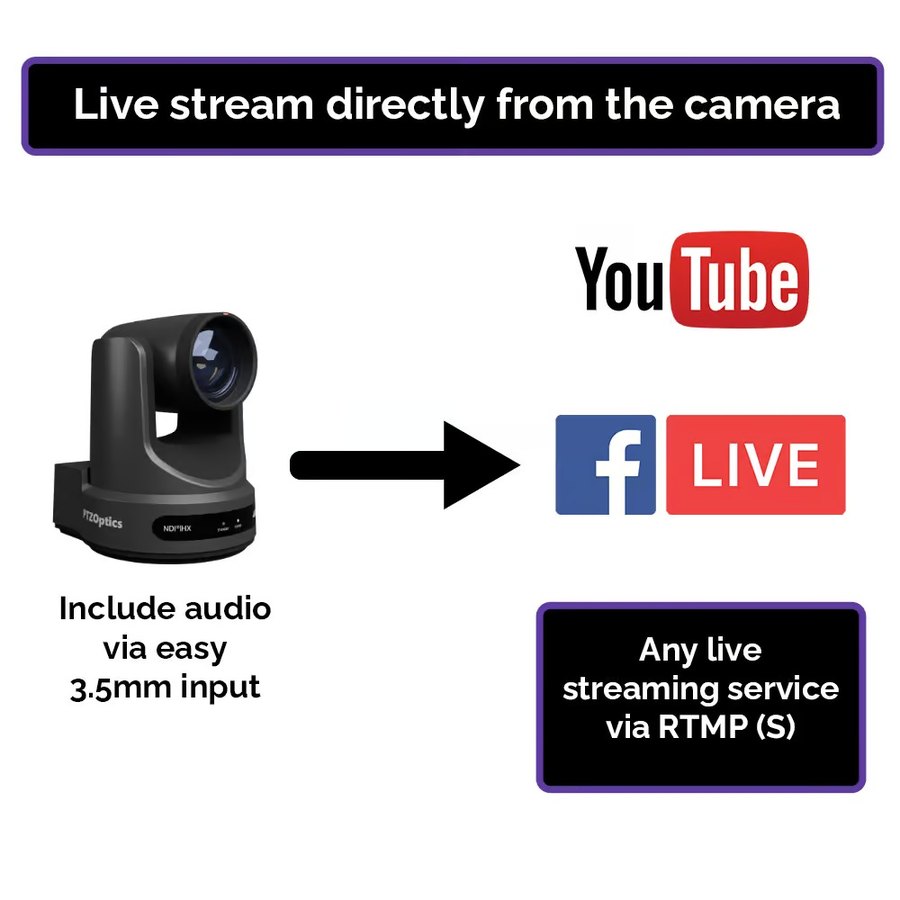

• USB 2.0, HDMI 2.0 / 3G-SDI, NDI®|HX 3 / IP streaming (SRT, RTSP, RTMP)
• PoE (Power over Ethernet) or 12VDC power supply
• Built in tally light
• Photobooth capable

Camera & Lens

• Resolution and Frame Rate


HDMI: 3840x2160p-60/59.94/50/30/29.97/25, 1920x1080p60/59.94/50/30/29.97/25, 1920x1080i-60/59.94/50, 1280x720p-60/59.94

SDI: 1920x1080p-60/59.94/50/30/29.97/25,1920x1080i-60/59.94/50,1280x720p-60/59.94

• Video Sensor 1/2.5 inch, UHD CMOS sensor. Effective pixels: 8.51M
• Digital Zoom Off (3840x2160), 2X (1920x1080), 3X (1280x720), 4X, (960x540), 8X (480x270), 16X (256x144)

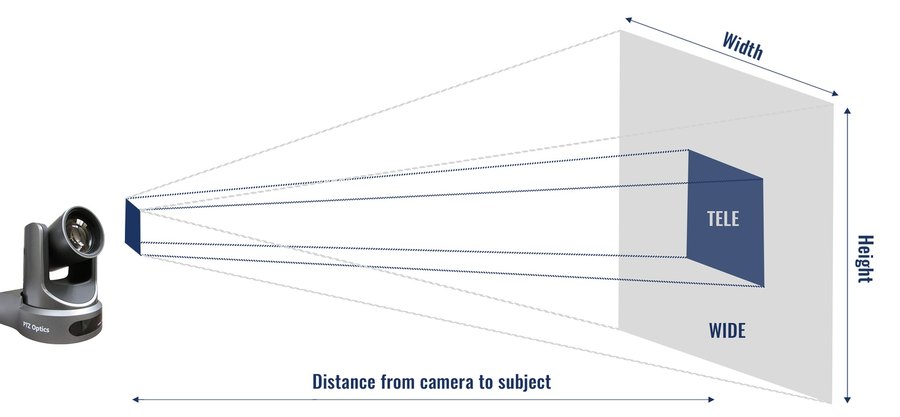

• Field of View Horizontal: 6.9° (tele) ~ 72.5° (wide), Vertical: 3.9° (tele) ~ 44.8° (wide)
• Min Lux 0.5 Lux @ (F1.8, AGC ON)
• Shutter 1/30s ~ 1/10000s

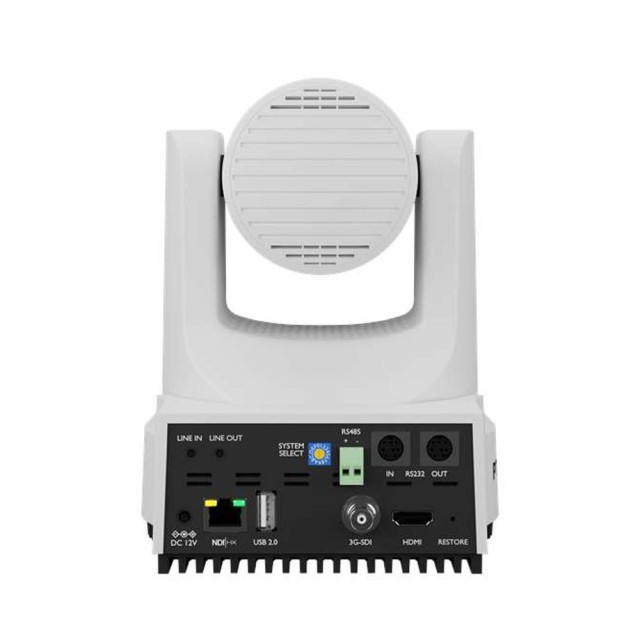

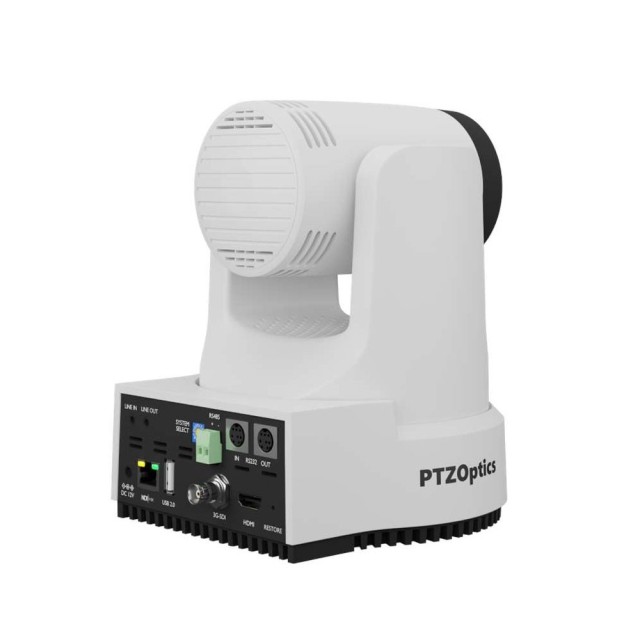

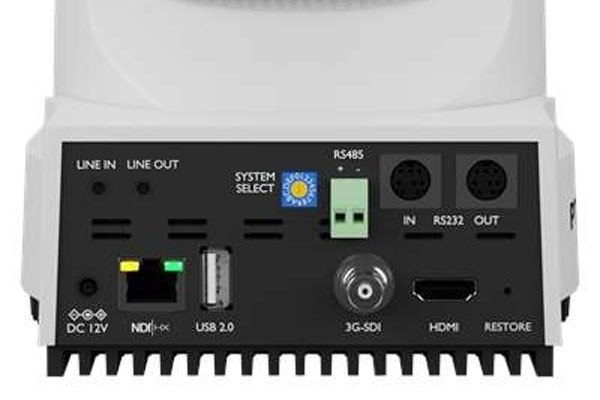

• Rear Board

HD Video Output

• 1x RJ45: 10/100/1000M Adaptive Ethernet Port
• 1x HDMI: version 2.0
• 1x USB 2.0: type A
• 1x 3G-SDI: BNC type, 800mVP-p, 75Ω, Along to SMPTE 424M standard

Communication Interface

• 1x 8 pin Mini-din RS232 input, Max distance: 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 8 pin Mini-din RS232 output, Max distance 98.5ft / 30m, protocol: VISCA / Pelco-D / Pelco-P
• 1x 2 pin Phoenix port, RS485 input / output, Max distance3,937ft/ 1200m, protocol: VISCA / Pelco-D / Pelco-P
