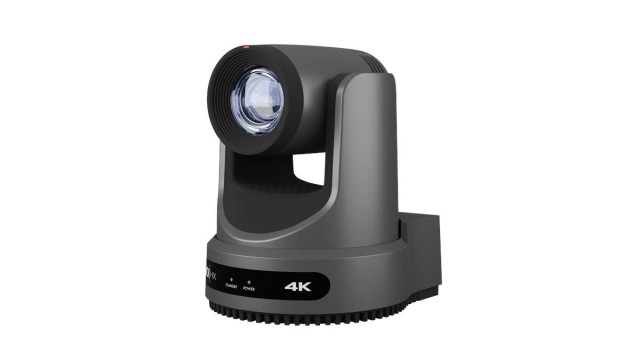

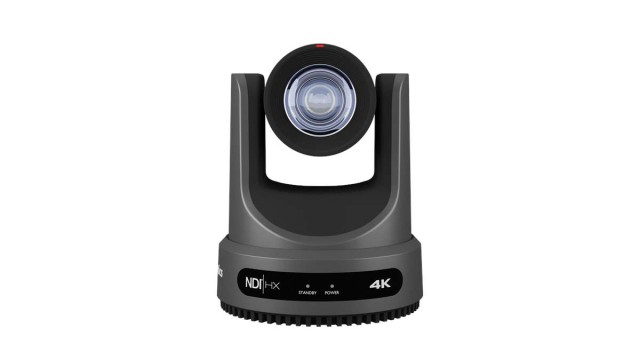

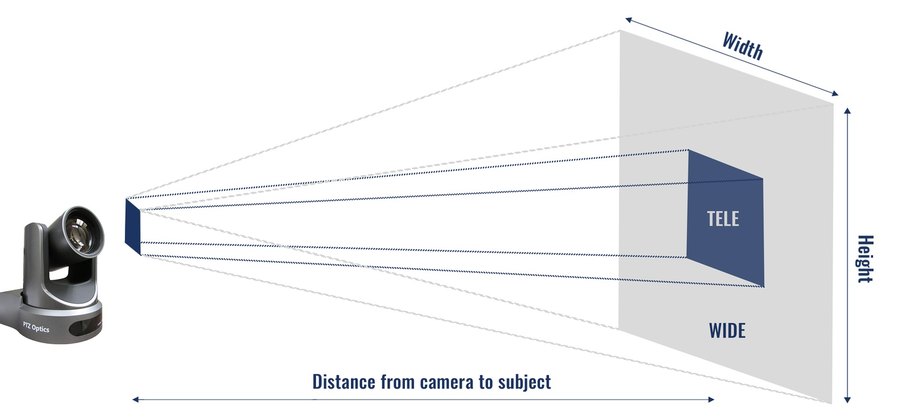

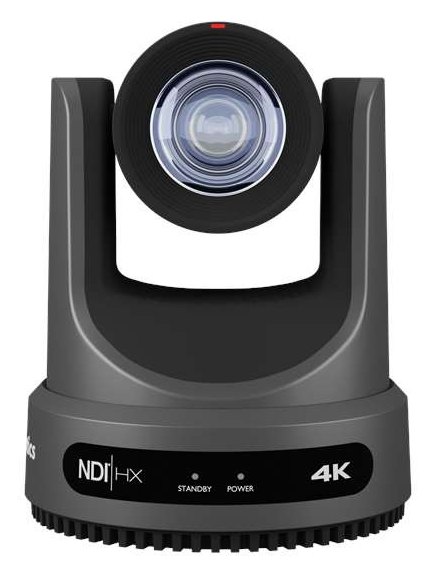

The PT30X-4K-GY-G3 comes with a 30X optical zoom lens and a 60.7° horizontal field of view. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum. The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with…
The PT30X-4K-GY-G3 comes with a 30X optical zoom lens and a 60.7° horizontal field of view. The advanced UHD CMOS sensor allows the camera to perform exceptionally in low light scenarios with wide dynamic range and reduces noise to bare minimum. The PTZOptics Move 4K series sets a new standard for PTZ cameras offering accurate auto-tracking capabilites with resolutions up to 4K60fps (1080p 60fps over 3G-SDI). In addition, this series includes a wide varietey of outputs such as USB, HDMI, SDI, and NDI®|HX.

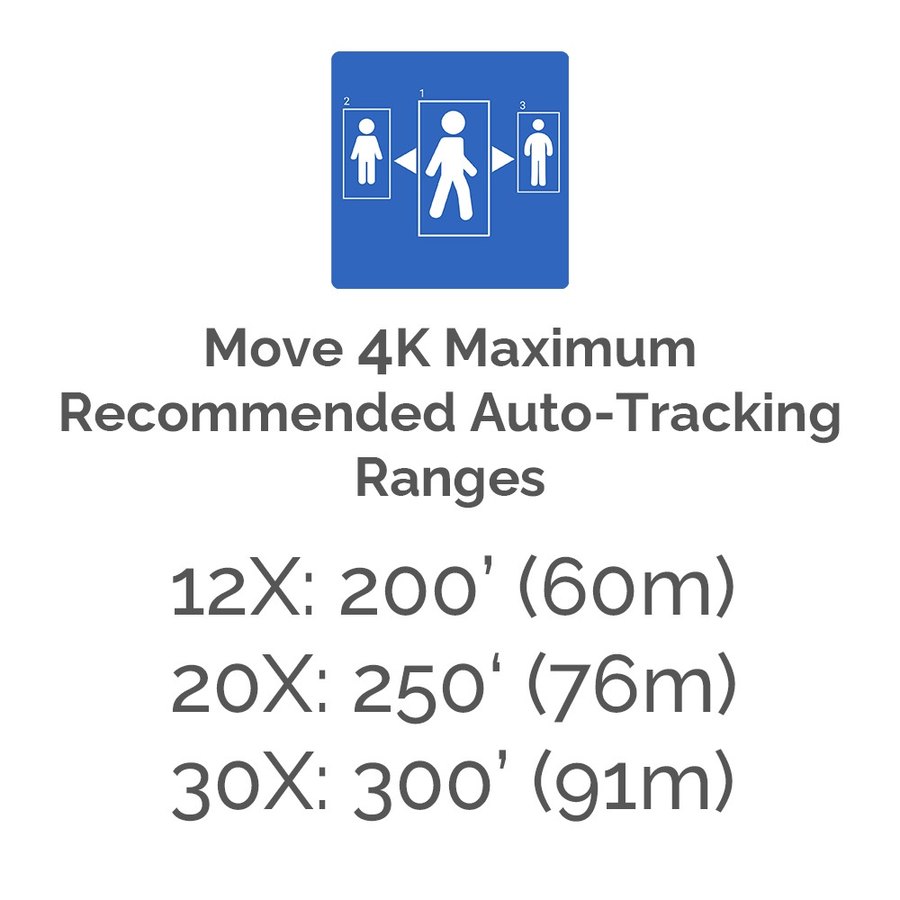

PTZOptics introduces the new Move 4K series for a complete different and advanced user experience. The Move 4K cameras feature accurate auto-tracking and resolutions up to 4k 60fps (SDI 1080p 60fps). In addition, PTZOptics upgrades its hardware and software for better low-light performance.
Other features include PoE capabilites and a built-in-tally light. The Move 4K product range enables users to modernize their setup but will still be compatible with older systems, as HD and Full HD video resolutions are supported.
PTZOptics has implemented SDI, HDMI, USB, and IP output in every Move 4K camera for easy deployment and better usability. In addition all cameras come with NDI®|HX and are available in 12x, 20x, 30x optical zoom.
Mount your camera in multiple angles using the PTZOptics brackets. The Move 4K has a new video inversion feature which automatically detects the camera's orientation. This feature will save you time on setup and installation. View our brackets here.
The renewed PTZOptics Web UI allows users to PTZ control their Move 4K camera and gives access to the integrated auto-tracking features. Users can also use production software such as OBS, Livestream Studio, Wirecast, vMix, mimoLive or Tricaster.
PT12X-4K-XX-G3 | PT20X-4K-XX-G3 | PT30X-4K-XX-G3 |
12X Optical Zoom | 20X Optical Zoom | 30X Optical Zoom |
Auto-Tracking | Auto-Tracking | Auto-Tracking |
SDI | SDI | SDI |
NDI®|HX native | NDI®|HX native | NDI®|HX native |
HDMI |
HDMI | HDMI |
PoE | PoE | PoE |
SRT | SRT | SRT |
RTSP/ RTMP | RTSP/ RTMP | RTSP/ RTMP |
Serial Control (RS-232/RS-485) | Serial Control (RS-232/RS-485) | Serial Control (RS-232/RS-485) |
3.5mm Audio Embedding Connection | 3.5mm Audio Embedding Connection | 3.5mm Audio Embedding Connection |
Up to 4K @ 60 FPS Resolution | Up to 4K @ 60 FPS Resolution | Up to 4K @ 60 FPS Resolution |
Wide Dynamic Range | Wide Dynamic Range | Wide Dynamic Range |
What’s in the Box:
Specifications

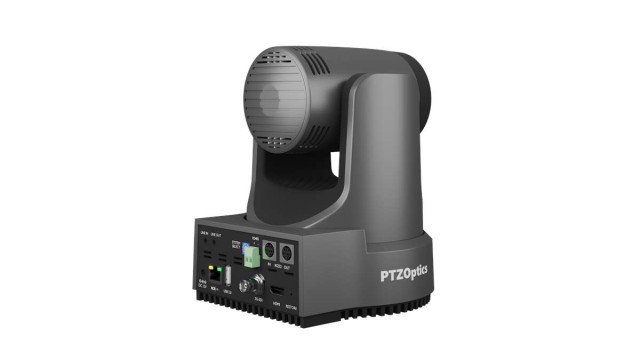

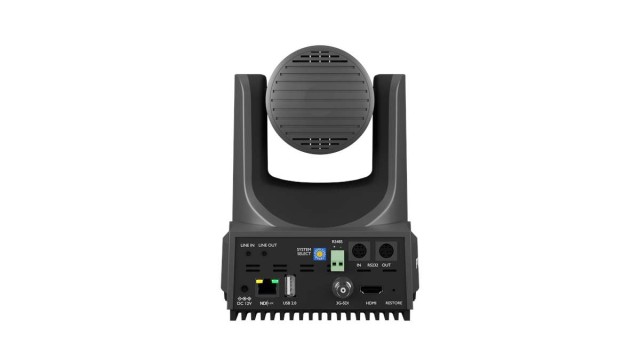

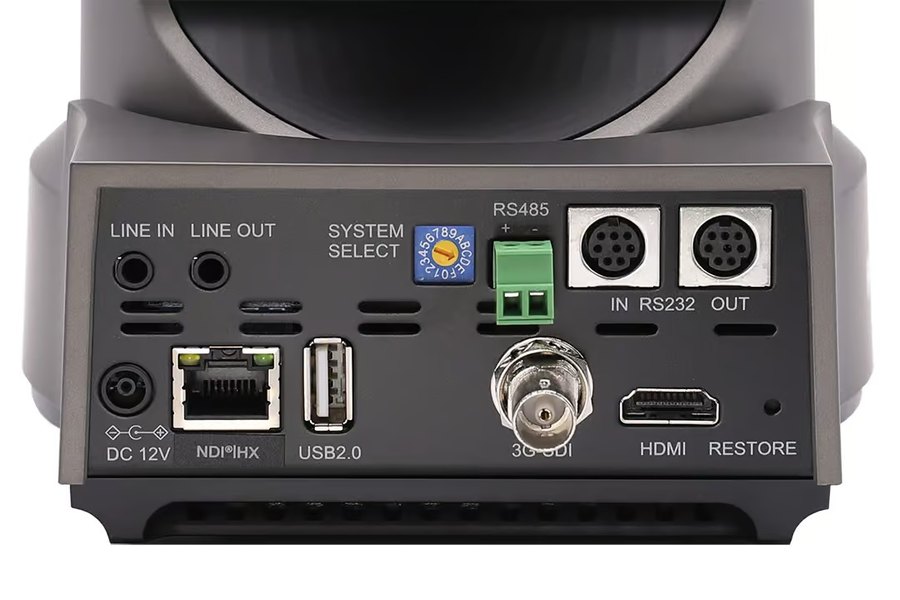

Rear Board
Manufacturer: | PTZOptics |
Category: | PTZ |
Camera Sensor size | 1/2,7" |
Resolution | Full HD |
Resolution | HDV (720p) |

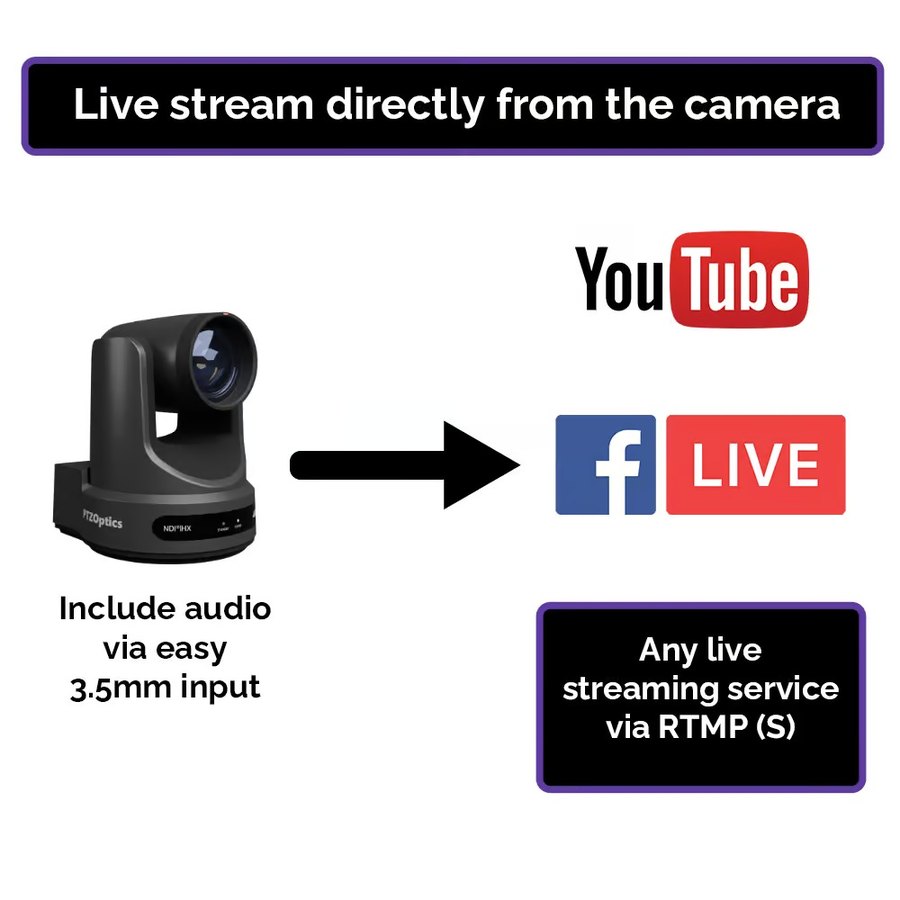

Streaming service types | YouTube Live |
Streaming service types | Facebook Live |
Streaming service types | USTREAM |
Streaming service types | WOWZA |
Streaming service types | RTMP |
Resolution | 4K UHD |
Zoom | 30x |
Internal Recording | No |
Type of bayonet | integrated lens |
Output | HDMI |
Output | SDI |
Output | NDI |
Output | RTMP |
Output | 3G SDI |
Output | USB |
Version | PTZ |
FPS | 4K 60fps |
FPS | HD 60fps |
FPS | UHD 60fps |
Lens lens aperture | 1.8f |
Colour depth | 8 bit |
Colour depth | 10 bit |
Other features | PTZ |
Other features | Streaming |
Other features | PoE |
Other features | NDI / NDI HX |
Control protocol | NDI |
Control protocol | VISCA |
