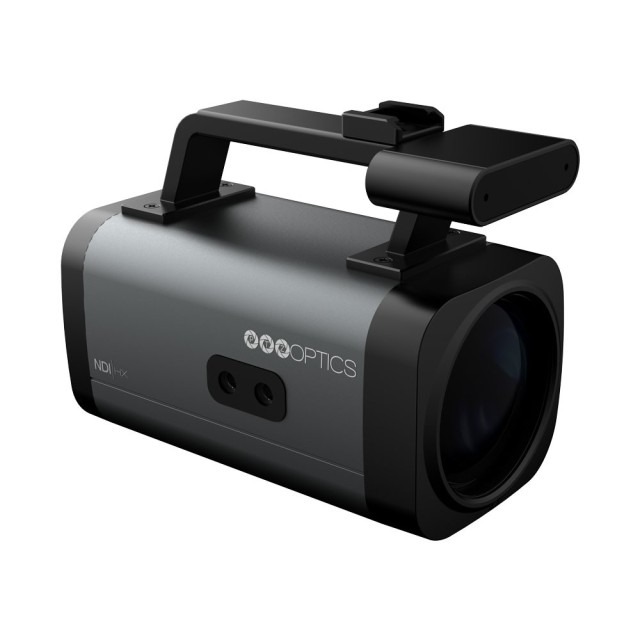

PTZOptics Studio Pro

The PTZOptics Studio Pro is a multi-functional box camera designed for content creation and livestreaming. This 1080P 60fps camera features a 12X optical zoom lens with a 72.5° field of view and a toggle for switching between landscape and portrait mode. The ultra-fast time-of-flight sensor allows the camera to focus moving objects very accurately. Moreover, users can switch between advanced focus settings for beautiful bokeh effects. This camera outperforms many DSLR cameras due to its multi-output capabilities. Simultaneous outputs include USB-C, HDMI, NDI®|HX, RTSP, RTMP.

• Built-in mic with noise canceling
• Premium LED light
• 12X Zoom optical zoom (16X digital zoom)
• USB-C, HDMI, PoE | NDI®|HX, RTSP, RTMP

Flexiblity and compatibility

In contrast to most DSLR cameras, the Studio Pro has HDMI, USB, and IP output capabilities, which can be used simultaneously. This makes this camera ideal for complex setups. In addition, this camera comes with NDI®|HX and does not require to be updated with a license. The Studio Pro can be powered by USB, 12VDC, or POE for flexile deployment.

Additional features

The Studio Pro comes with a premium LED POV light which produces temperatures up to 6000K. This USB-powered light offers different modes from soft white all the way up to crisp daylight. Additional features include a noise canceling microphone array and a cold shoe mount.

Specifications

Key Features

• Plug and Play USB-C Connection
• Precise Focus
• 72.5° Wide Angle Lens
• 1080P HD Image
• NDI®|HX
• HDMI 1.4b
• Standard Cold Shoe mount for A/V accessories Threaded 1/4-20 connection for A/V accessories
• 3.5mm audio input embeds audio into HDMI, USB-C, and IP video streams
• Supports Portrait & Landscape Mode

Camera & Lens

• Video Sensor 1/2.8 inch, CMOS Sensor. Effective pixels: 2.07M
• Resolution 1080P@60 / 50 / 30, 1080I@60 / 50, 720P@60 / 50
• Min. Illumination 0.5 Lux
• Lens 12X Optical Zoom, 16X Digital Zoom
• Horizontal Field of View 6.9⁰ ~ 72.5⁰
• Vertical Field of View 3.9⁰ ~ 44.8⁰
• Scanning Mode Progressive
• Horzantal & Vertical Flip /Image Freeze Supported
• LED Panel Light Color adjustment with warm/natural light and dimming range

Rear Board

• Audio AAC, 96 Kbps, 128 Kbps, 256 Kbps
• Protocols TCP/IP, HTTP, RTMP, ONVIF, DHCP, RTSP, NDI®|HX, Multicast, SRT
• Color System H.264 / H.265 / MJPEG / YUY2
• Video Format YUY2 (ISOC), H.264 SVC, MJPEG: Max. 1080p@60fps
• USB Video Communication Protocol UVC 1.5
• Video Bit Rate 32 ~ 102400
• Input Voltage 5V (USB Power), DC 12v, PoE(802.3af)
• USB-A Type A, Only supplies power to 3rd Party Devices
