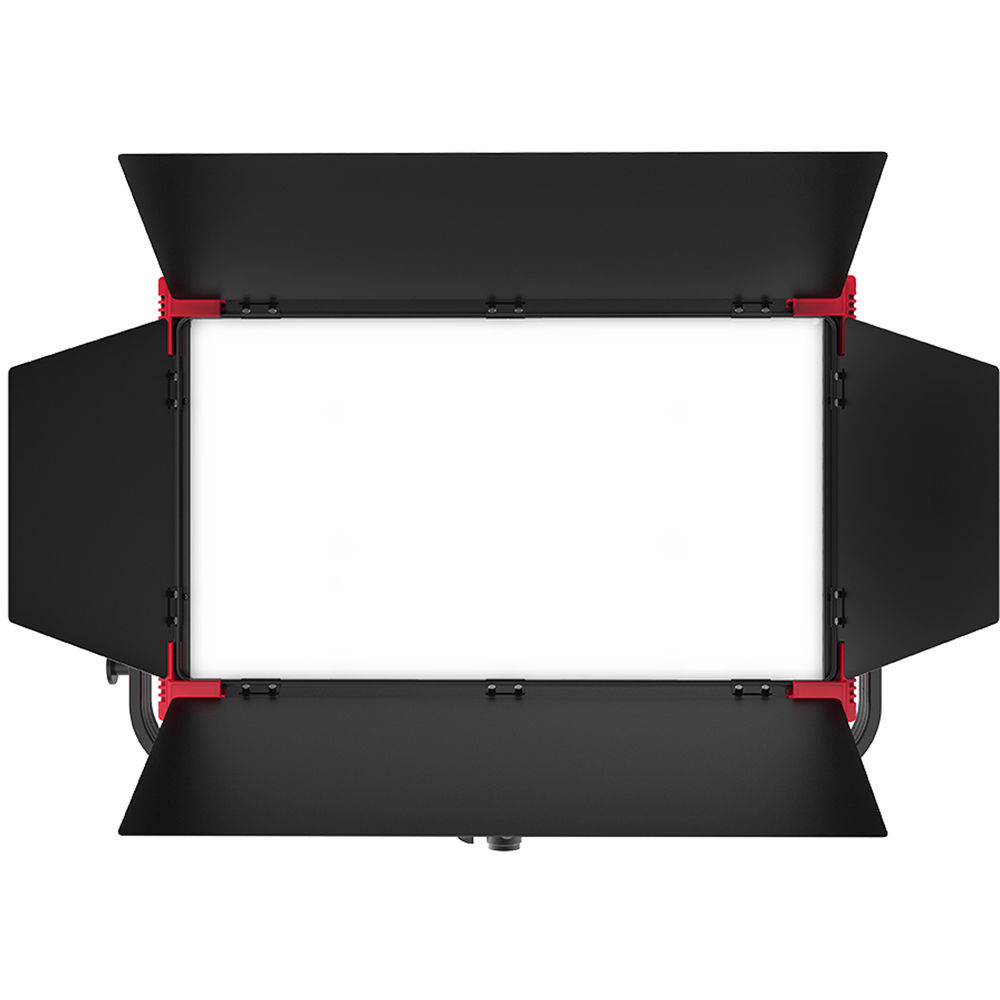

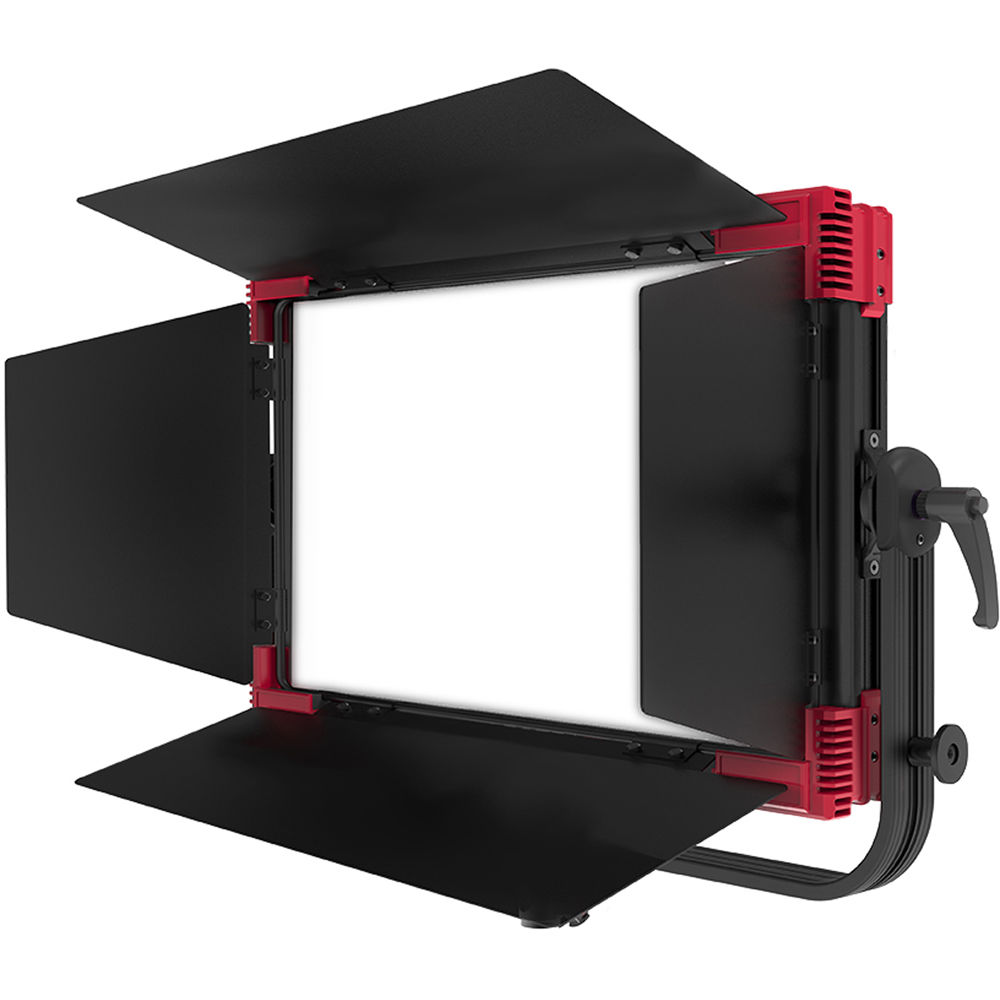

Rayzr 7 MC400 Max

The Rayzr MC 400 Max gives you maximum performance in a thin, compact and lightweight form factor. A 400W LED light cooled efficiently by an ultra-quiet, active cooling system. RGBWW LEDs provide perfect color reproduction in white light and throughout the whole color spectrum for realistic lighting or to support your creative adventures.

Meet the Rayzr MC 400 Max. Keeping the same dimensions as the MC 200 but doubling its output by using 8 ultra-silent active cooling fans to keep 400W of power in a cool and controlled environment for long term stability. Making this brightness available in such a thin and lightweight housing opens up many new opportunities where and how the light can be used and how it can be rigged. Rayzr MC 400 Max: bringing you maximum brightness in minimal size.

• 2 × 1 Panel
• 400 W
• 6 kg
• 10068 lux@1m
• 100% 5600K

Meet the Rayzr MC (MultiColor) Series, advanced RGBWW LED Soft panels that give you the right light in any situation. Source Matching enables you to mimic any light source for consistent results making the MC series a perfect companion to the Rayzr 7 fresnels but also any other lightsources like tungsten lights, fluorescent or the sun. Being fully color tunable, offering a wide color temperature range and white light with perfect color reproduction thanks to RGBWW LEDs, the MC series gives you full creative freedom.

With Source Match you can make your lighting more consistent and save time in post fixing non matching lights. The powerful light engine, utilizing the strengths of RGBWW LEDs, enables you to match any light source. Enter the x/y coordinates you measured and the MC series will be an exact match bringing consistency to your lighting. And with an extended color temperature range from 2400K to 9900k in White-Light mode you can adapt to any ambient light quickly. You can also adjust to a tint in other lights easily with ± Green / Magenta compensation. Using the RGBWW LEDs for color but also to improve white light, the MC series offers excellent color rendition throughout its entire adjustment range.

The MC Series us fully color tunable: select the color you need by HSI values (Hue angle, Saturation, Intensity), x/y coordinates, RGBWW values or by selecting a digital GEL filter from a built-in filter library of more than 300 classic gels. No light loss, no GELS you need to carry with you, all filters digitally built-in. The MC series also comes with a wide range of built-in adjustable lighting effects such as Party, Candle, Club, Cop Car, Fire, Fireworks, Light strobe, Lightning and Television.



You can also shoot at any frame rate and shutter angle without flicker. The base frequency of the MC series can be adjusted to provide flawless high-speed performance at any settings (400 Hz ~ 20,000 Hz). And with a fixed diffuser and a wide beam angle result in a uniform beam field and a truly soft light quality.

Use the MC Series battery operated for hours on location. All models come with a battery plate and run with standard  14.4V V-Mount batteries. A simple to use quick release accessory system lets you mount light shaping tools in a fast and stable way. Barn doors with extra long leafs are included with every panel.

With Wi-Fi and DMX built-in, the MC series is easy to control and integrates well into any environment. The metal housing of the MC Series is designed and optimised for passive cooling through efficient internal airflow as well as acting as a heatsink. The MC100, 120 and 200 are fan-less designs.

Four user-selectable dimming curves provide fine grained control in specific situations: linear being a 1:1 translation, exponential providing fine control in the low end whereas logarithmic provides fine control in the high end and the "s" curve is a combination of exponential and logarithmic.
