RED Connect Module Pack (V-Raptor)
SKU: 790-0741

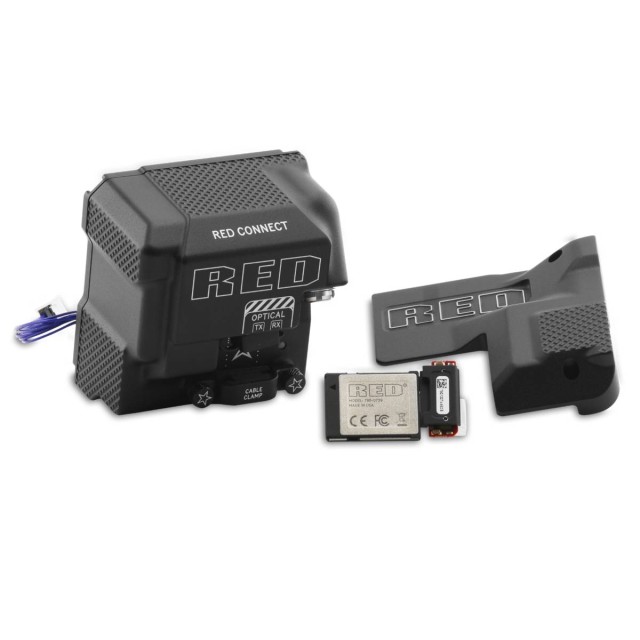

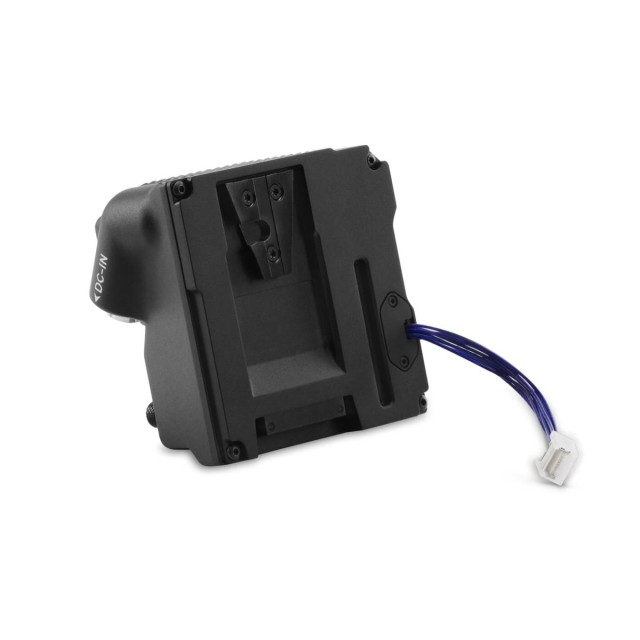

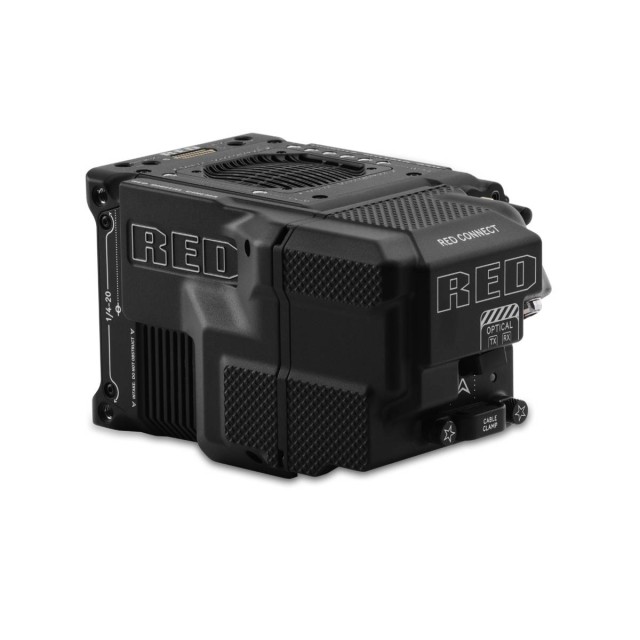

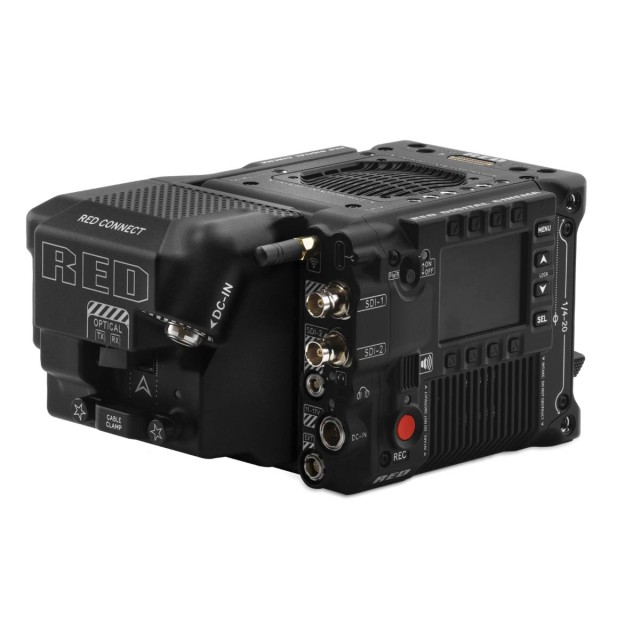

The RED Connect Module connects to your V-RAPTOR or V-RAPTOR XL (V-Lock) camera to unlock 8K live cinematic streaming via the groundbreaking RED Connect solution. RED Connect enables users the ability to stream RAW R3D files direct from the V-RAPTOR and V-RAPTOR XL camera systems over IP to a camera control unit (CCU) in real-time, opening an extraordinary…
17 849 € with VAT
14 751.24 € without VAT
Availability
on request
Top accessories for RED Connect Module Pack (V-Raptor)
RED V-RAPTOR [X] 8K VV
V-RAPTOR [X] 8K VV combines the strengths of RED’s two families of cameras into one
35 699 €
on request
RED V-RAPTOR XL [X] 8K VV (V-Lock)
V-RAPTOR XL [X] 8K VV combines the strengths of RED’s two families of cameras into
48 829 €
on request
Product description
Product description

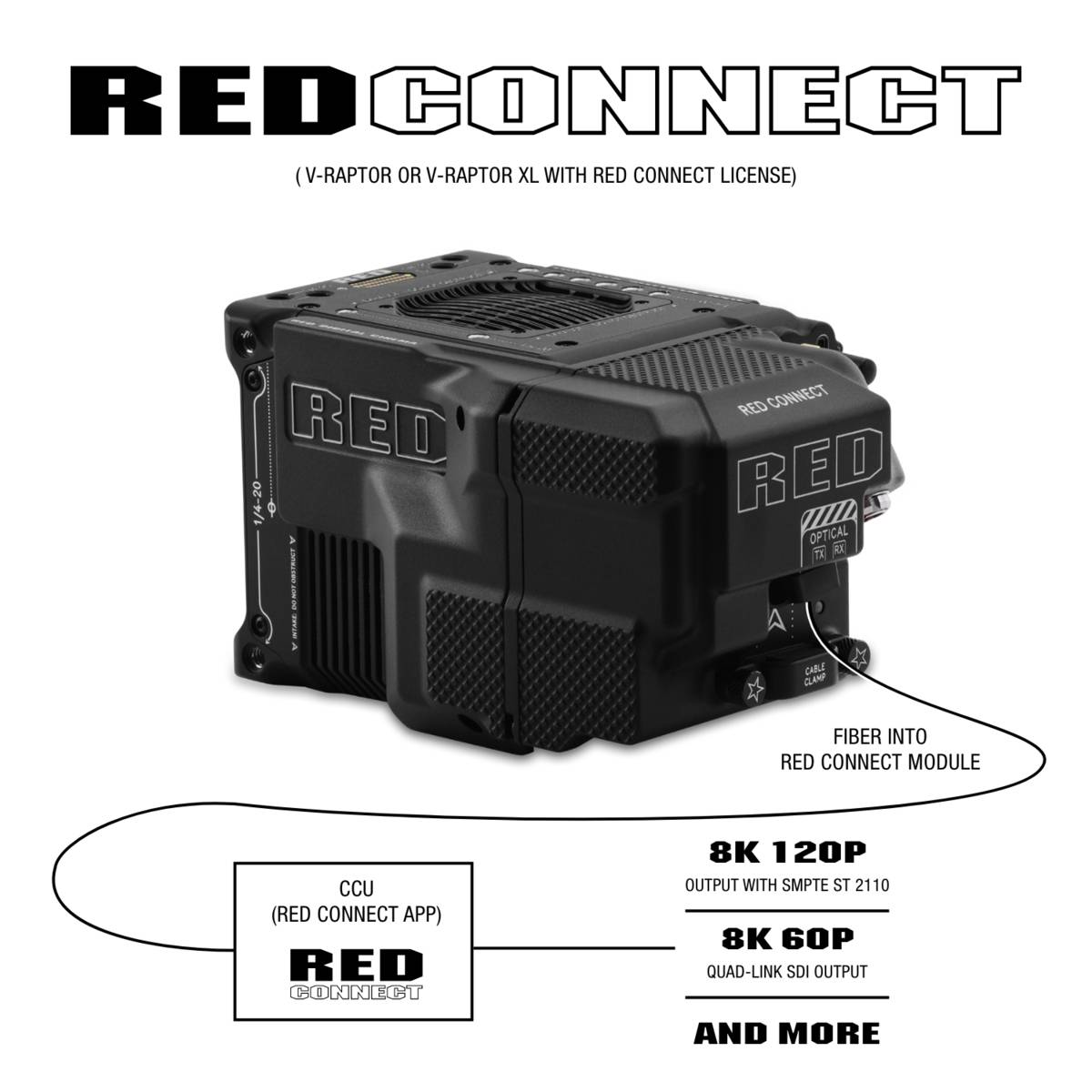

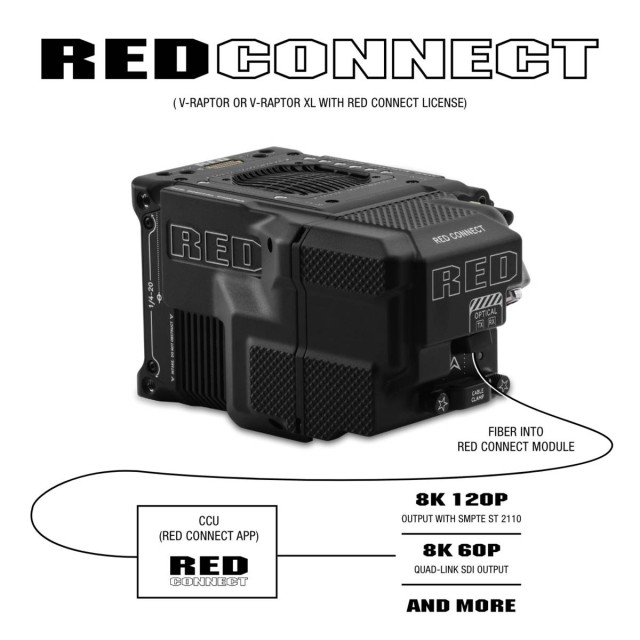

The RED Connect Module connects to your V-RAPTOR or V-RAPTOR XL (V-Lock) camera to unlock 8K live cinematic streaming via the groundbreaking RED Connect solution. RED Connect enables users the ability to stream RAW R3D files direct from the V-RAPTOR and V-RAPTOR XL camera systems over IP to a camera control unit (CCU) in real-time, opening an extraordinary range of creative applications from live broadcast to virtual production to true 8K VR.
Features:
- 8K 120FPS live cinematic streaming over IP (full data range 800MB/s
- Simultaneously stream and record on the CCU
- Genlock and timecode synchronization of multiple cameras using PTP (SMPTE ST 2059-2)
- Compact form factor with easy connectivity to V-RAPTOR and V-RAPTOR XL High-speed 10 Gbps connection via fiber optic cable
Notes: A RED Connect R3D Streaming Software Perpetual, Annual or Monthly License is required to use the RED Connect Module. Please contact a RED Sales Representative to purchase a license or additional information.
WE RECOMMEND
The RED Connect Module Pack is a specialized expansion device for V-RAPTOR system cameras that enables high-speed, real-time IP streaming of 8K RAW video. For proper operation and integration into the production workflow, the module must be used in conjunction with compatible DSMC3 camera bodies and high-quality connectivity infrastructure.
Compatible Cameras - Basic V-RAPTOR series camera systems to which the RED Connect module connects directly.
Cabling and Connectivity - High-quality SDI cables and adapters to ensure reliable signal transmission and protect connectors.
- Canare L-1.5C2VS RED BNC 0.5m
- Canare L-1.5C2VS RED BNC 0.3m
- Canare CB04 RED BNC connector cap (red)
- Canare BCP-DCJ Adapter
- Canare BCJ-DCJ Adapter
Viewfinder Accessories - Comfortable eyecup padding designed specifically for RED camera systems.
- Eyecushion RED SPECIAL Microfiber Red
- Eyecushion RED SPECIAL Fleece Red
- Eyecushion RED SPECIAL Microfiber Blue
- Eyecushion OVAL S Microfiber Red
- Eyecushion OVAL M Fleece Red
Audio and Other Accessories - Accessories for audio connectivity, mounting, and transport of the entire camera kit.
Parameters
| Manufacturer: | RED |
| Category: | Signal converters |
