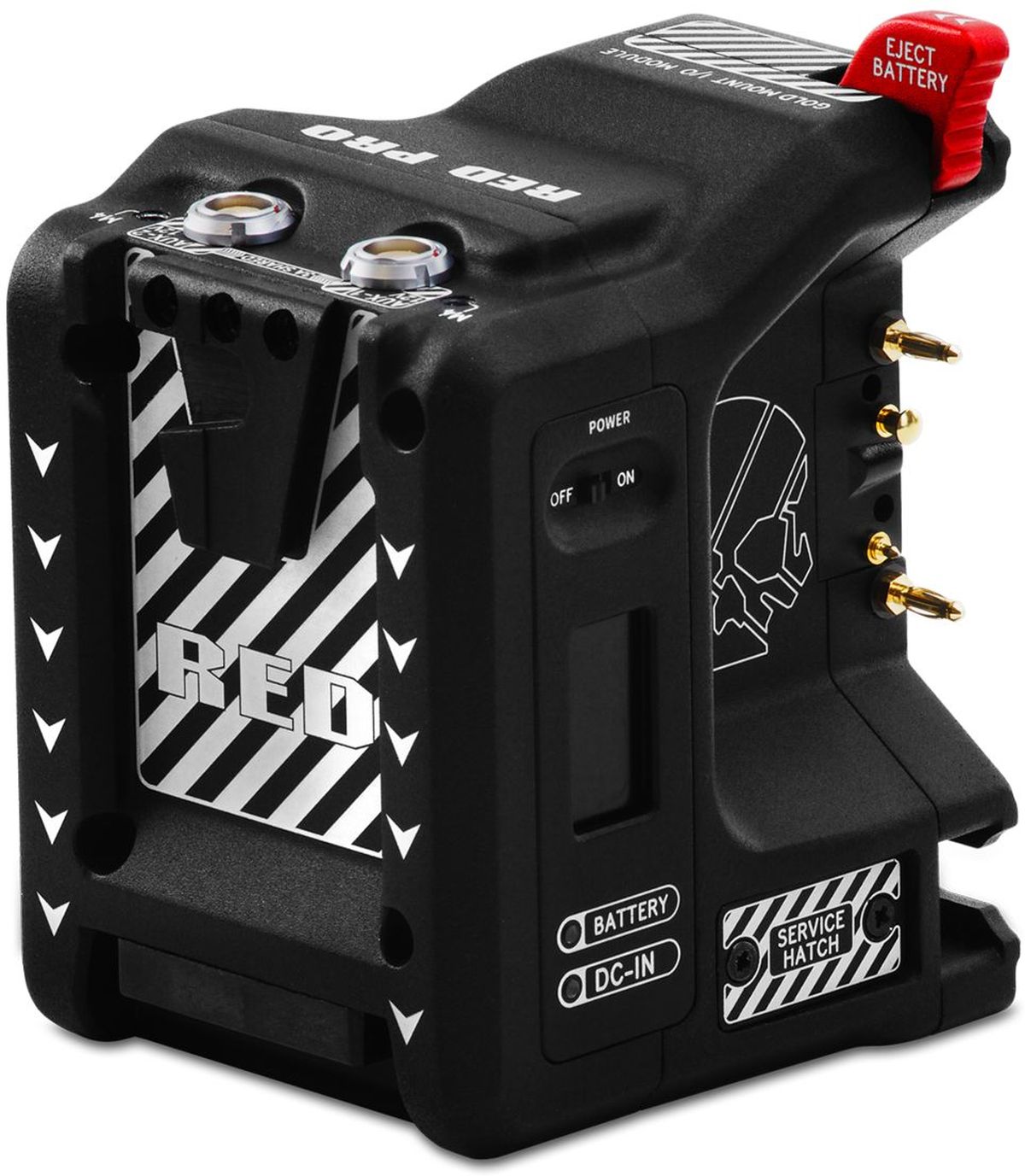

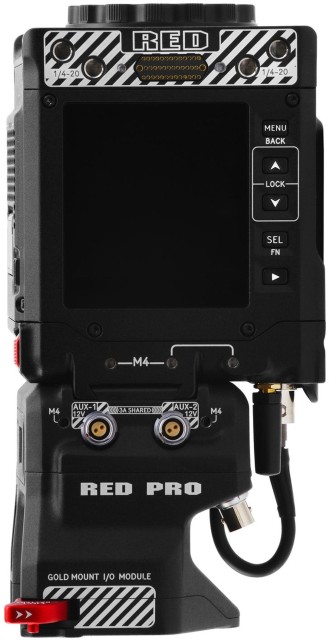

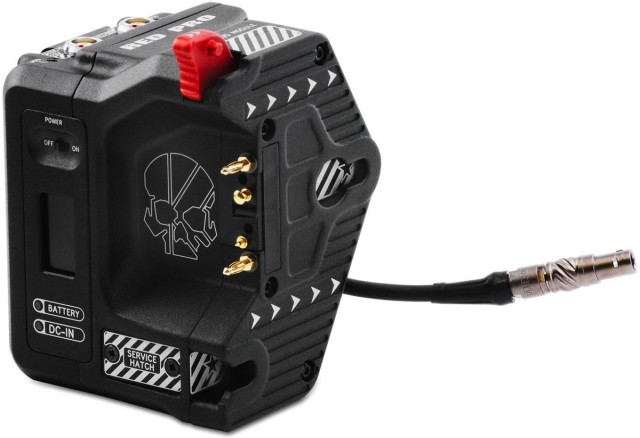

RED Pro I/O Gold Mount Module

The RED Pro I/O Gold Mount Module offers a variety of Input/ Output connections, as well as an industry standard Gold Mount mount to power your Komodo-X with higher capacity batteries. This module mounts directly to the Komodo-X’s rear Micro V-Lock plate, 9-Pin Ext Port and offers connections for the following:

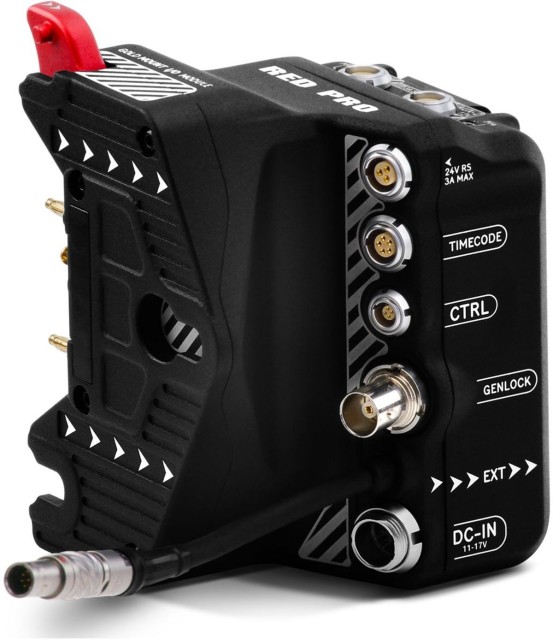

• DC Power Input (DC-IN)
• Genlock (BNC)
• CTRL (4-Pin)
• Timecode (5-Pin)
• 1x 3-Pin 24v (Regulated) Fischer R/S port (3A Max)
• 2x 2-Pin 12v (Un-Regulated) AUX ports (3A Combined Max)

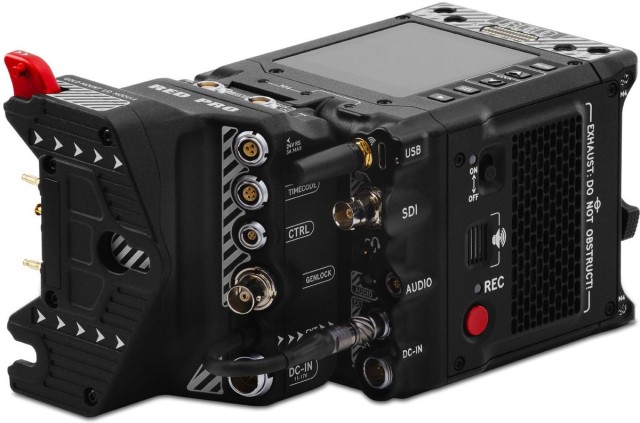

The module also includes an operator side LCD which displays key power voltage and battery percentage information (with compatible batteries) and a power switch to cut power to the module when leaving a battery on the module for long durations. Designed for Komodo-X and compatible with V-Raptor.
