RED V-RAPTOR TACTICAL TOP PLATE W/ BATTERY ADAPTER (V-lock)

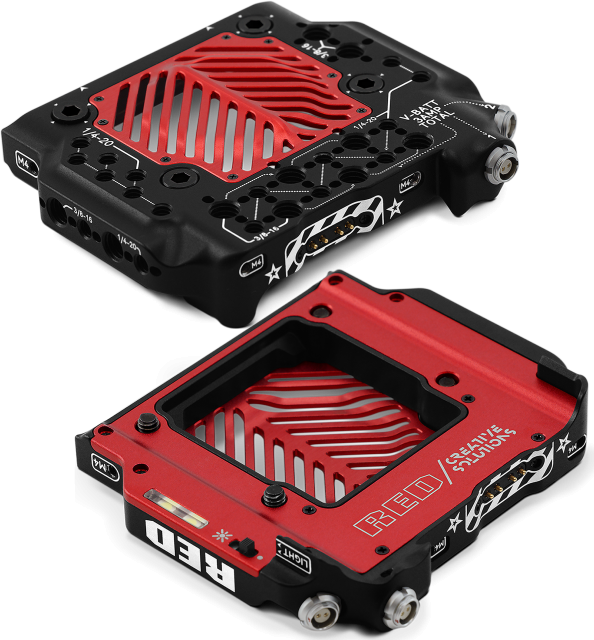

The V-RAPTOR™ Tactical Top Plate provides a way to securely mount a larger battery to the back of the camera and mount/ power accessories from the Top Plate. The Top Plate includes two 2-Pin Aux power outputs, assistant side LED light, multiple 3/8-16 & ¼-20 mounting threads and pogo connection system to interface with the battery adapter.

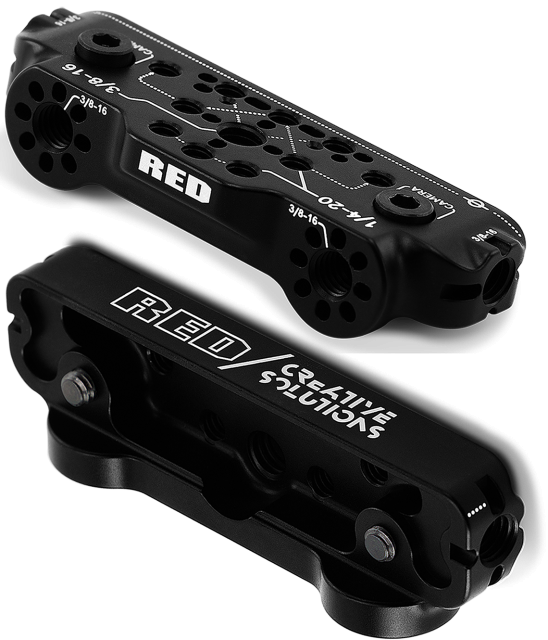

The Front Cheese Plate provides additional 3/8-16 & ¼-20 mounting threads. This plate is required for attaching the V-RAPTOR™ Top Handle and Extensions when the V-RAPTOR™ Tactical Top Plate is installed.

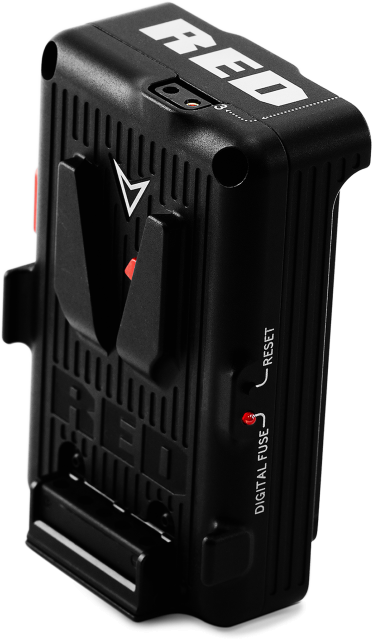

The V-Lock and Gold Mount battery adapters include a P-tap/D-tap and an E-Fuse safety system and pogo connection system to interface with the Top Plate. These adapters allow the camera to accept full-size V-Lock and Gold Mount batteries.

You can use the V-RAPTOR™ Tactical Top Plate with the DSMC3™ RED® Touch 7.0" LCD, V-RAPTOR™ Top Handle and Extensions, Outrigger Handle, and included Front Cheese Plate.

NOTE: The SMBUS Pass-through feature is only available on the V-Lock Battery Adapter.

NOTE: The V-RAPTOR Tactical Top Plate w/ Battery Adapter is not compatible with DSMC^®, DSMC2^®, RED RANGER^® or KOMODO^® camera systems.

For issues or troubleshooting, contact support@cs.inc.

The V-RAPTOR™ Tactical Top Plate and Battery Adapter bundles include:

To attach the Top Plate:

1. Align the four screws with corresponding ¼-20 holes behind the POGO connection point on the top of the camera and tighten down each screw following a cross shape pattern to ensure even distribution of pressure on the plate.

2. Next you can choose to attach the Front Cheese Plate, DSMC3™ RED® Touch 7.0” LCD or Outrigger Handle in-front of the Top Plate.

3. Next to attach the Battery Adapter slide the adapter onto the rear V-Lock plate on the camera body and secure both top screws to the Top Plate to ensure a rigid connection.

NOTE: You may need to slightly loosen the Top Plate screws to get the Battery Adapter screw to align with the top plate.

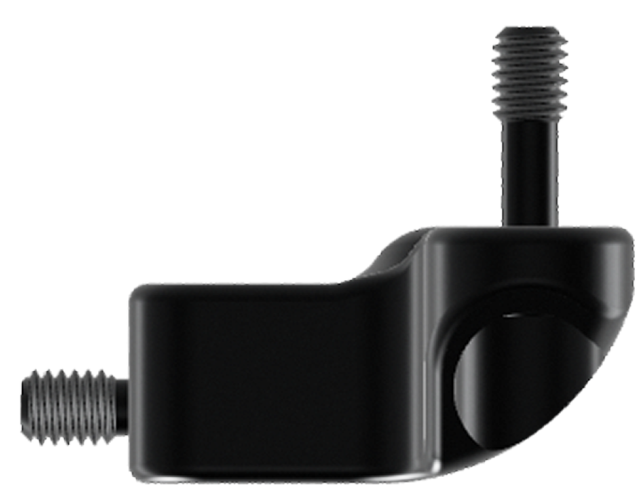

You can attach the Battery Support Bracket to the bottom of the Battery Adapter and the rear of the Arca Plate (included with Expander Blade & Quick Release Platform Pack) for additional support.
