Sachtler Studio 9+9

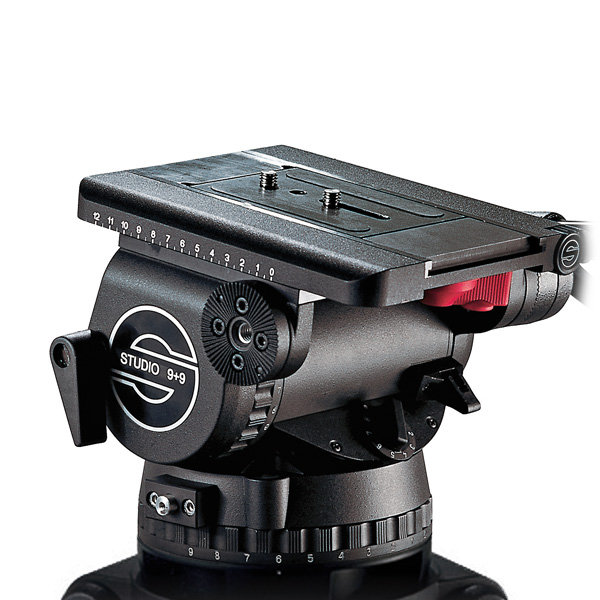

Sachtler Studio 9+9 Fluid Head with Touch & Go Camera Plate and Pan Bar

More information

Call us for pricing information
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sachtler Studio 9+9 Fluid Head with Touch & Go Camera Plate and Pan Bar

When you need super smooth movement, even in the toughest of conditions, Sachtler’s Studio 9+9 Fluid Head adds two drag levels to Sachtler’s frictionless damping system. Its 18-step counterbalance system means you never have to worry about losing your balance during any kind of movement. The sliding plate with an integrated spindle drive makes centering the camera weight simple and fast – the plate settings can be locked into place once you are happy.

The Studio 9+9 supports up to 55 kg and also boasts many well-known Sachtler features. The Touch & Go quick release and automatic locking make mounting and removal a matter of seconds. The durability of the design means that pressure of temperature will never affect its performance, making it suitable for almost any kind of project.

PACKAGE CONTENT

  • Studio 9+9 fluid head with one pan bar Movie and one camera plate Touch & Go 35

SPECIFICATIONS

Range Studio
Payload 8 to 55 kg
Counterbalance 18 steps
Weight 9.4 kg
Drag 9 + 0 drag settings
Pan bar lenght 430 to 600 mm
Pan bar type Pan bar Movie
Pan bar attachment 20/25/32 mm
Pan bar count 1, telescopic
Level bubble Yes, illuminated
Battery type 3 x 625U or LR9
Adaptor viewfinder extension Included Adaptor
Bowl size 150 mm
Flat base Integrated
Camera plate Touch & Go plate 35
Temperature range -40 to 60 °C
Tilt range +90° to -60°
Sliding range 115 mm
Interface Compatibility
Touch & Go
Parameters

Parameters

Manufacturer: Sachtler
Category: Tripods - accessories

Main parameters

Payload55
Ball Type150
Tirpod Payload55kg
