Sachtler System Ace XL MS AL

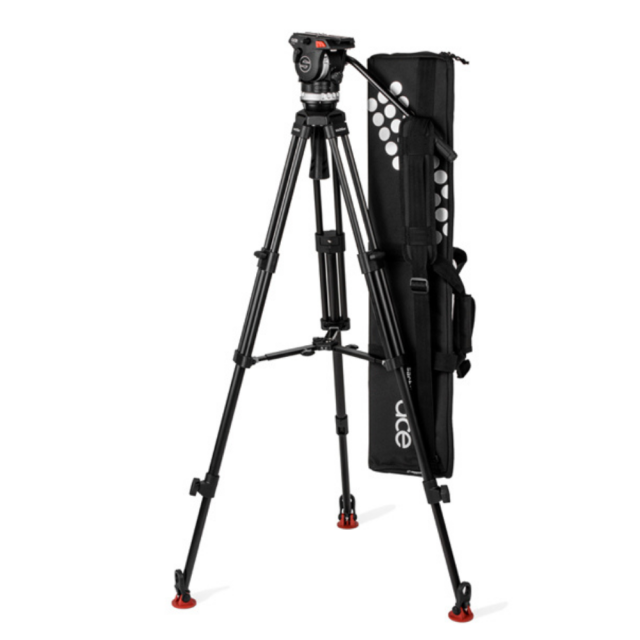

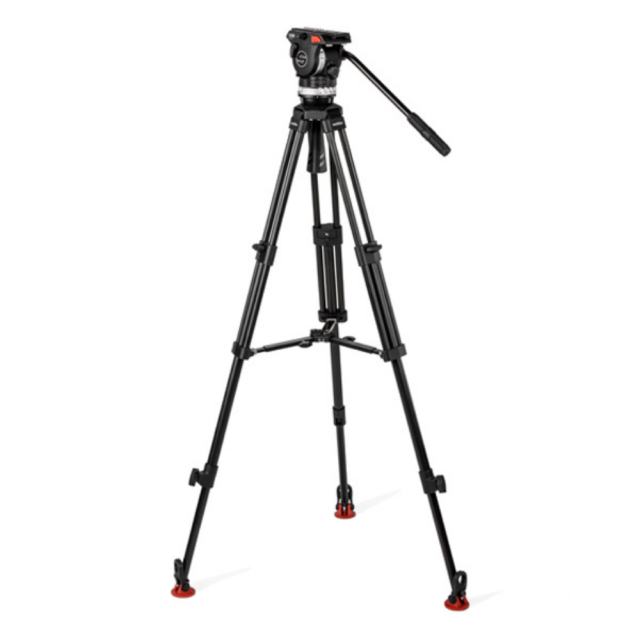

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.

More information

1 349 € with VAT 1 114.88 € without VAT
-+
Personal pickup within 90 minutes
Shipment day: Tomorrow
In stock 1 pcs
Praha 1 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Ace XL Tripod is exclusively available as a package with a 75 mm fluid head and a useful transport bag. Anybody who works on uneven ground and “on location” would have an advantage with the two-stage extension tripods featuring a mid-level spreader.

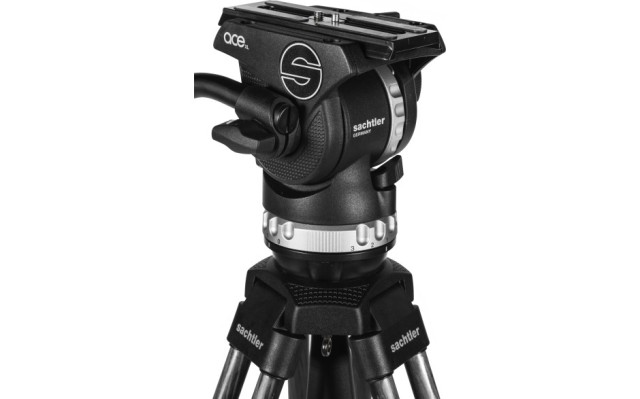

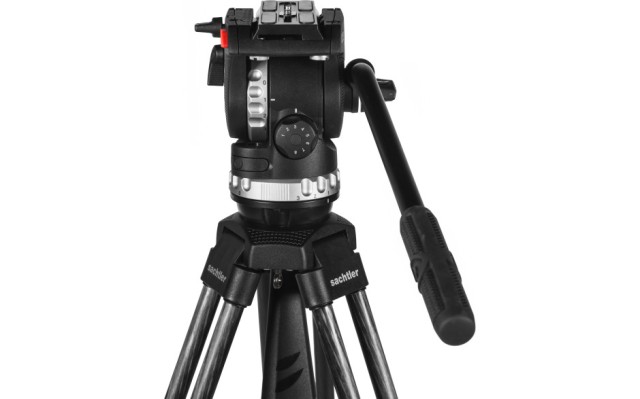

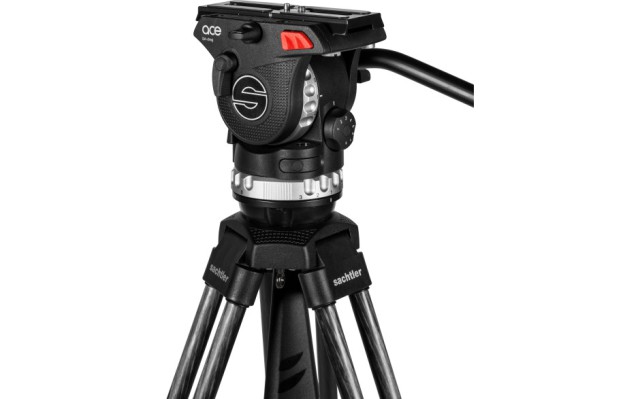

Professional performance means maximum stability and jerk-free camera movement, even when supporting heavier digital cine-style cameras and rigs. The Sachtler Ace XL Fluid Head supports up to 8 kg and the eight counterbalance steps mean that camera balancing is always quick and simple. The lightweight design means that it won’t weigh you down, while the high degree of stability means that it won’t let you down either.

A range of features make the Sachtler Ace XL Fluid Head a versatile part of your kit. The 75 mm ball-based head has an integrated flat bottom designed to accommodate a wide range of configured rigs. The integrated flat head base means that the Ace XL can be modified for shooting with a slider. Once you have set up, the three steps of pan and drag plus zero allow for effortless smooth movement. Durable, lightweight and designed with the user in mind, this fluid head will remain a part of your kit for years.

PACKAGE CONTENT

  • Ace XL
  • Padded bag Ace
  • Tripod 75/2 MS AL

SPECIFICATIONS

  • Range: Ace
  • Pan bar count: 1
  • Payload: 2 to 8 kg
  • Bowl size: 75 mm
  • Weight: 4.50 kg
  • Spreader type: Mid-level spreader
  • Material: Aluminium
  • Transport length: 860 mm
  • Tripod stages: 2
  • Height with spreader: 0.79 to 1.70 m
  • Temperature range: -30 to 60 °C
  • Tilt range: 90° to -75°
  • Sliding range: 104 mm
  • Interface Compatibility: Slide-in
  • Counterbalance: 8 counterbalance steps
  • Drag: 3 + 0 horizontal and vertical grades of drag
Parameters

Parameters

Manufacturer: Sachtler
Category: Tripods

Main parameters

TypeFluid head
Ball Type75
Spacer typeMedium
Tripod Load capacity8kg
