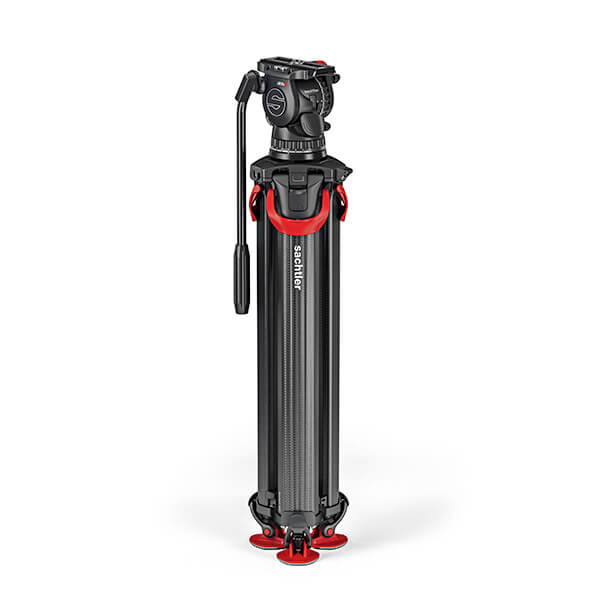

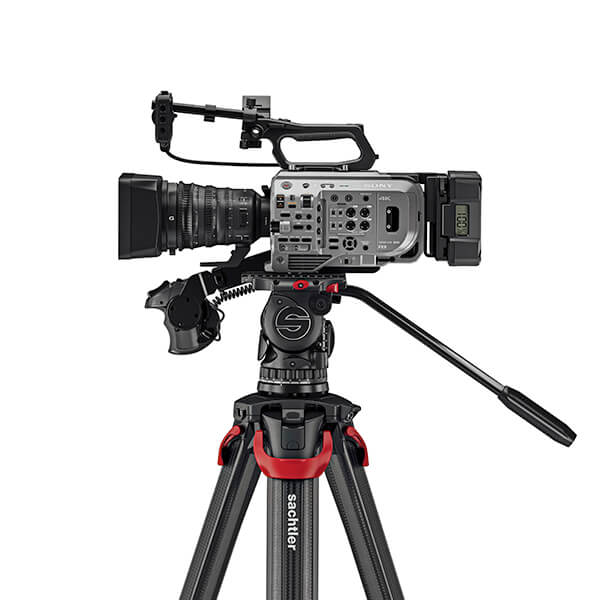

Sachtler System aktiv10 flowtech100

Weighing only 6.3 kg (13.9 lbs.) the aktiv10 flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing…

More information

Call us for pricing information
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Weighing only 6.3 kg (13.9 lbs.) the aktiv10 flowtech100 system is both lightweight and durable, designed to be a long-serving and high-performing part of your kit. This system is the perfect choice for professional medium-sized camcorders and digital Cine camera set ups of up to 12 kg (26.5 lbs.). 15 counterbalance steps allow for fast and precise balancing of your camera. Its sideload mechanism with a long sliding range of 120 mm make loading and positioning the camera quick and easy. Seven drag settings provide smooth and fast to adjust drag performance without jolts or vibrations. The illuminated PrismBubble with top or side view makes levelling easy from any height.

Fluid Head
The aktiv10 fluid head with unique SpeedLevel™ technology can be levelled in seconds giving you time to get the perfect shot in documentary, corporate, news or wildlife applications. The SpeedSwap™ system delivers the fastest way to switch between tripod and slider in seconds giving you ultimate flexibility.

Tripod

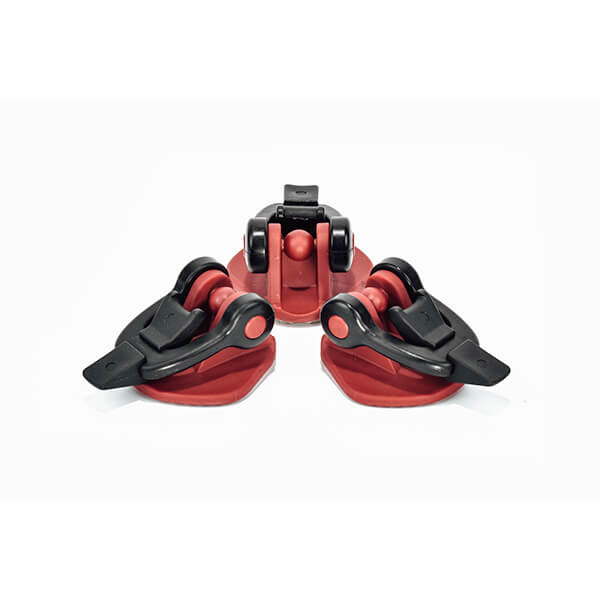

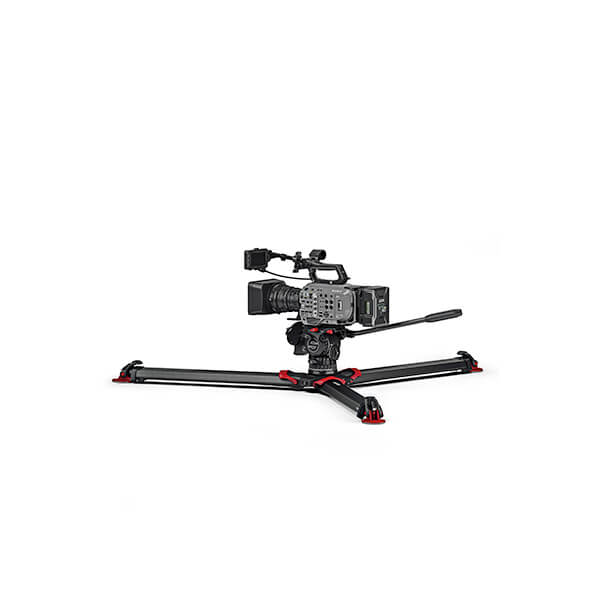

Capture the widest range of shots in the shortest time with aktiv10 combined with flowtech100. With no bowl clamp required, flowtech can go flat to the ground for extreme low-angle shots – using the versatile hinge lock mechanism of flowtech. The system delivers the widest height range. The 2-stage carbon fibre flowtech tripod with high torsional stiffness has unique quick release brakes which can be deployed and adjusted in an instant. Its ergonomic design makes the tripod comfortable to carry, on shoulder or carry handle, no matter where your creativity takes you. flowtech comes with a quick attach rubber foot mechanism. When you are ready to move on, the legs are hold together by a magnetic lock for transportation.

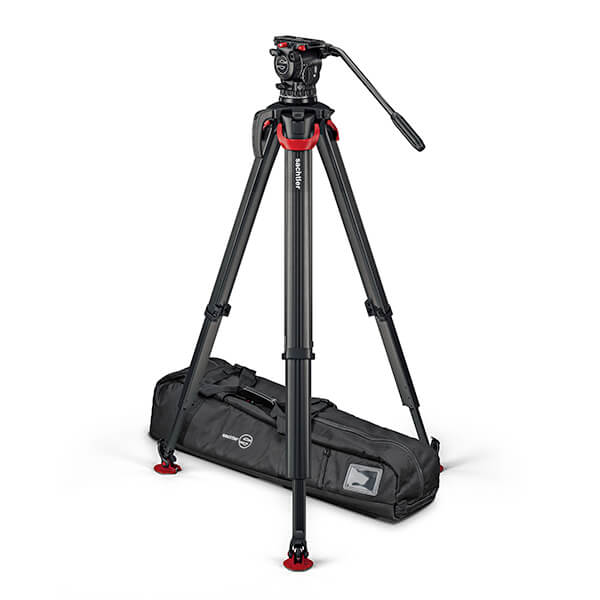

PACKAGE CONTENT

  • Padded bag ENG
  • Tripod flowtech®100 with rubber feet
  • Carry handle flowtech, rotating
  • aktiv bowl connector 100mm
  • aktiv10

SPECIFICATIONS

  • Range: aktiv
  • Pan bar count: 1
  • Payload: 0 to 12 kg
  • Bowl size: 100 mm
  • Weight: 6.30 kg
  • Spreader type:b No spreader
  • Material: Carbon Fibre
  • Transport length: 870 mm
  • Tripod stages: 2
  • Height Range without spreader: 0.23 to 1.70 m
  • Temperature range: -40 to 60 °C
  • Tilt range: 90° to -70°
  • Sliding range: 120 mm
  • Interface Compatibility: Sideload
  • Counterbalance: 15 + 0 counterbalance steps
  • Drag: 7 + 0 drag settings
Parameters

Parameters

Manufacturer: Sachtler
Category: Tripods

Main parameters

TypeFluid head
Tirpod Payload12kg
