Lens Samyang 85mm T1.5 VDSLR II for Sony E-mount.
Lens Samyang 85mm T1.5 VDSLR II for Sony E-mount.
Samyang Optics 85mm T1.5 VDSLR AS IF UMC II is a semi-telephoto manual focus cine lens designed for full frame sensor sizes.
Cine Lens FeaturesSamyang 85mm T1.5 VDSLR AS IF UMC II is carefully designed for professional film and video works so the focus gear ring is installed for follow focus system. You may change the aperture quietly and smoothly with the uncoupled aperture gear ring. Also, distance scale and T numbers are marked on both sides of the lens for convenience.

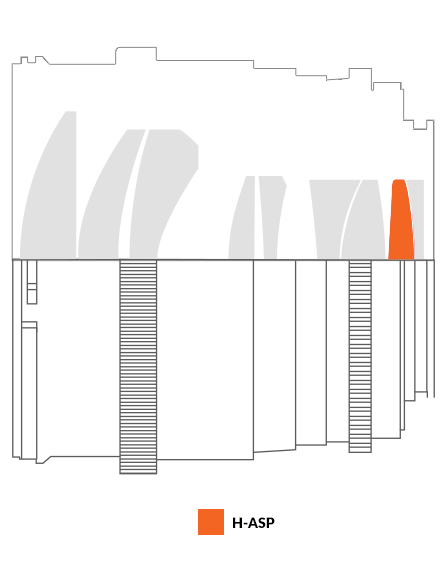

Optical FeaturesAs Samyang 85mm photo lens does, this VDSLR lens also has an outstanding optical function. Optical lenses feature 9 lenses in 7 groups. Hybrid aspherical lens (H-ASP) has a specially designed curved surface to minimize color aberration and realize exceptional image quality and high contrast throughout center to corner of image even when aperture is fully opened. Samyang 85mm T1.5 II is an inner focus lens. The length of lens does not change when focusing so it is dustproof. Ultra Multi Coating (UMC) technology of Samyang Optics optimizes the light penetration and minimizes flare and ghost. There are 8 aperture blades designed to be almost as a full circle when aperture is closed which expresses starlike ray clearly and beautifully.
Hardware FeaturesSamyang VDSLR lens can be used both in photography and cinematography, perfect for amateurs and professionals. The frame of the lens is compact and solid since it is made of high-strength aluminum alloy so trustworthy images can be captured even under inferior environment. Also, detachable petal-shaped lens hood shelter the lens from unnecessary lights. Filter size is 72mm.
Available for 9 camera mounts: Canon, Canon-M, Nikon, Pentax, Sony ∝, Sony-E, MFT, Samsung NX, and Fujifilm-X.
Samyang 85mm T1.5 II is one of Samyang Optics VDSLR lens line for full frame image sensor size. The lenses produce the same image color and have a united location of aperture and focus gear ring to maximize the convenience when filming.
※ Size and design may vary depending on the mount of a lens
Lens Samyang 85mm T1.5 VDSLR II for Sony E-mount.
Specifications | 85mm T1.5 VDSLR AS IF UMC II | |||||||||
Aperture Range | T1.5 ~ T22 | |||||||||
Optical Construction | 9 ELEMENTS IN 7 GROUPS (1 Hybrid ASPHERICAL LENS) | |||||||||
Minimum Focusing Distance | 1.1m (3.6ft) | |||||||||
Filter Size | 72.0mm | |||||||||
Maximum Diameter | 78.0mm | |||||||||
Mount | NIKON F | CANON EF |
PENTAX K |
SONY A |
CANON M |
FUJIFILM X |
SAMSUNG NX |
SONY E |
MICRO FOUR -THIRDS |
|
Angle Of View | 35mm | 28.3˚ | 28.3˚ | 28.3˚ | 28.3˚ | - | - | - | 28.3˚ | - |
APS-C | 19.1˚ | 17.7˚ | 19.1˚ | 19.1˚ | 17.7˚ | 19.1˚ | 19.1˚ | 19.1˚ | - | |
FOUR-THIRDS 4/3” |
- | - | - | - | - | - | - | - | 14.4˚ | |
Length(mm) Lens Mount to Front |
72.2mm | 74.7mm | 73.2mm | 74.2mm | 100.6mm | 101.0mm | 93.2mm | 100.7mm | 99.5mm | |
Weight(g) | 560g | 580g | 550g | 570g | 640g | 645g | 595g | 605g | 595g | |
Gear | Module | 0.8mm | ||||||||
A | 7mm | |||||||||
B | 4mm | |||||||||
C | 43.8mm | |||||||||
D | 8mm | 10.5mm | 9mm | 10mm | 36.4mm | 36.8mm | 29mm | 36.5mm | 35.3mm | |
Focus Ring Diameter | 81.6mm | |||||||||
Aperture Ring Diameter | 70.4mm | 73.6mm |
Manufacturer: | Samyang |
Category: | Lenses |
Bayonet | E-mount |
Lens Type | Fixed Glass |
Aperture (f) | 1.5 |
Focal length | 85mm |
Series | Samyang VDSLR MK2 |
