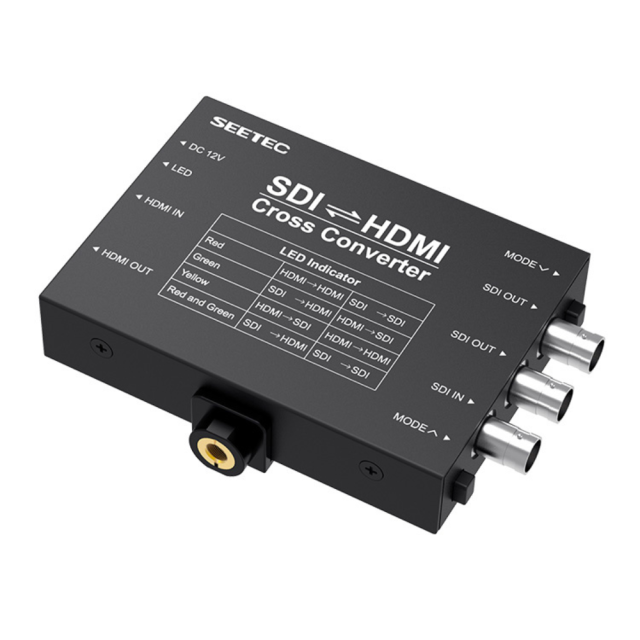

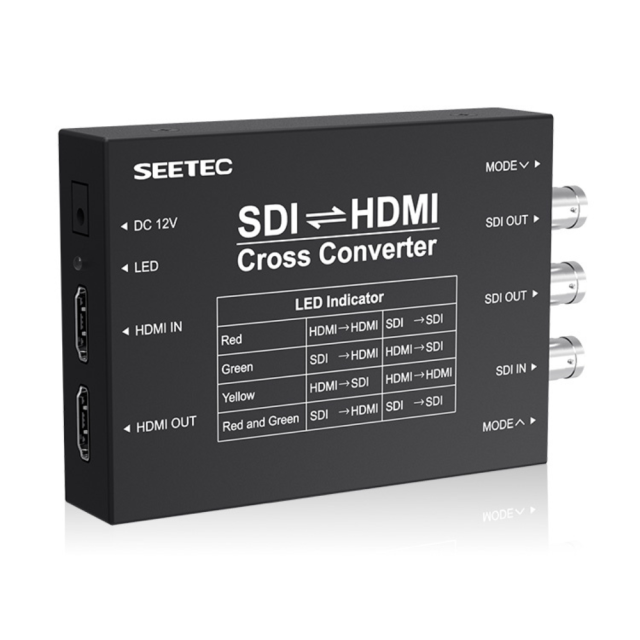

Seetec SCH SDI-HDMI Cross Converter

Bidirectional 3G/HD/SD-SDI to HDMI converter with F970 battery power.

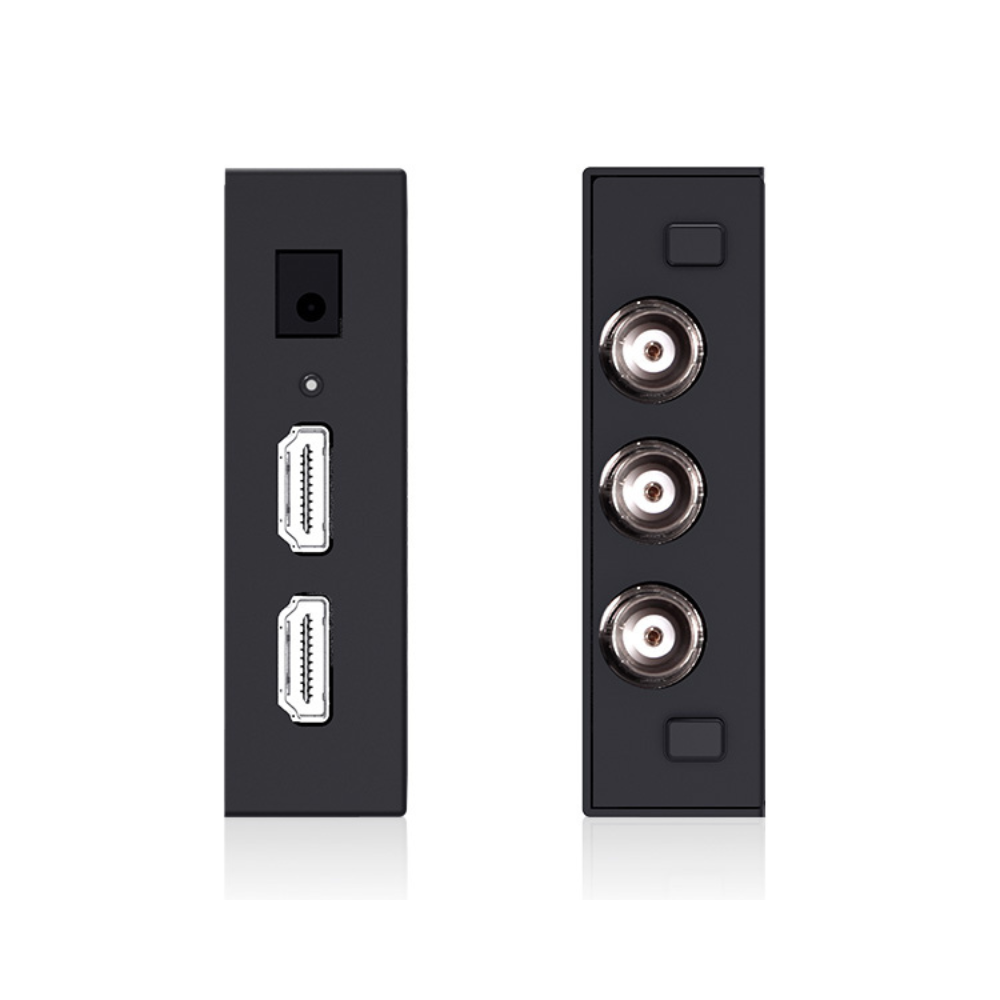

• Inputs: 1x 3G/HD/SD-SDI, 1x HDMI
• Outputs: 2x 3G/HD/SD-SDI, 1x HDMI
• Compatible with SMPTE 424M, SMPTE 292M, SMPTE 259M
• Standard 1/4-20" mounting thread
• Power, conversion mode indicators
• Rugged aluminum body

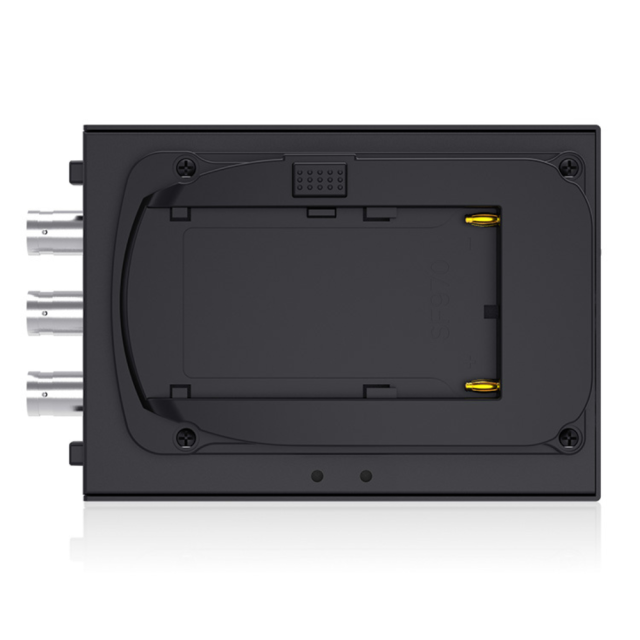

• Can be powered by F970 batteries, 12 V= (5-24 V=/ ≤4.2 W) power input
• Dimensions 108,5x78,8x23, weight 230g/ 260g (incl. F970 plate)

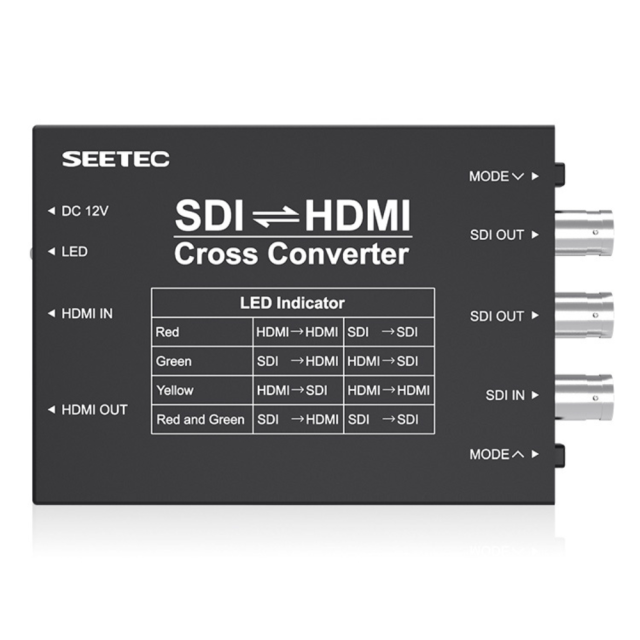

Modes:

• HDMI to HDMI, SDI to SDI (indicated by red LED)
• SDI to HDMI, HDMI to SDI (green LED)
• HDMI to SDI, HDMI to HDMI (yellow)
• SDI to HDMI, SDI to SDI (flashing red/green)
