Full control over your performance – everywhere, every day. The G4 In-Ear Monitoring Sets make your gig an extraordinary experience – not just for your audience, but also for you!

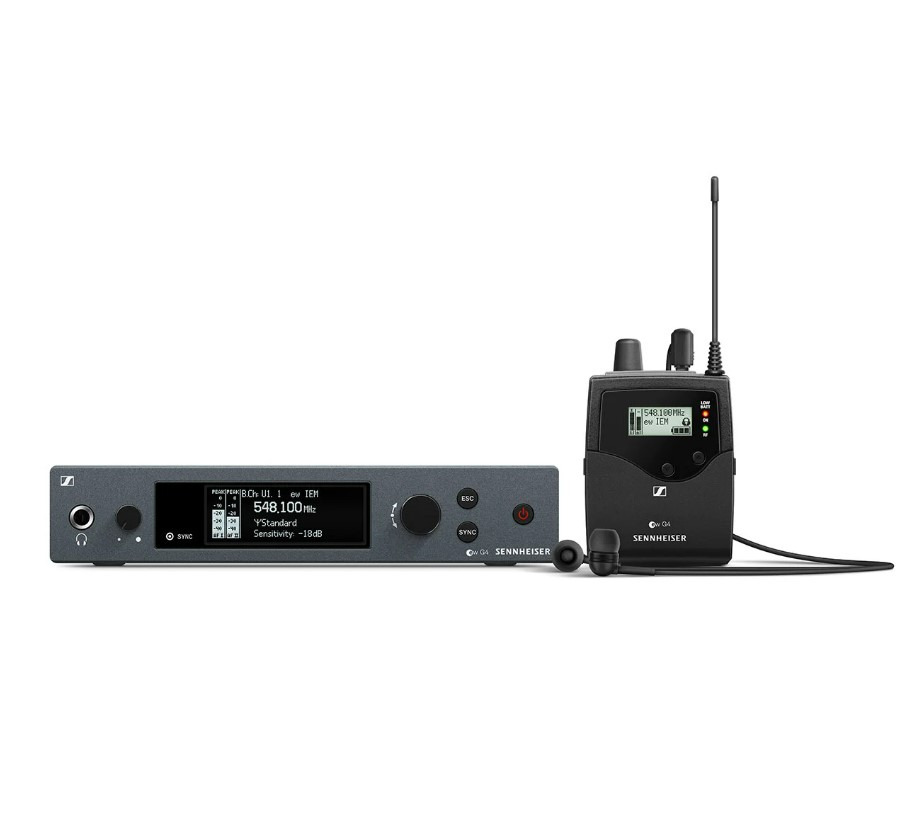

Engineered for professional live sound: Rugged all-in-one wireless monitoring system for in-ear applications.

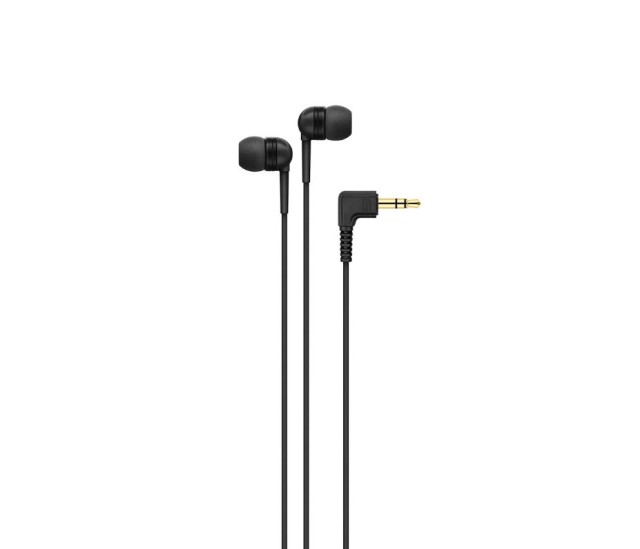

Robust bodypack receiver and reliable in-ear monitoring IE 4 headphones delivering clarity along the whole frequency spectrum for daily use on stage

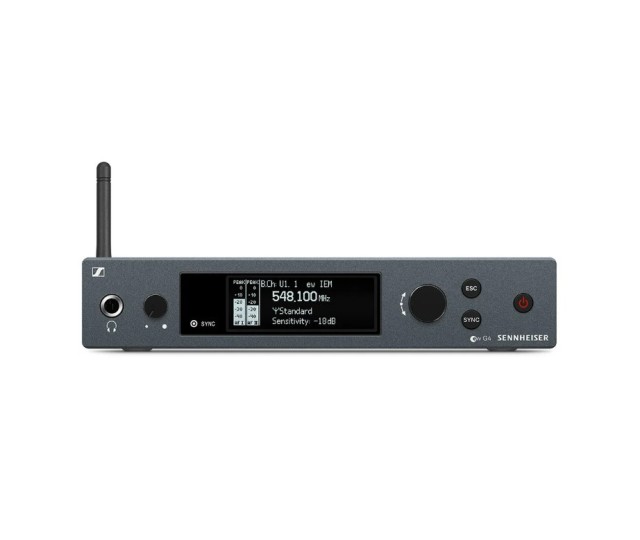

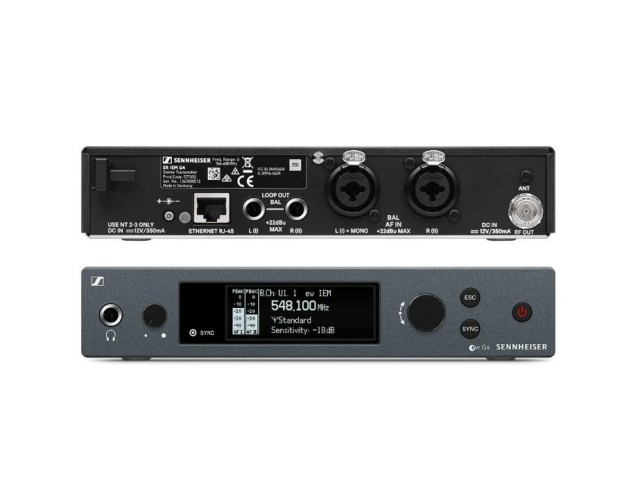

Half-rack stereo transmitter in a full-metal housing with OLED display for full control
Easy and flexible wireless synchronization between transmitter and receiver via infrared
Compatible with Sennheiser WSM control software for flexible frequency allocation
Up to 16 compatible channels
Up to 42 MHz bandwidth with 1680 selectable frequencies, fully tunable in a stable UHF range
Transmission Range: up to 100 meters / 300 feet
High RF output power (up to 50 mW) depending on country regulations
509609
Frequency range
A: 516 - 558 MHz
Dimensions
Approx. 202 x 212 x 43 mm
Compander
Sennheiser HDX
THD, total harmonic distortion
<0.9 %
Weight
Approx. 980 g
Audio input
2x XLR-3/¼" (6.3 mm) jack combo socket, electronically balanced
Audio output
¼" (6.3 mm) stereo jack socket, balanced
Signal-to-noise ratio
>90 dB
RF output power
switchable: Low: typ. 10 mW, Standard: typ. 30 mW, High: typ. 50 mW
Switching bandwidth
up to 42 MHz
Peak deviation
±48 kHz
Nominal deviation
±24 kHz
Modulation
Wideband FM stereo (MPX pilot tone)
Power supply
12 V DC
Current consumption
max. 350 mA
Max. Input voltage
+22 dBu
Transmission frequency
Max. 1680 frequencies, adjustable in 25 kHz steps, 20 frequency banks, each with up to 16 factory-preset channels, no intermodulation, 6 frequency banks with up to 16 programmable channels
AF frequency response
25 Hz to 15 kHz
Temperature Range
-10 °C to +55 °C
Frequency stability
±10 ppm
Antenna Output
BNC socket, 50 Ω
