SmallHD Ultra 5 Bolt 6 TX 750

SmallHD Ultra 5 with Teradek Bolt 6 TX 750. The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send colour accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.

More information

3 999 € with VAT 3 304.96 € without VAT
-+
Availability
new product, yet unavailable
Product description SPECIFICATIONS

Product description

SmallHD Ultra 5 with Teradek Bolt 6 TX 750. The Bolt 6 750 TX is a real-time wireless video transmitter that supports video signals up to 4Kp30 via HDMI with no image delay. This transmitter allows you to send colour accurate, True HDR images in less than 0.001 seconds. Reliably transmit your videos with advanced hardware and minimal image break-up.

Ultra 5 is designed for the user who wants it all, including optional Gold or V-Mount Micro Battery Plates for a compact power solution and an Ethernet port to enable ARRI and Sony VENICE Camera Control (Camera Control license and cable sold separately). With optinal camera control license, you can transform your touchscreen into the central command hub of your camera. SmallHD’s proprietary software enables unfettered access to ARRI, RED DSMC2, KOMODO, V-RAPTOR, and Sony VENICE camera functions and project settings such as Start/Stop Record, FPS, Shutter Speed, ISO, Color Temperature/White Balance, Clip Playback, and more.

SPECIFICATIONS

  • Daylight-viewable, 5-inch monitor with custom-function buttons designed for high-end production use
  • Display: 5-inch Touchscreen, 1920x1080, 440 PPI

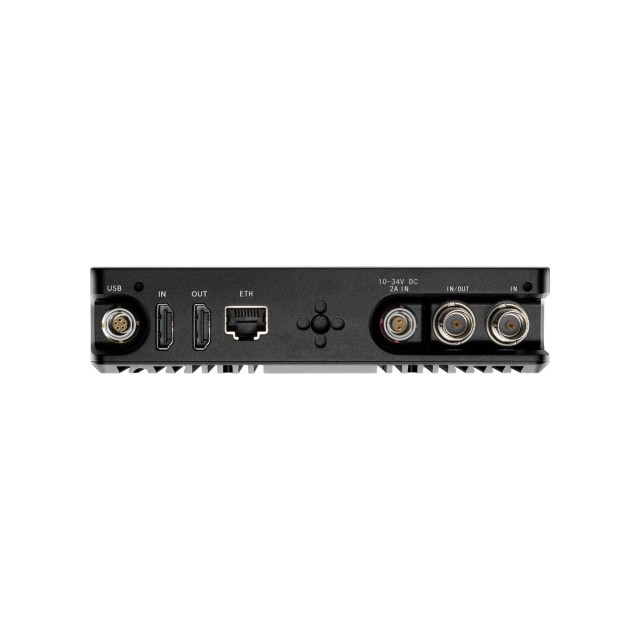

  • Input: 1x 3G-SDI [IN], 1x HDMI 2.0 (4Kp30) [IN]
  • Output: 1x 3G-SDI [IN/OUT], 1x HDMI 2.0 (4Kp30) [OUT], 1x 3.5mm Stereo Headphone Jack
  • Power Input: 2-pin Locking Power Input (10-34V DC, 2.1A)
  • Data I/O: 1x SD Card Slot, 1x RJ45 Ethernet, 1x Micro USB, 1x Locking USB
Parameters

Parameters

Manufacturer: SmallHD
Category: Camera monitors

Main parameters

Size5"
Monitor inputsHDMI
Monitor inputs3G-SDI
Luminosity3000cd/m2
Panel resolution1920x1080

Other parameters

Other featuresWireless
High Brightness (NITS)Yes
