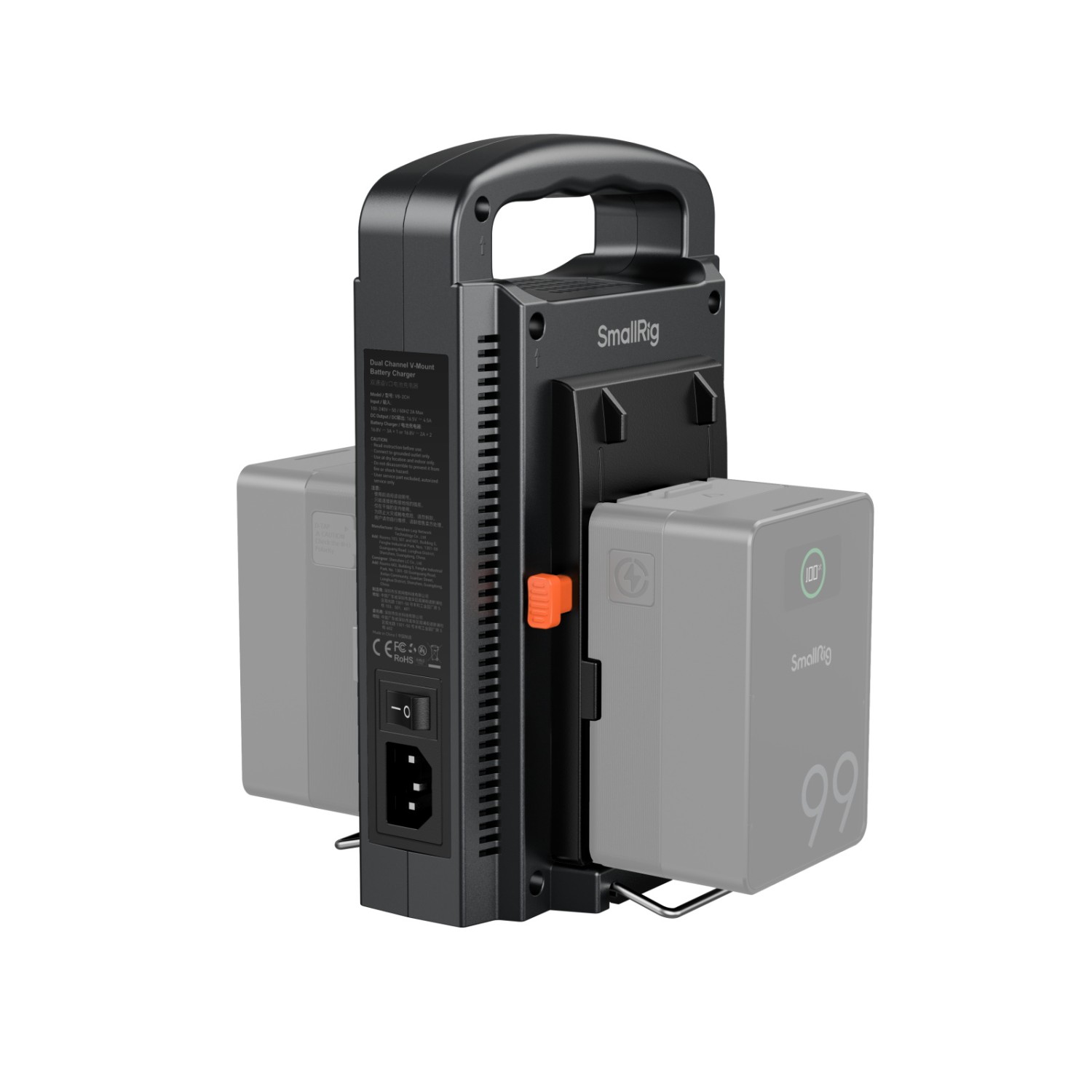

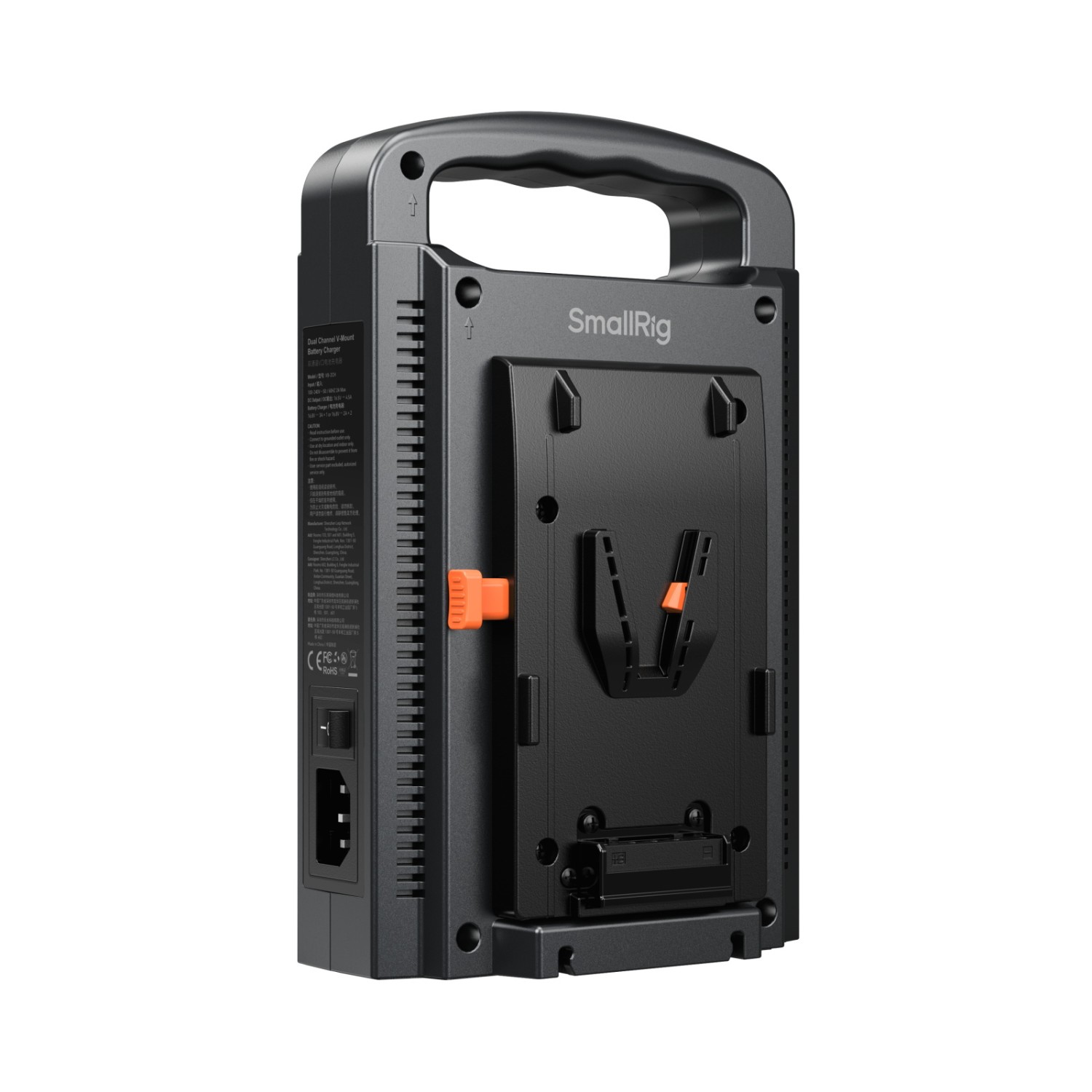

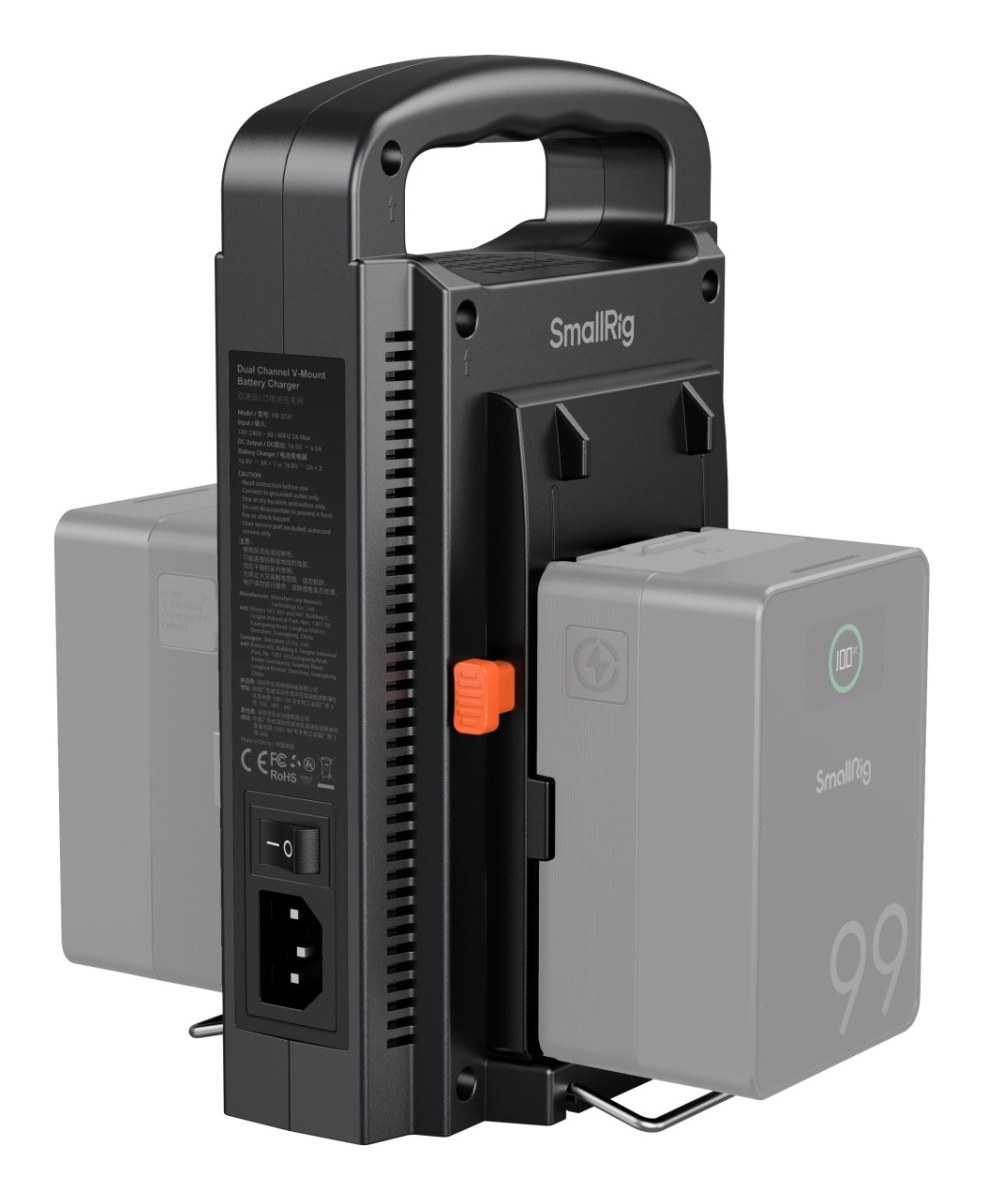

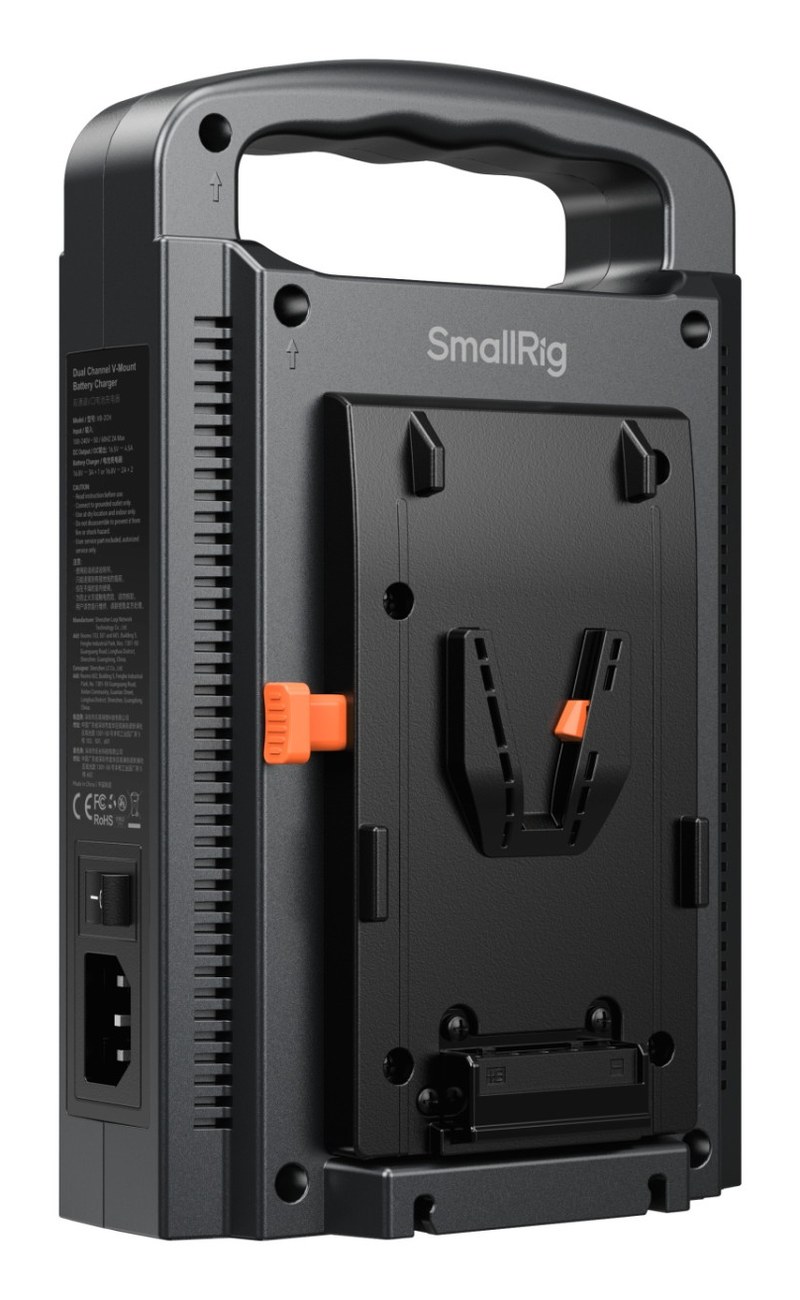

SmallRig Dual Channel V-Mount Battery Charger (European Standard) 4578 utilizes two autonomous power and control systems, enabling simultaneous charging of two V-mount batteries for enhanced efficiency. Equipped with an intelligent charging circuit, this charger maximizes battery lifespan protection. It has undergone rigorous reliability tests including circuit inspections, drop tests, and high/low-temperature environment assessments.
1. Two autonomous power supply and control systems facilitate simultaneous charging for two V-mount batteries.
2. Incorporated intelligent charging circuit maximizes battery lifespan.
3. Stringent testing standards and diverse certifications ensure the utmost safety and stability.
4. Compatible with the majority of V-mount batteries available on the market.
5. Featuring multiple operational indicator lights for convenient tracking of battery charging status.
6. The innovative, eye-catching color palette and premium-quality texture.
7. Equipped with a comfortable handle on top and a foldable bottom stand for easy portability and convenience of use.
SmallRig Dual Channel V-Mount Battery Charger (European Standard) 4578 utilizes two autonomous power and control systems, enabling simultaneous charging of two V-mount batteries for enhanced efficiency. Equipped with an intelligent charging circuit, this charger maximizes battery lifespan protection. It has undergone rigorous reliability tests including circuit inspections, drop tests, and high/low-temperature environment assessments. Additionally, it holds international certifications such as 3C, FCC, and CE, ensuring safety and reliability for your peace of mind. The charger supports SmallRig V-mount batteries as well as the majority of V-mount batteries on the market. On its side, you will find several operational indicator lights, such as power, charging status, and battery installation indicators, facilitating real-time monitoring of the battery's charging progress. This charger has innovative color matching in appearance, and the surface material has been spray-painted, which greatly increases its luster and texture. Finally, the charger features a comfortable handle on top for easy portability, while the foldable support stand at the bottom ensures stable and convenient operation, making it the ideal charging companion for V-mount batteries.
Certification: FCC, CE, RoHS
Key Features

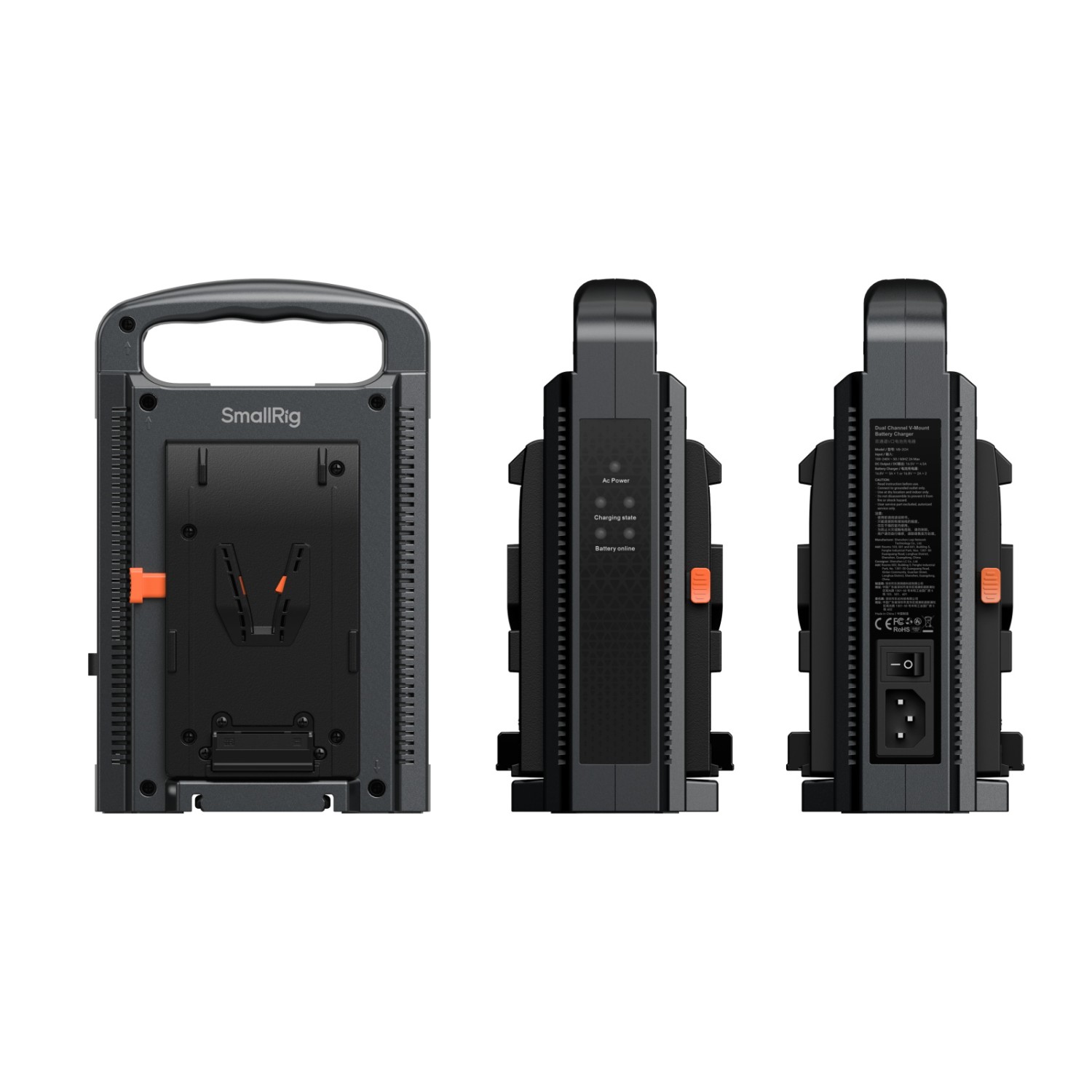

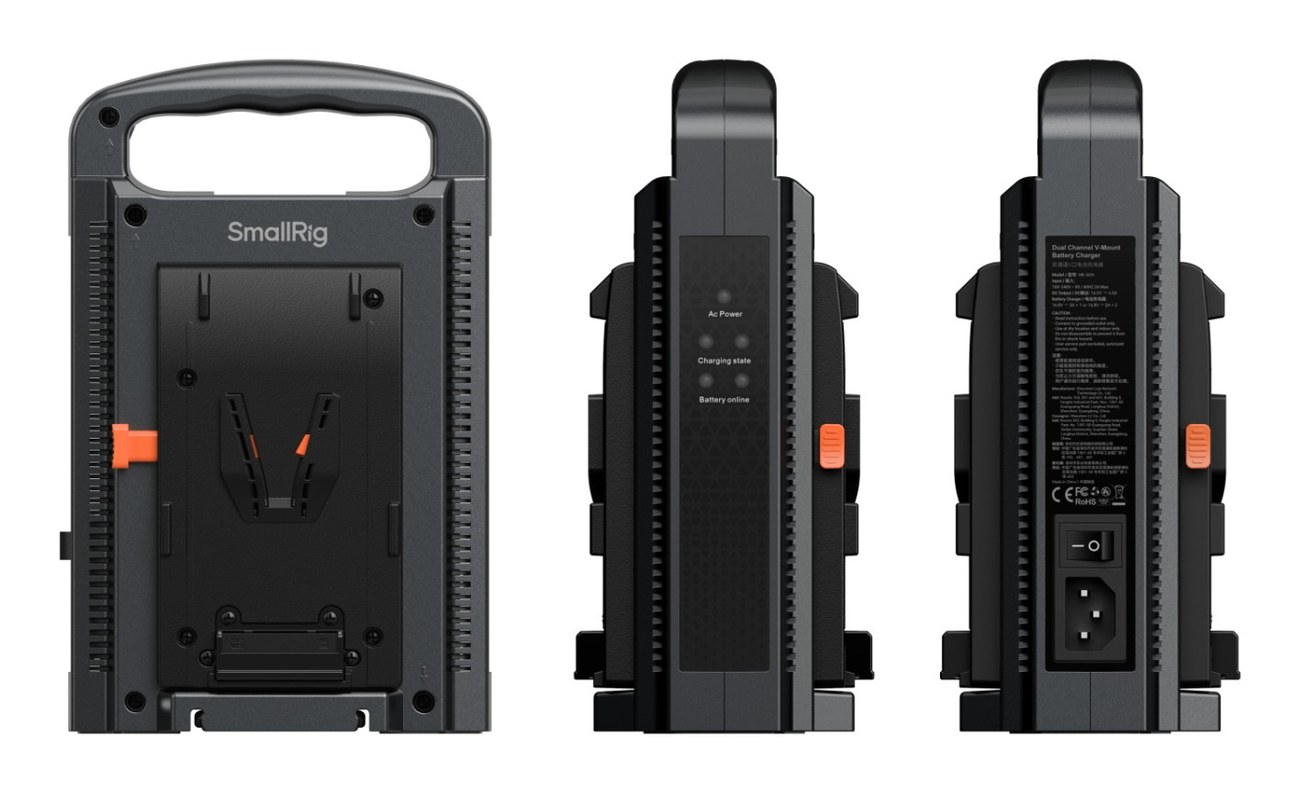

LED Indicator Lights:
AC Power:
Red light on: Charger power activated
Red light off: No AC power connected or switch not turned on

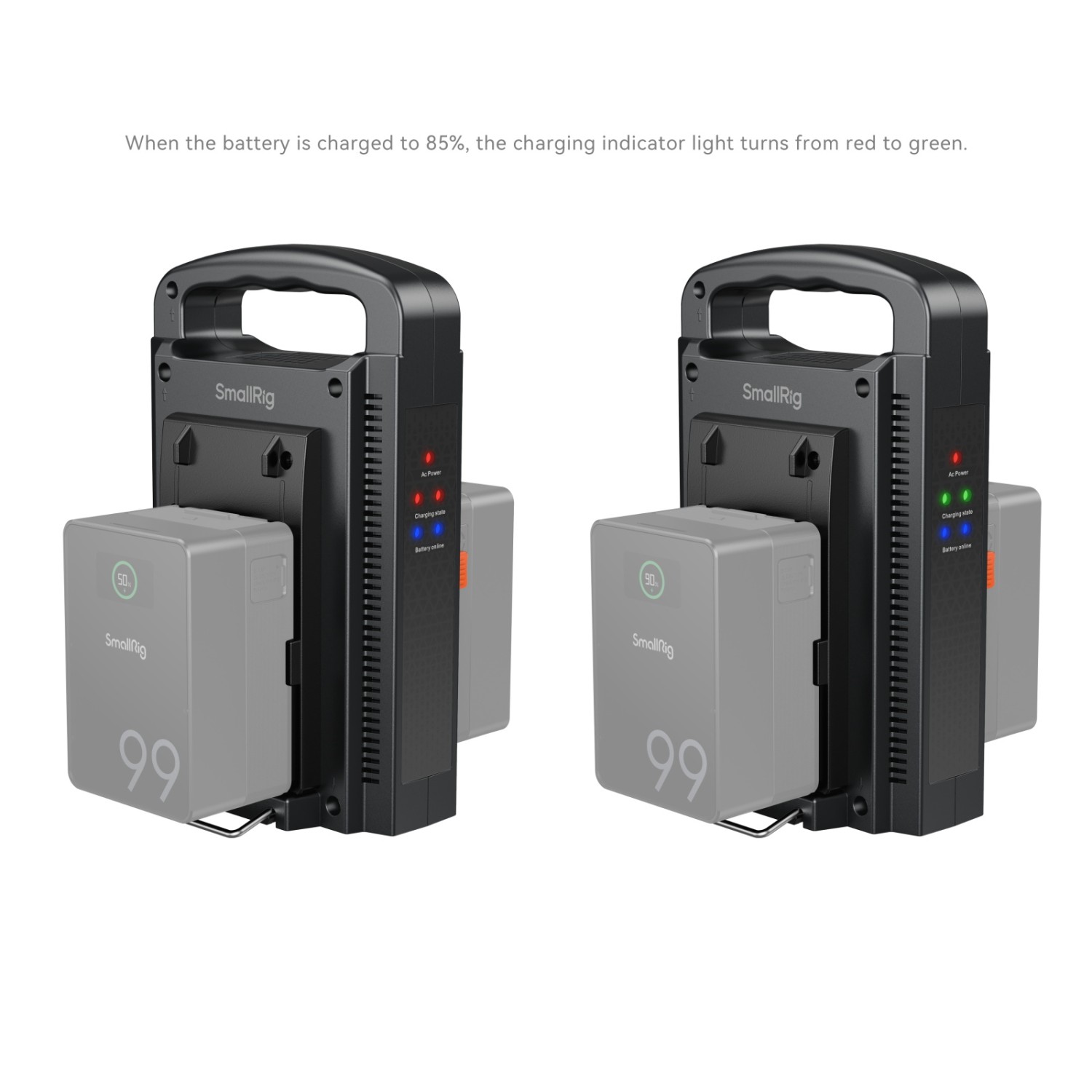

Charging state:
Red light on: Battery charging, battery level is below 85%
Green light on: Battery charged to 85%
Green light off: Battery charged to 100%
Red light flashing: Short circuit or overload
Battery online:
Blue light on: The battery has a good connection with the charger
Blue light off: Poor connection between battery and charger or low battery voltage
Compatible With
The majority of V-mount batteries available on the market (except YINCHEM Blade series)

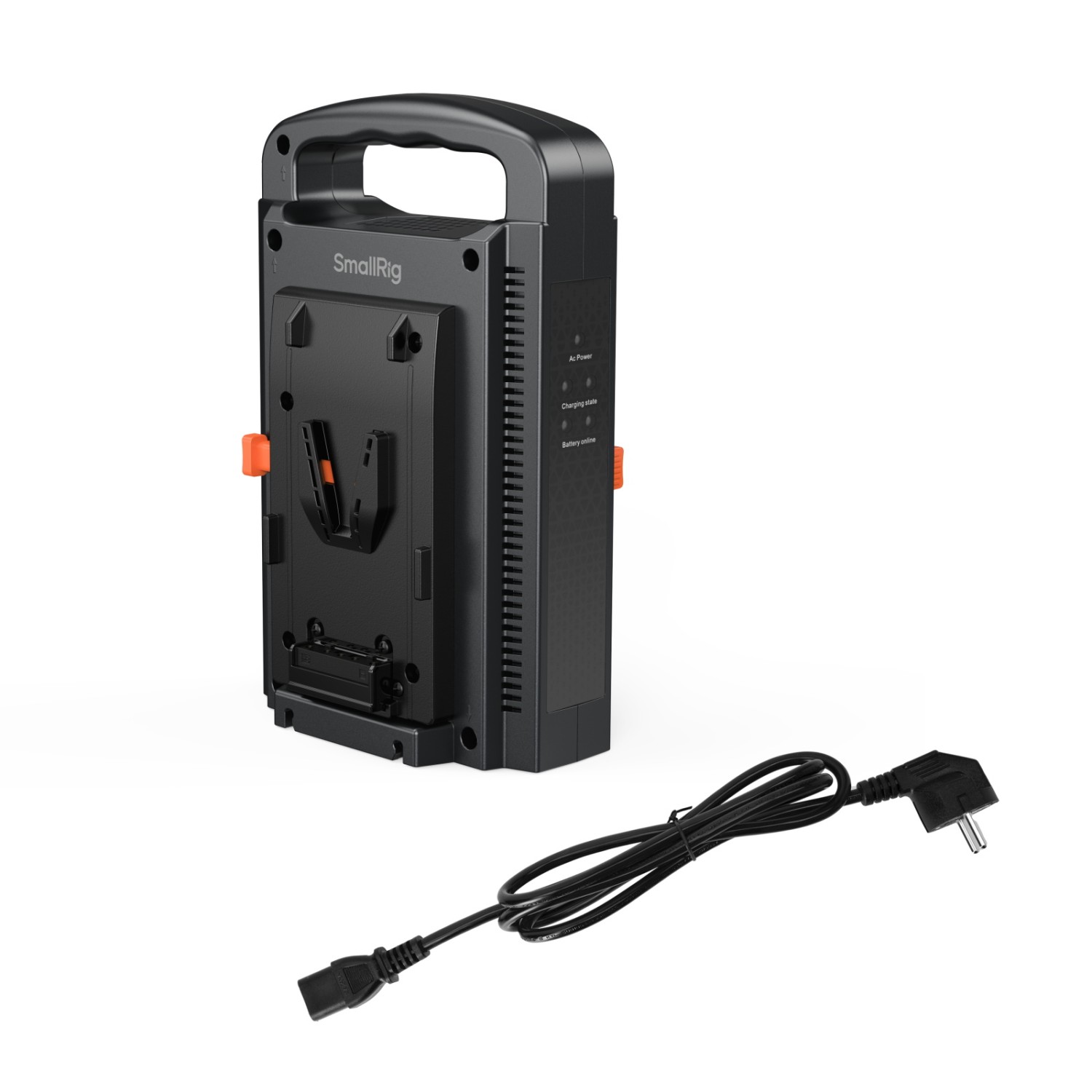

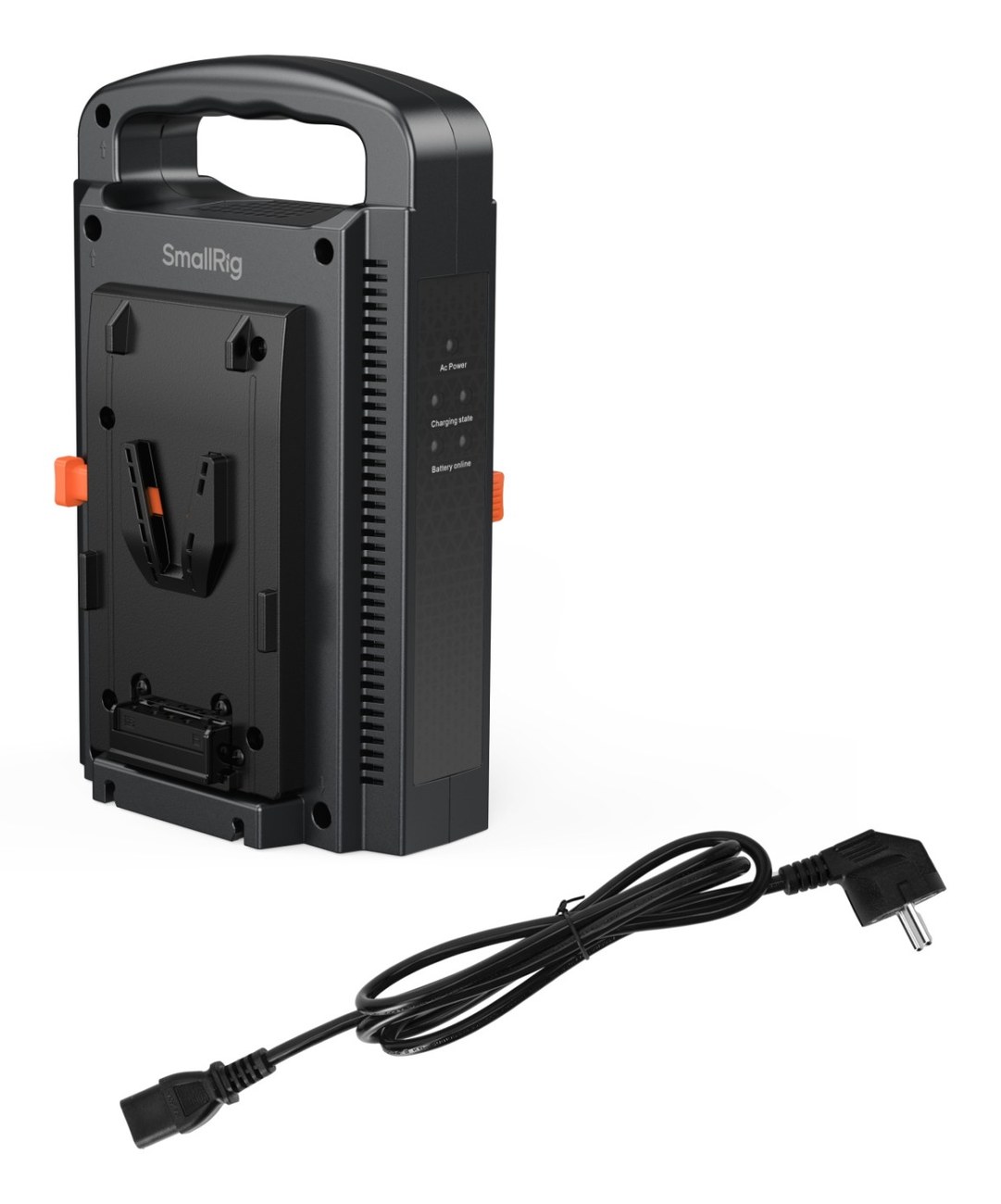

SmallRig Dual Channel V-Mount Battery Charger x 1
Charging Cable (A to C) x 1
Operating Guideline x 1
User Manual x 1
Warranty Card x 1

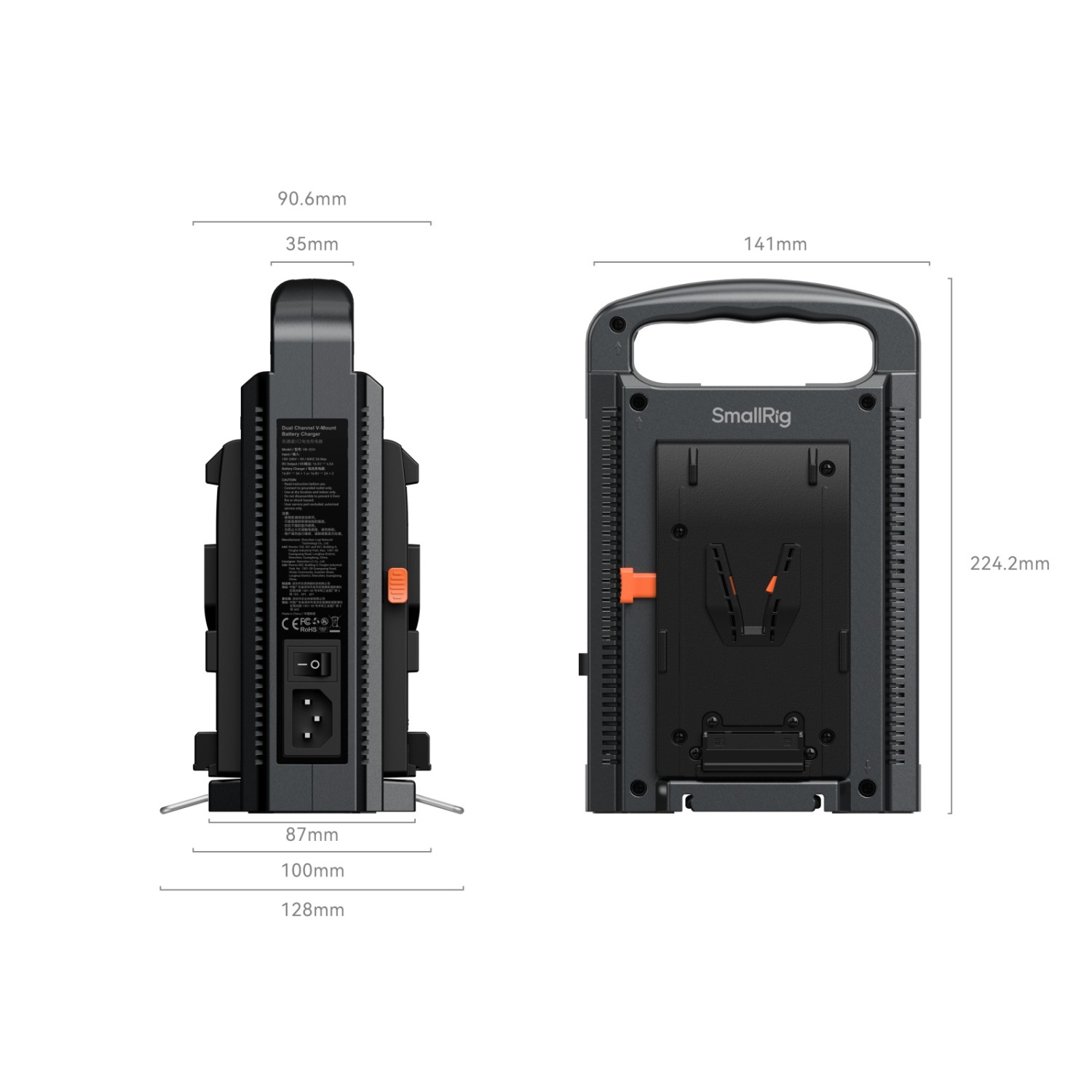

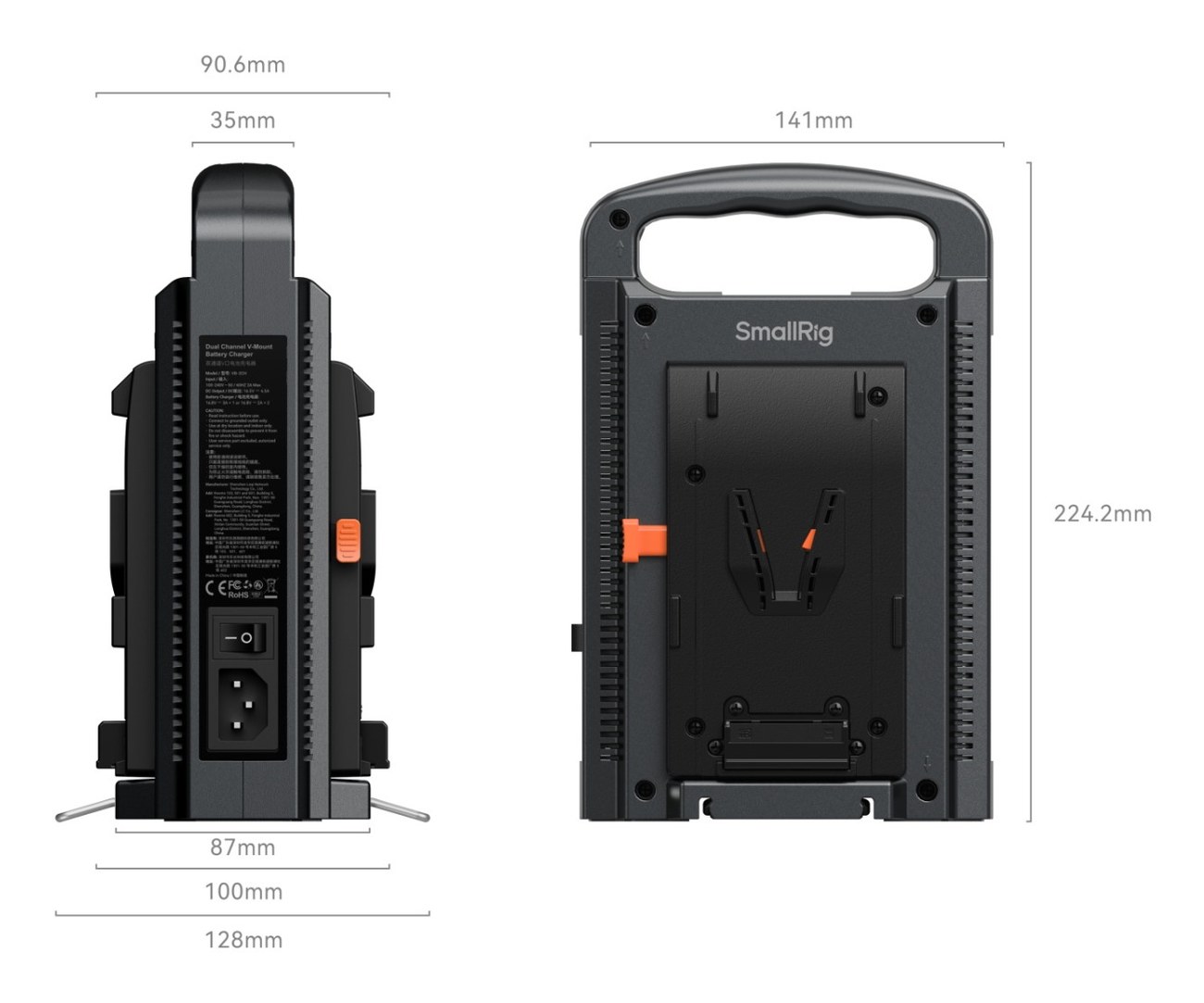

Product Dimensions: 224.28 × 140.98 × 100.07 mm / 8.83 x 5.55 x 3.93 in
Package Dimensions: 270 × 205 × 110 mm / 10.6 x 8 x 4.33 in
Product Weight: (including charging cable): 1050g ± 10g / 37 ± o.2oz
Package Weight: 1331g ± 10g / 47 ± o.2oz
Input: AC 100-240V 50 / 60Hz 2A Max
Charging Voltage: DC 16.8V
Charging Current:
One battery: 3.0A
Two batteries: 2.0A
Charging Termination Current: 80mA
Operating Temperature: 0℃ to 40℃ / 32°F to 104°F
Storage Temperature: -10℃ to 50℃ / 14°F to 122°F
Dimensions: 141.0 x 100.1 x 224.3mm / 5.5 x 3.9 x 8.8in
Weight: 1.05kg / 2.3lbs
Material: PC
*The weight/dimensions are measured manually on the actual product. We appreciate your understanding in case of any discrepancies
