SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696

SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a compact, lightweight, and fast all-in-one NP-F battery supply solution for mirrorless camera users. The Mount Plate adopts a back-mounted design, effectively balancing the center of gravity of the lens, handheld shooting more energy; foldable design, portable,…

More information

71 € with VAT 58.68 € without VAT
-+
Personal pickup: 25. 11. from 09:00
Shipment day: 25. 11.
In stock > 5 pcs
Praha > 5 pcs
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

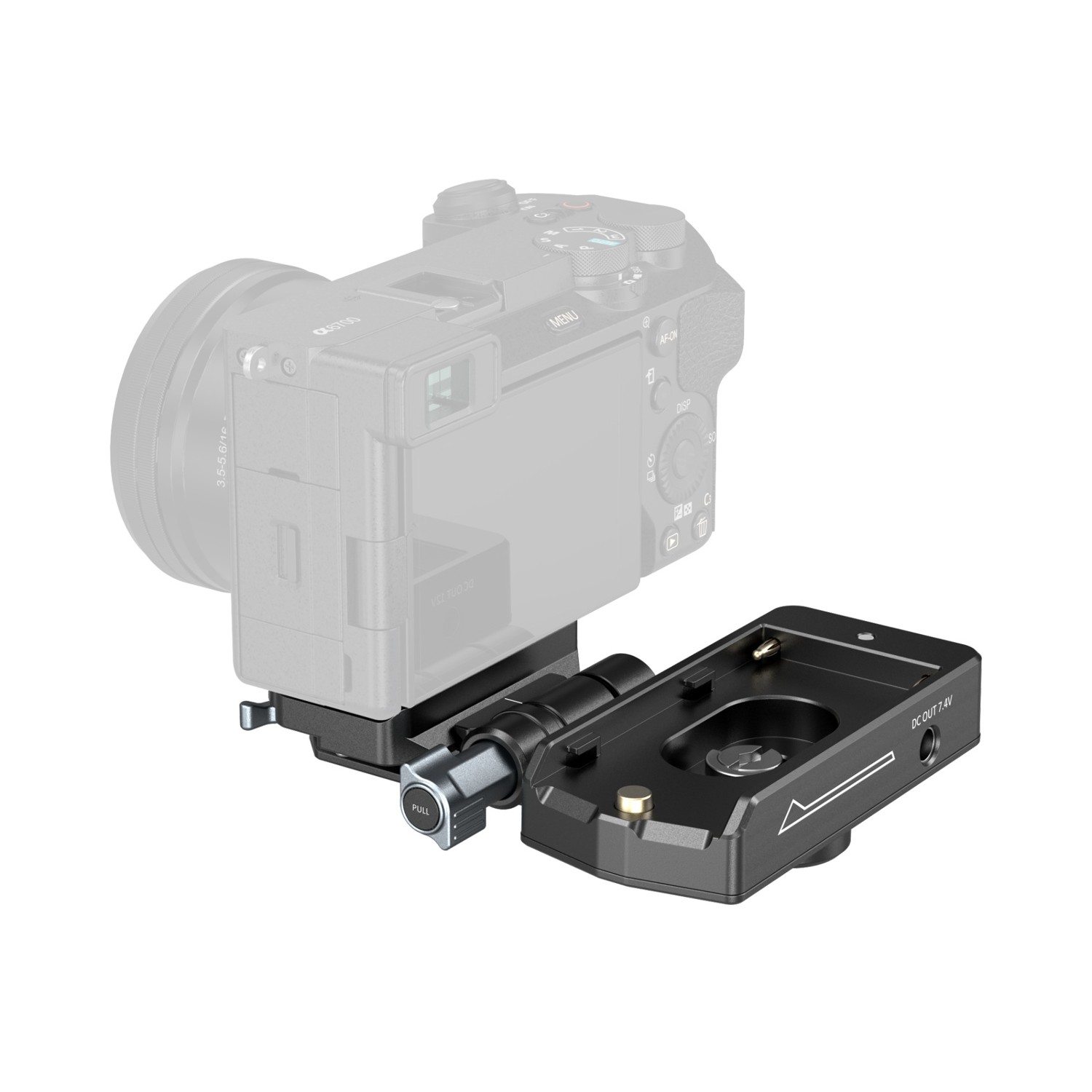

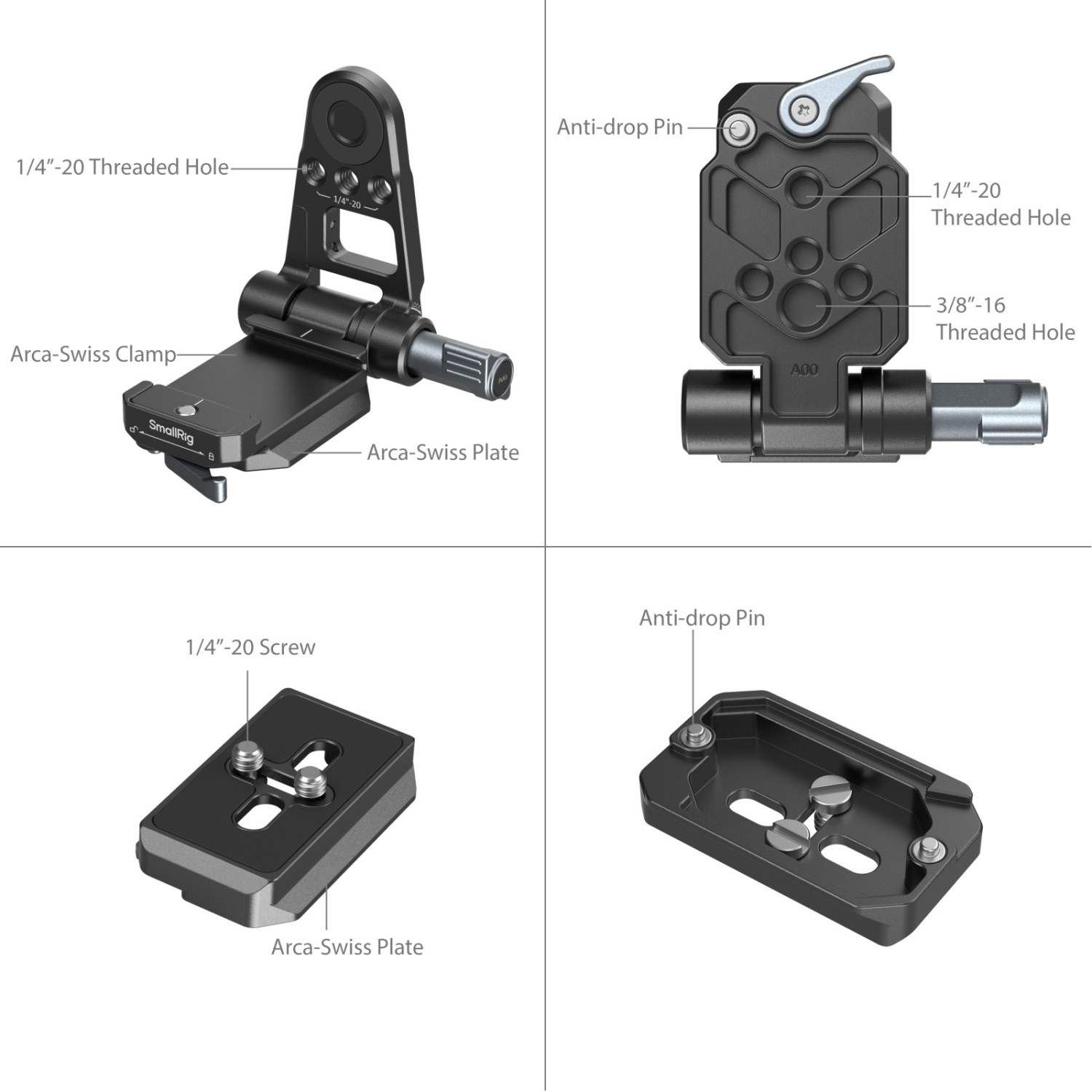

SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a compact, lightweight, and fast all-in-one NP-F battery supply solution for mirrorless camera users. The Mount Plate adopts a back-mounted design, effectively balancing the center of gravity of the lens, handheld shooting more energy; foldable design, portable, and easy to store. The Mount Plate built-in Arca-Swiss clamp, and the cages that built-in Arca-Swiss plate can be slid directly into the installation. The Mount Plate has a built-in Arca-Swiss quick-release plate at the bottom, which can be quickly mounted to an Arca-Swiss tripod for quick switching between handheld and tripod; the Arca quick-release plate has a built-in anti-drop pin, which effectively prevents the device from falling.

1. Complete power supply solution for NP-F batteries, lightweight, compact, and easy to store.
2. Back-mounted design balances the center of gravity of the lens and saves energy for handheld shooting.
3. Rotatable design for easy access to LCD screen and viewfinder.
4. Dual Arca-Swiss design, to cater to more scenarios.
5. Built-in dual DC output interface, convenient for multiple equipment power supply.

SmallRig NP-F Battery Adapter Mount Plate Kit for Mirrorless Cameras 4696 is designed to provide a compact, lightweight, and fast all-in-one NP-F battery supply solution for mirrorless camera users. The Mount Plate adopts a back-mounted design, effectively balancing the center of gravity of the lens, handheld shooting more energy; foldable design, portable, and easy to store. The Mount Plate built-in Arca-Swiss clamp, and the cages that built-in Arca-Swiss plate can be slid directly into the installation. The Mount Plate has a built-in Arca-Swiss quick-release plate at the bottom, which can be quickly mounted to an Arca-Swiss tripod for quick switching between handheld and tripod; the Arca quick-release plate has a built-in anti-drop pin, which effectively prevents the device from falling. The Mount Plate can be rotated, which is convenient for using the LCD screen and viewfinder; the pivot position adopts a damping design to prevent the equipment from falling down suddenly and protect the equipment; the rotary locking knob adopts a pull-out design, which is both compact and easy to use. All adjustment and locking parts of the Mount Plate do not require tools, fast and time-saving. The Mount Plate has built-in 1/4“-20 threaded holes and 3/8”-16 threaded holes, which can be mounted with accessories such as magic arms and quick-release plates. The Mount Plate has a built-in dual DC output interface (7.4V and 12V) to power multiple devices simultaneously. Comes with a built-in anti-drop pin Arca-Swiss quick-release plate, and can be used without a cage.

Note: When used with the Canon EOS R5C, the Mount Plate cannot be used in a vertical (90°) position.

Compatible With Compatible with most mirrorless cameras
Compatible with NP-F batteries

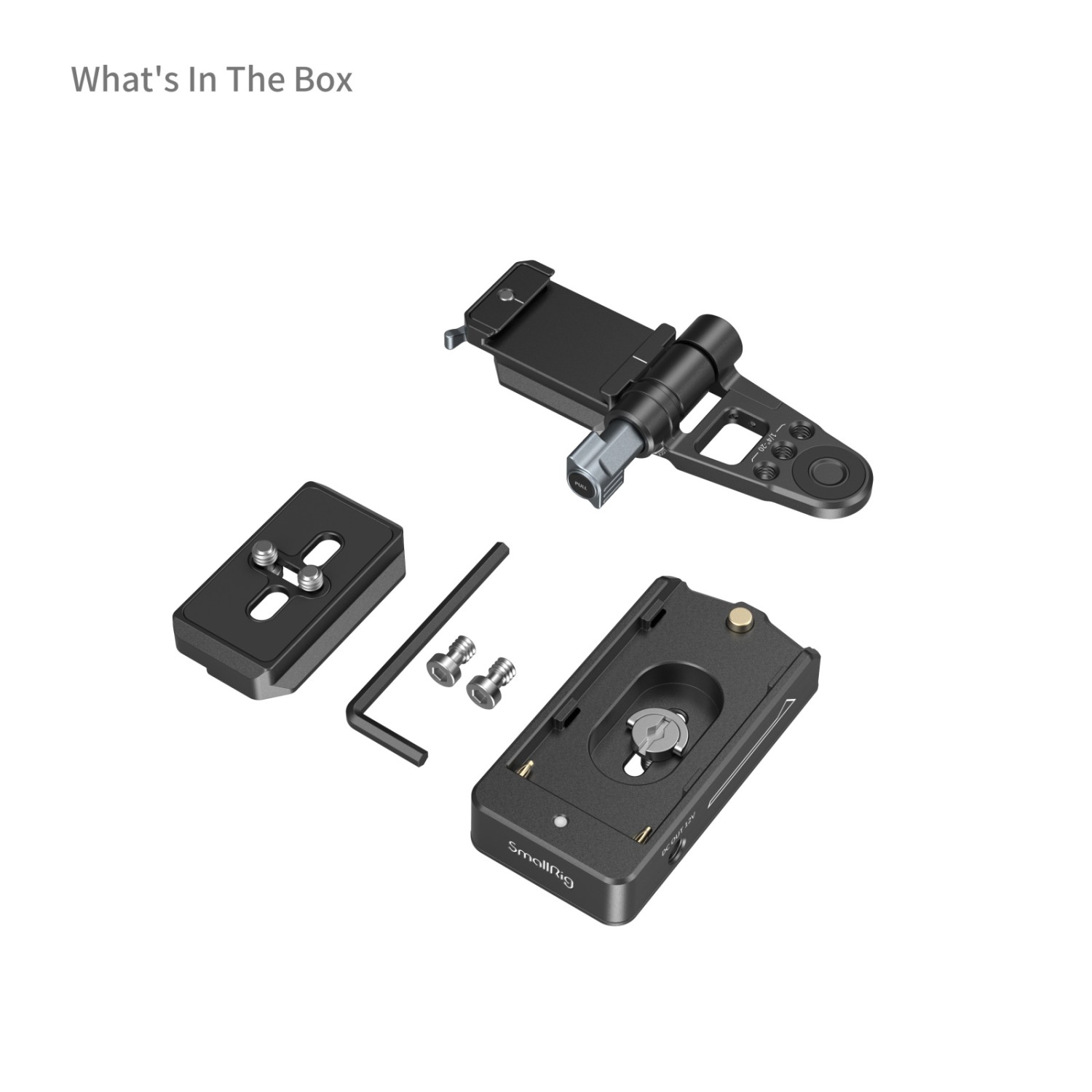

PACKAGE CONTENT

NP-F Battery Adapter Plate x 1
Folding Mount Plate x 1
Arca-Swiss Quick Release Plate x 1
1/4"-20 Screw x 2
Allen Wrench x 1

SPECIFICATIONS

Input Voltage: 7.4V
Output Voltage: DC 12V / DC 7.4V
Output Current: 1.5A
Operating Current: 50mA~100mA

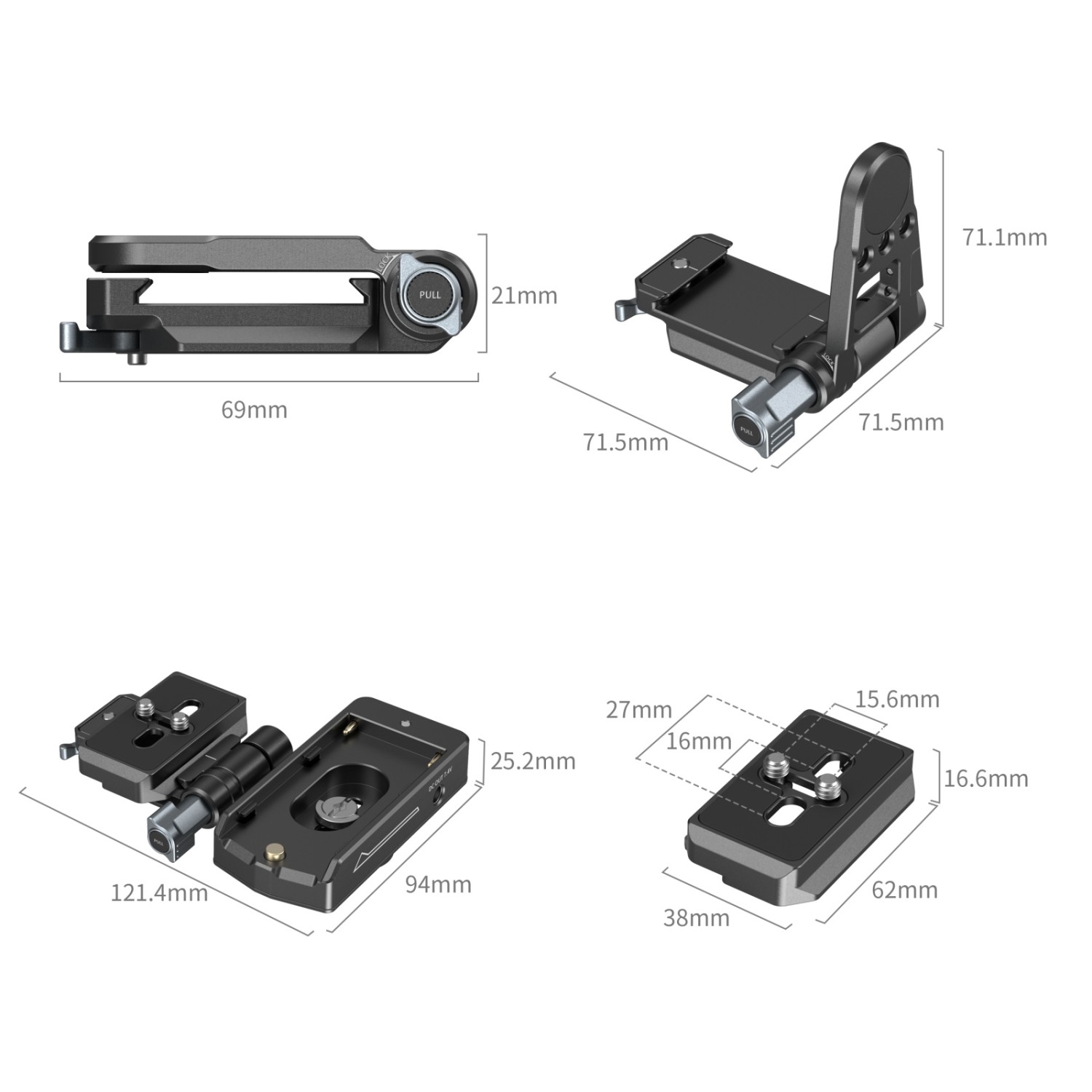

Product Dimensions: 122.0 × 94.0 × 25.2mm
Package Dimensions: 144.0 × 102.5 × 56.0mm
Product Weight: 182.0 ± 5.0g
Package Weight: 242.0 ± 5.0g
Material(s): Aluminum Alloy, Stainless Steel, Silicone, ABS+PC

Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

For the batterySony NP-F
