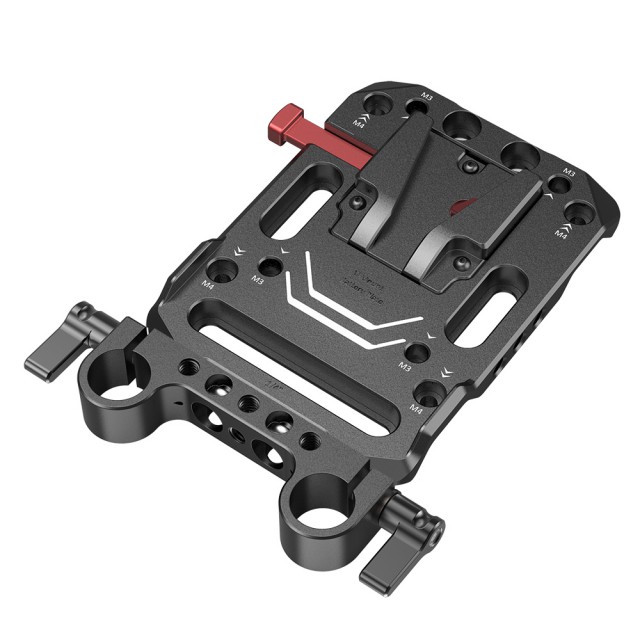

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016

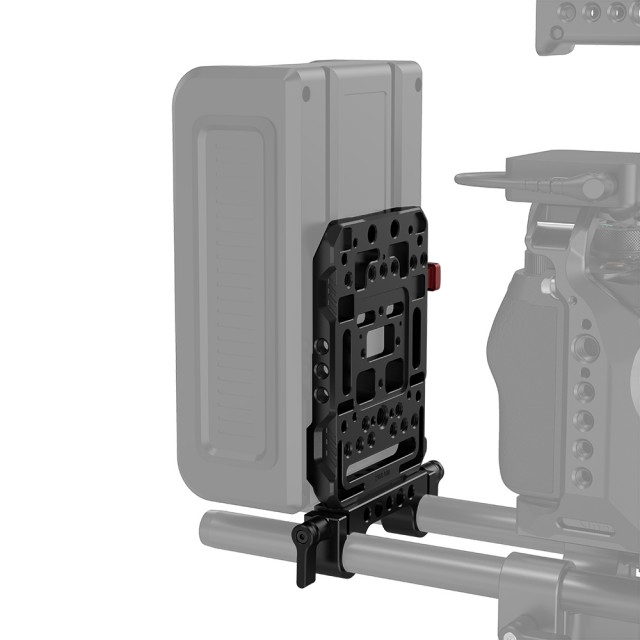

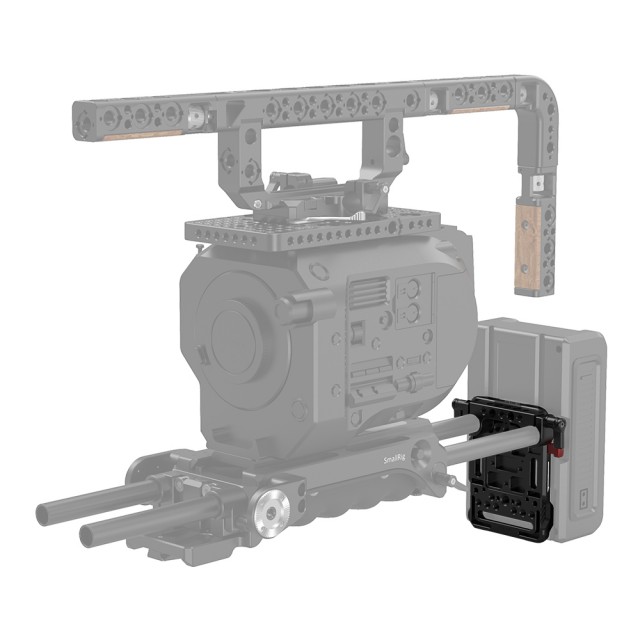

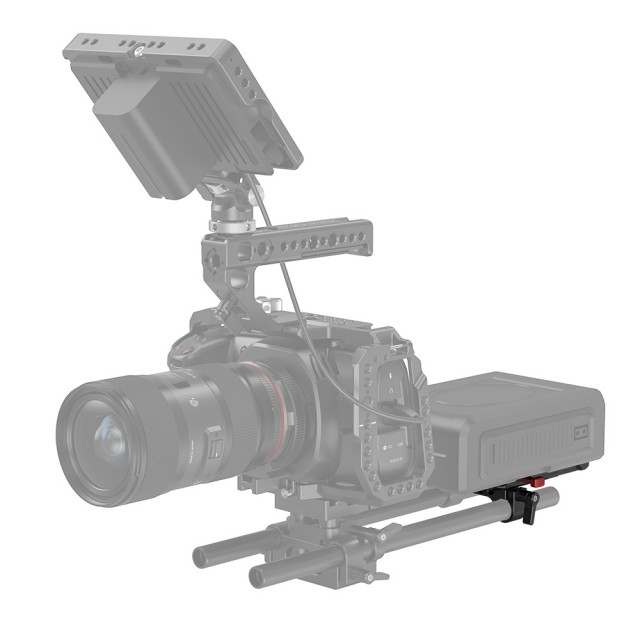

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways. The plate itself…

More information

50 € with VAT 41.32 € without VAT
-+
Availability
Shipment day: 04. 04.
To be sent 1 pcs
Budapest 1 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

SmallRig V Mount Battery Plate with Dual 15mm Rod Clamp 3016 utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s). It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways. The plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories. Two stoppers will prevent the battery from twisting when attached. The plate is also compatible with the Blackmagic URSA mini.

Key Features:
1. The plate utilizing a standard V mount fits most V mount batteries to provide greater battery life for your camera rig with your battery's power port(s).
2. Two stoppers prevent the battery from twisting when attached.
3. It comes with a dual 15mm rod clamp to help mount the plate to your 15mm LWS rod system in a variety of different installation ways.

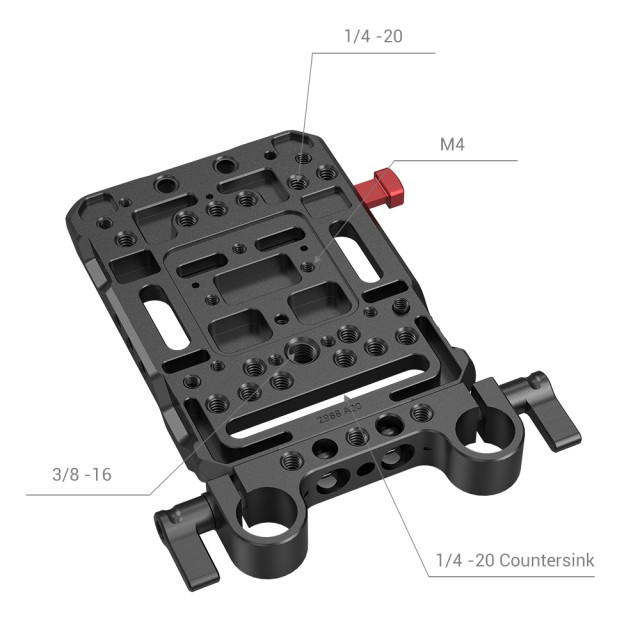

4. The Plate itself features multiple 1/4-20" countersinks, M3 countersinks, M4 countersinks, 1/4-20" thread holes, M4 thread holes, and an ARRI 3/8" -16 thread hole to attach a dual rod clamp, a magic arm, or other accessories.
5. It's compatible with the Blackmagic URSA mini.

Note:
1. No V-Lock part (male) provided with the plate.
2. This is purely a mounting solution for a V-mount battery — no power ports on the plate.

Compatibility:
The plate fits most V mount batteries but PAGlink series V mount batteries and Patona Premium Battery for BP-190WS.

PACKAGE CONTENT

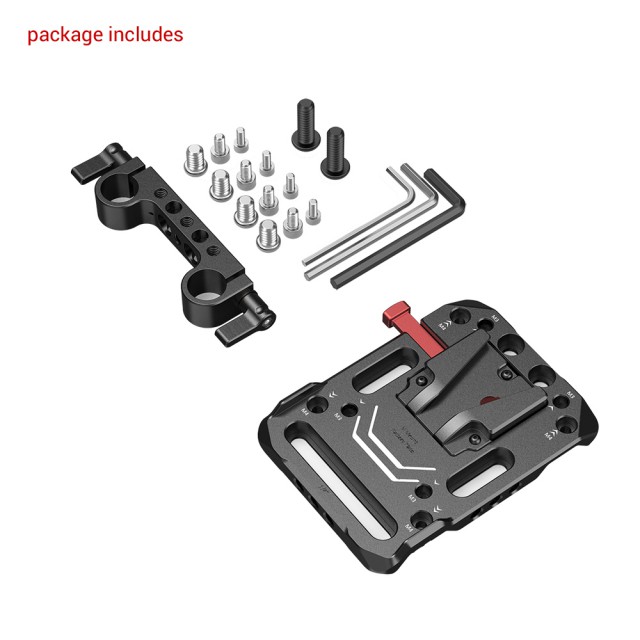

Package Includes:
1 x V Mount Battery Plate
1 x Dual 15mm Rod Clamp
3 x Allen Wrench
4 x 1/4-20" Screw (short)
2 x 1/4-20" Screw (long)
4 x M4 Screw
4 x M3 Screw

SPECIFICATIONS

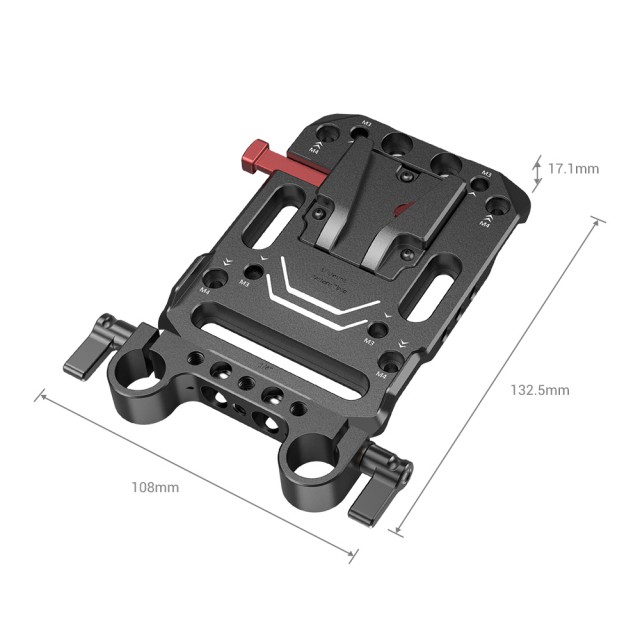

Product Dimensions: 132.5 x 108 x 17mm
Package Dimensions: 135 x 100 x 55mm
Net Weight: 190g±5g
Package Weight: 242g±5g
Material(s): Aluminum Alloy

Parameters

Parameters

Manufacturer: SmallRig
Category: Power battery plates

Main parameters

For the batteryV-Mount

GPSR

GAVIMOSA CONSULTORIA,
SOCIEDAD LIMITADA,
CASTELLANA 9144,
28046 Madrid, Jorge Wilson
