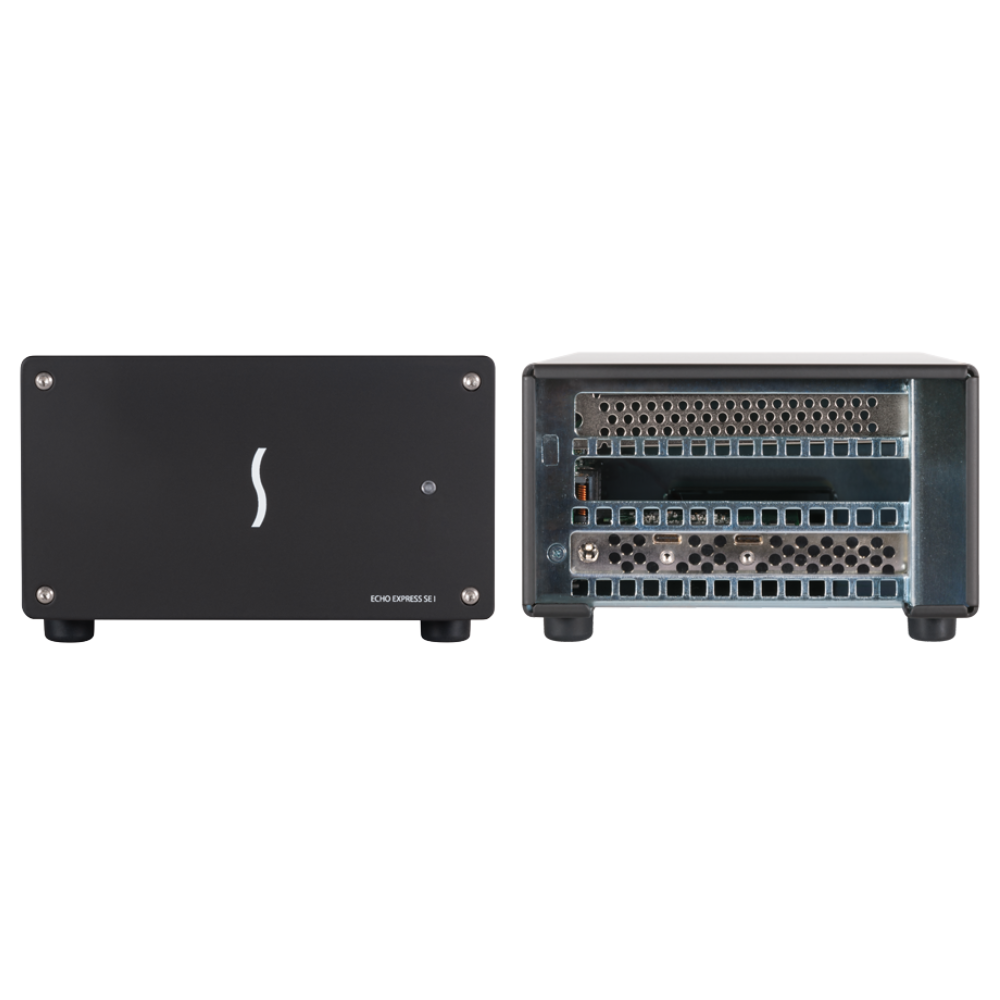

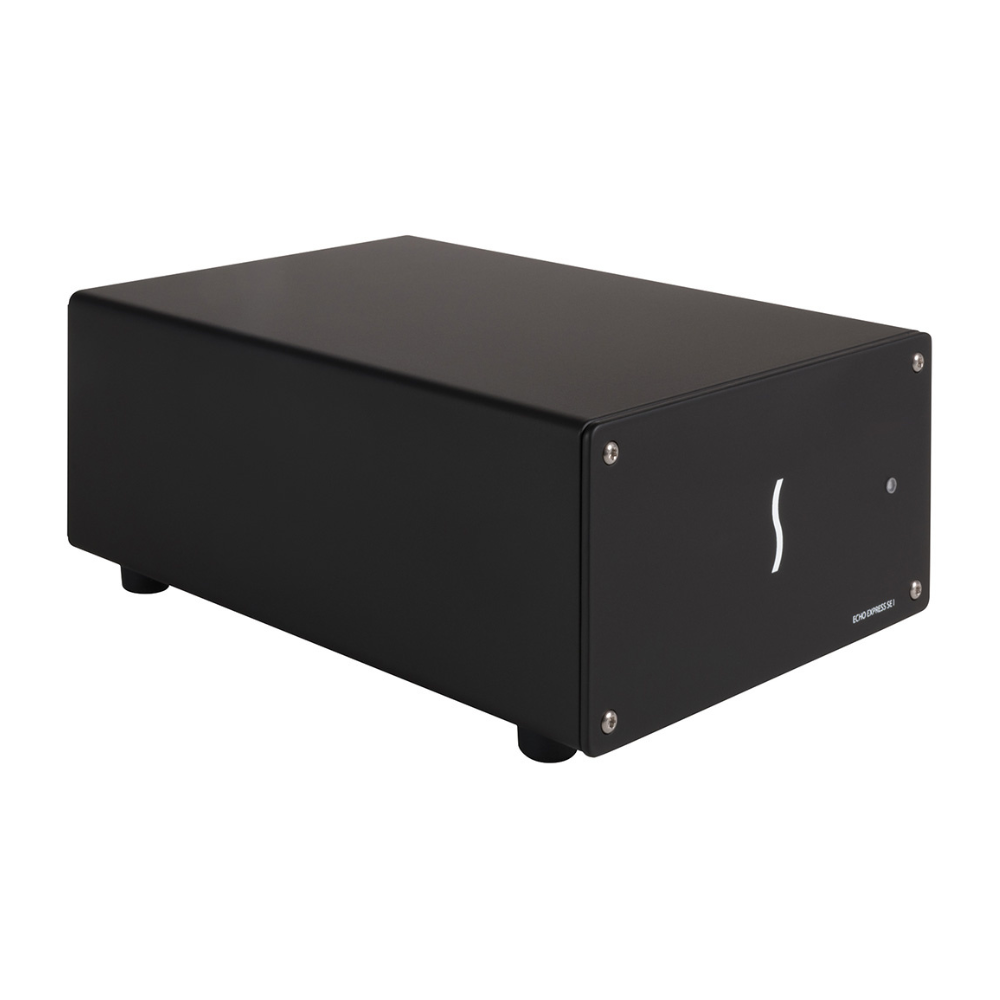

Sonnet Echo Express SE I (Thunderbolt 3)

PCIe cards for the additional connectivity and processing capabilities beyond what’s offered by a computer’s standard ports. Sonnet’s Echo™ Express SE I (Thunderbolt 3 Edition) is a compact, desktop Thunderbolt™ 3 to PCIe card expansion system that enables you to connect a single PCIe card to any computer with Thunderbolt 3 ports.

Key Features
• Connects a PCIe Expansion Card to Computers Without Slots — Use high-performance PCIe cards with any Mac or Windows PC with a Thunderbolt 3 port
• One PCIe 3.0 x8 Slot — Supports one half-length+ (up to 7.75 inches long), full-height, single-width PCIe card (plus one daughter card)
• 40Gbps Thunderbolt 3 Interface — Offers 2750 MB/s of PCIe bandwidth, doubling the performance of Thunderbolt 2
• Full Performance In a Small and Light Design — Takes up little space on the desktop, but large enough to support nearly every Thunderbolt-compatible PCIe card, at full performance
• Two Thunderbolt 3 (USB-C) Ports — One port reserved for connection to the computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices to your computer, attaching a single USB peripheral device, or connecting up to two 4K displays or one 5K display
• Remarkably Quiet — Temperature-controlled, variable-speed fan automatically and quietly cools the card
• Energy Saver Mode — Powers on/off automatically with the computer
• Rugged Aluminum Housing — Provides robust and secure protection
• Power for Peripherals — Provides up to 15W of power to connected peripheral or host
• Thunderbolt Cable & ThunderLok 3 Included — Includes 0.5-meter Thunderbolt 3 (40Gbps) cable and ThunderLok 3 Thunderbolt connector retainer clip to secure cable from accidental disconnections

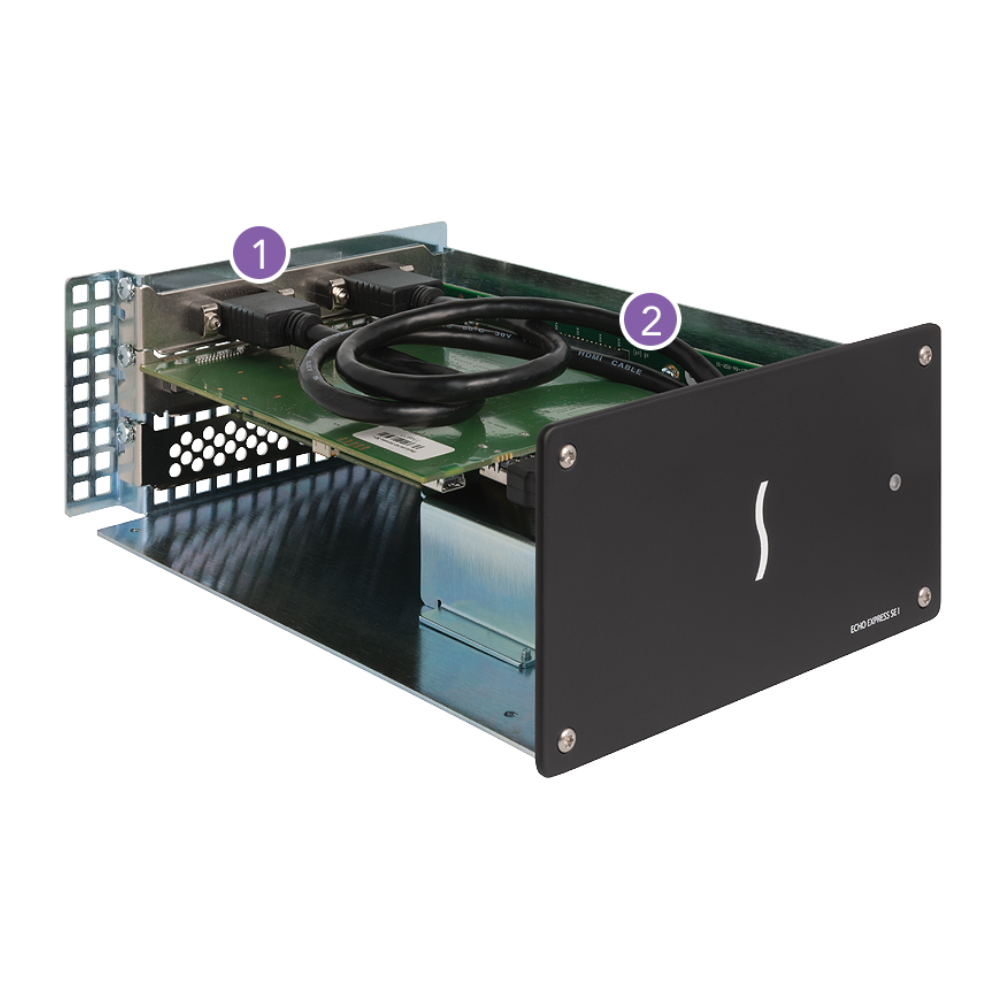

Connect a Full-Height, Half-Length+ PCIe Card to Computers Without Expansion Slots
Are you in the market for a new computer? It’s amazing how much processing power the latest ultra-light notebooks, small form factor computers, and all-in-one desktops pack in such small and thin enclosures. But, thinness comes with a cost—there’s nowhere for you to install PCIe cards for the additional connectivity and processing capabilities beyond what’s offered by a computer’s standard ports. Although thin Mac® and Windows® computers with Thunderbolt™ 3 ports offer processing power to spare, for many, such as pros in the creative fields, onboard processing power alone is not enough. Fortunately, your choices are not limited to desktop workstations—think external. With the Echo Express SE I - Thunderbolt 3 Edition, Sonnet has created a solution that enables you to connect a single PCIe card outside of your computer. This compact desktop Thunderbolt 3-to-PCIe card expansion system supports one professional video capture, audio interface, 12Gb or 6Gb SAS or SATA host bus adapter, 16Gb or 8Gb Fibre Channel, 40Gb or 10Gb Ethernet, or RAID controller PCIe card, and connects it to your computer through a thin cable.

The Echo Express SE I - Thunderbolt 3 Edition features 40Gbps Thunderbolt 3, which offers double the PCIe bandwidth and connectivity of Thunderbolt 2, and yields up to 2750 MB/s of bandwidth, enabling it to support 4K video capture and processing cards at high frame rates, and 16Gb FC cards and dual-port 10GbE cards at full performance. With the ability to handle the most demanding, highest performance PCIe cards, support for connecting two 4K displays @ 60Hz or one 5K display @ 60Hz, and support for a vast array of Thunderbolt and USB devices, Thunderbolt 3 is a leap forward in every way.

Product Compatibility
For complete product compatibility list, visit product's webpage.
