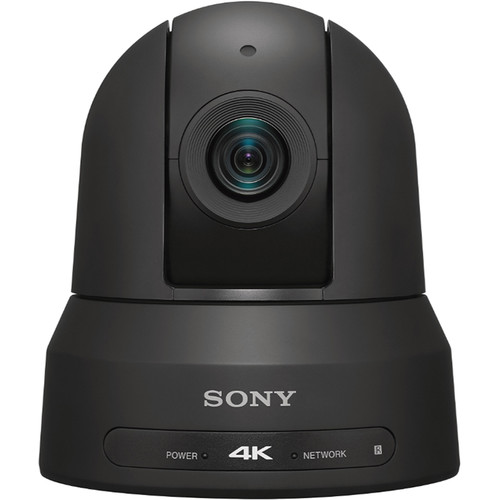

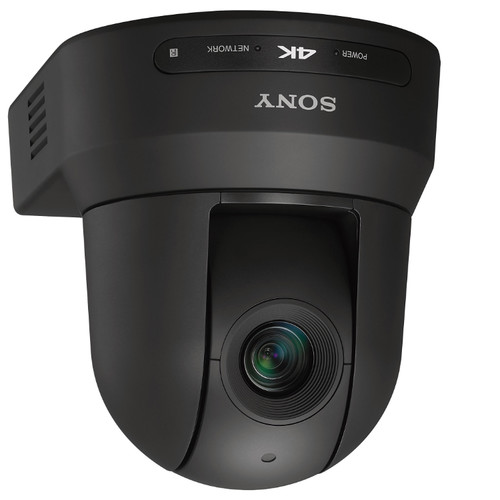

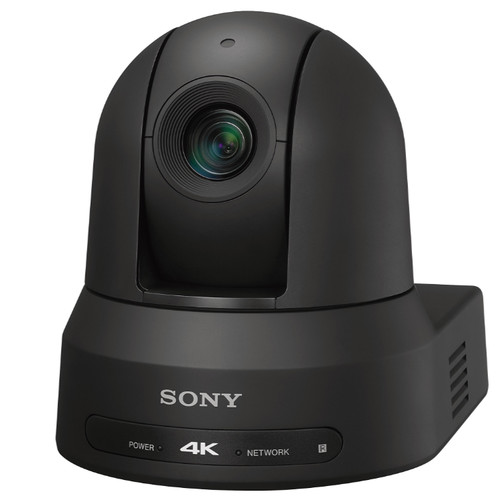

Sony BRC-X400 (Black)
SKU: BRC-X400/B
The Sony BCR-X400 is a 4K PTZ camera with 40x zoom, 1/2.5" Exmor R CMOS sensor, 3G-SDI, HDMI and NDI®|HX support. Control via VISCA protocol or Ethernet and PoE+ support. Available in black and white.
6 299 € with VAT
5 205.79 € without VAT
Availability
on request
Top accessories for Sony BRC-X400 (Black)
Sony RM-IP500 (AC)
The SONY RM-IP500 (AC) is a remote controller designed for efficient and precise
3 999 €
To be sent 1 pcs
Skaarhoj PTZ Extreme w/Blue Pill Inside
PTZ Extreme w/Blue Pill Inside is the ultimate controller for multi axis robotic
4 799 €
14-30 days
Product description
SPECIFICATIONS
PACKAGE CONTENT
Product description
The Sony BCR-X400 is a 4K PTZ camera with 40x zoom, 1/2.5" Exmor R CMOS sensor, 3G-SDI, HDMI and NDI®|HX support. Control via VISCA protocol or Ethernet and PoE+ support. Available in black and white.
Capture every point of view in 4K with excellent picture quality and efficient IP production workflow
The versatile BRC-X400 PTZ camera is ideal for use in a wide range of environments - from broadcast studios and remote on-air suites to sports stadiums, arenas, houses of worship and lecture halls
The camera's 1/2.5-type Exmor R CMOS sensor captures broadcast quality 4K images with excellent sensitivity, very low noise and rich, natural colour reproduction. It's complemented by the integrated high-resolution lens that offers a powerful zoom capability of up to 80x in Full HD*** (30x in 4K), with an expansive approx. 70 degree wide angle coverage to capture every point of view
Efficient IP-based live production is augmented with support for NDI®|HX* (via optional license), allowing flexible configuration with other networked NDI-enabled devices
Images also can be reviewing remotely via a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP** (Real Time Messaging Protocol) ensuring smooth, stable streaming of video plus audio (from an optional microphone, available separately) over an IP network
Installation and set-up is easy, with a new Scene File function allowing the same settings to be applied to multiple cameras. Convenient integration in multi-camera live events is also simplified with genlock support and an 'on-air' tally lamp
* NDI® is a registered trademark of NewTek, Inc
** Available through future upgrade planned in early 2020
*** With Clear Image Zoom and Tele Convert Mode
Note: When using RM-IP500 firmware should be updated to V2.10 and for RM-IP10, firmware should be updated to V2.17.
Excellent 4K images, even in low light
The sensitive 1/2.5-type Exmor R sensor captures high-quality 4K images with very low noise, even in dimly-lit environments
Up to 80x zoom
Powerful zoom up to 80x (in FHD) allows frame-filling close-ups with fine details seen clearly. Responsive autofocus ensures that images stay clear and sharp, even at high zoom settings
Wide viewing angle
Cover the whole scene in sports arenas and lecture theatres with a horizontal viewing angle of approx. 70 degrees
Support for NDI®*|HX
NDI®|HX compatibility (via optional license) supports efficient IP-based live production, allowing flexible configuration with other networked NDI-enabled devices
* NDI® is a registered trademark of NewTek, Inc. Network services, content, and the [operating system and] software of this Product may be subject to individual terms and conditions and changed, interrupted or discontinued at any time and may require fees, registration and credit card information
Multiple control protocols
PTZ and other camera functions can be controlled remotely via S700PTP, CGI and VISCA protocols.
Remote viewing
View pictures remotely over the Internet from a web browser, with support for RTSP (Real Time Streaming Protocol) and RTMP* (Real Time Messaging Protocol)
*Available through future upgrade planned in early 2020
Simpler installation, lower costs
A single IP cable carries camera power, video image output and control signals to simplify installation and reduce cabling costs
Ideal for live production
Genlock allows seamless multi-camera switching in live events. The camera's inbuilt tally lamp is ideal for live productions and reality shows
Fast, fuss-free set-up
The new Scene File* function can apply the same camera settings among multiple cameras for fast set-up.
*Available through future upgrade planned in early 2020
PACKAGE CONTENT
- AC power adaptor (1)
- IR Remote Commander Unit (1)
- Ceiling bracket (2)
- Wire rope (1)
- Screw M3 x 8 (9)
- Screw M2.6 x6 BLACK (1)
- HDMI cable fixing plate (1)
- Safety regulation (1)
- Download site information (1)
- Warranty (1)
SPECIFICATIONS
Image Sensor
1/2.5 Exmor R CMOS
Image Sensor (Number of Effective Pixels)
Approx. 8.5M pixels
Signal System
2160/29.97p, 25p, 23.98p (HDMI and IP only)
1080/59.94p, 50p, 29.97p, 25p, 23.98p
1080/59.94i, 50i
720/59.94p, 50p
4K capability
Yes (built-in 4K functions)
Minimum Illumination (50IRE)
1.6 lux (1/30s 50IRE F2 high-sensitivity OFF)
Horizontal Resolution
1700 TV line (Center) (4K)
1000 TV line (Center) (FHD)
Gain
Auto/Manual (0 to +48 dB)
High Sensitivity On
Shutter Speed
1/1 to 1/10000 sec (59.94 Hz system)
1/1 to 1/10000 sec (23.98 Hz system)
1/1 to 1/10000 sec (50 Hz system)
Exposure Control
Auto/Manual/Priority AE (Shutter, Iris)
White Balance
Auto1/Auto2/One Push WB/Indoor/Outdoor/Manual
Optical Zoom
20x
Clear Image Zoom
4K: 1.5x, FHD: 2x
Digital Zoom
FHD: 12x
Tele Convert Mode
2x (1920 x 1080 only)
Focusing System
Auto/Manual
Horizontal Viewing Angle
Approx. 70.0 degree (Wide)
Focal Length
f=4.4 mm (Wide) to 88.0 mm (Tele)
F2.0 to F3.8
Minimum Object Distance
80 mm (Wide)~
800 mm (Tele)
Pan/Tilt Angle
Pan: ±170°
Tilt: +90°/-20°
Pan/Tilt Speed (Max.)
Pan: 300 degrees/sec
Tilt: 126 degrees/sec
Pan/Tilt Speed
Pan: 1.1° to 101°/s
Tilt: 1.1° to 91°/s
Pan/Tilt Speed (Slow)
Pan: 0.5° to 60°/s
Tilt: 0.5° to 60°/s
Pan/Tilt Slow Mode
yes
Preset Position
256 (CGI)
100 (VISCA)
Picture Freeze Preset
Yes
Preset Mode1/Mode2
Yes
IP Video resolution
3840x2160, 1920x1080, 1280x720, 720x576, 720x480, 640x360
Compression Format
H.264 High/Main/Baseline Profile
H.265: Main Profile
Maximum Frame Rate
H.264: 60fps
H.265: 60fps
Bitrate Compression Mode
CBR/VBR (selectable)
Range of Bitrate Setting
512 Kbps ~50 Mbps
Adaptive Rate Control
No
Multi Streaming Capability
3
Maximum Number of Clients
5
Protocols
IPv4, IPv6, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, DNS, RTP/RTCP, RTSP, UPnP, VISCA over IP
NDI®|HX Capability
Yes Optional (requires a license)
Auto ICR
No
Day/Night
Yes
Wide-D
No
Visibility Enhancer
Yes
Image Stabilization
Yes
Image Flip
Yes
Auto Power Off
No
Night Power Off
No
Picture Profile Preset
Yes
ND Filter
No
Color Gain
Yes (15 step)
Color Hue
Yes (15 step)
Color Matrix
Yes (Standard, HIGH SAT, FL LIGHT, MOVIE, STILL, CINEMA, PRO, ITU709, B&W)
Gamma
Standard/Straight/512Pattern/MOVIE/STILL/CINE1/CINE2/CINE3/CINE4/ITU709
Gamma Level
Yes (15 step)
Black-> Black level
Yes (97 step)
Black Gamma
Yes (15 step)
Knee Point
Yes (15 step)
Knee Slope
Yes (15 step)
Flicker Cancel
On/Off
B&W
Yes
Color Bar
On/Off
Ver Up
Yes
Channel
2ch
Audio Codec
AAC LC 128kbps/ST (IP)
AAC LC 256kbps/ST (IP)
Setting Option
Auto Gain Control (AGC): On/Off
Equalizer: Off/Low Cut/Voice enhancement
Input selection: Microphone/Line
Mic volume: -10~+10 (21 steps)
Audio codec
Embedded Audio in Baseband Video
Yes (3G-SDI, HDMI)
Embedded Audio in IP Streaming
Yes
4K Video Output
HDMI x1 and IP (streaming) x1
HD Video Output
3G-SDI x1, HDMI x1, IP (streaming) x1
SD Video Output
No
HDMI Color Space
YCbCr, 4:2:2 8 bit
RGB, 4:4:4 8 bit

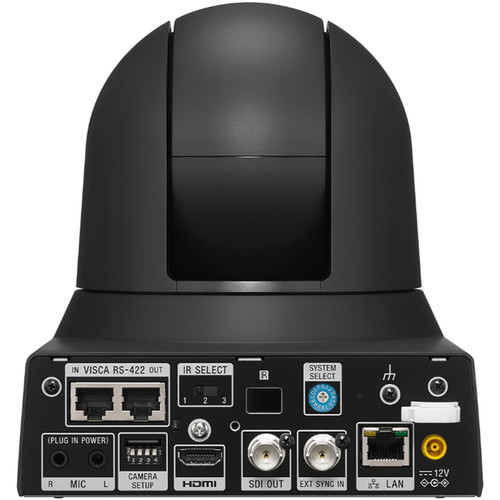

Camera Control Interface
VISCA RS-422 RJ45 (In/Out)
VISCA over IP RJ-45
S700PTP RJ-45
IR Remote Control
Yes
Microphone Input
Mini-phone (?3.5mm) x2 (Mic/Line Selectabe)
Sync. System
EXT/INT
External Sync. Input
BNC, 75?, HD 3-level sync, SD Black Burst
Tally
Front x 1
Power Connector Type
IEC60130-10 (JEITA standard RC-5320A) TYPE4
Power Requirements
DC 12V (DC 10.8 to 13.2V), PoE+ (IEEE802.3at compliant)
Power Consumption
25.5 W (Max)
Operating Temperature
0 °C to 40 °C
32 °F to 104 °F
Storage Temperature
-20 °C to +60 °C
-4 °F to +140 °F
Dimensions (W x H x D)*1
158.4 x 177.5 x 200.2 mm
6 1/4 x 7 x 8 inch
Mass
Approx. 1.8 kg
3 lb 15.5 oz
Optional Card Slots
No
Body Color
White/Black
Wide Conversion Lens Attachable
No
Size of Screw Hole for Tripod
1/4-20UNC x1
Mountable Angle
< ±15°
Ceiling Mount
Yes
Supplied Accessories
AC power adaptor (1)
IR Remote Commander Unit (1)
Ceiling bracket (2)
Wire rope (1)
Screw M3 x 8 (9)
Screw M2.6 x6 BLACK (1)
HDMI cable fixing plate (1)
Safety regulation (1)
Download site information (1)
Warranty (1)
Parameters
Parameters
| Manufacturer: | SONY |
| Category: | PTZ |
Main parameters
| Camera Sensor size | 1/2.5" |
| Resolution | UHD |
| Resolution | Full HD |
| Zoom | 30x |
| Type of bayonet | integrated lens |
| Output | HDMI |
| Output | 3G SDI |
Other parameters
| Version | PTZ |
| FPS | UHD 30fps |
| FPS | HD 60fps |
| FPS | HD 50fps |
| Lens lens aperture | 2f |
| Min. focal length | 4.4mm |
| Max. focal length | 88mm |
| Colour depth | 8 bit |
| Colour depth | 10 bit |
| Other features | PTZ |
| Other features | Streaming |
| Other features | PoE |
| Control protocol | RS-422 |
| Control protocol | VISCA |
