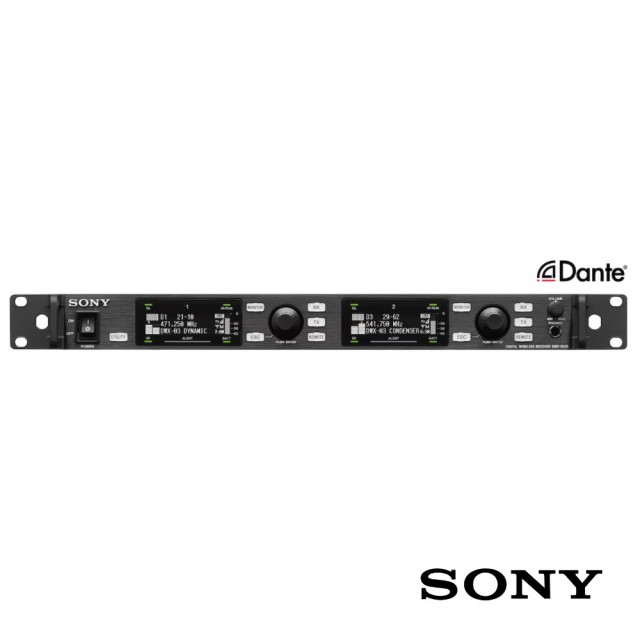

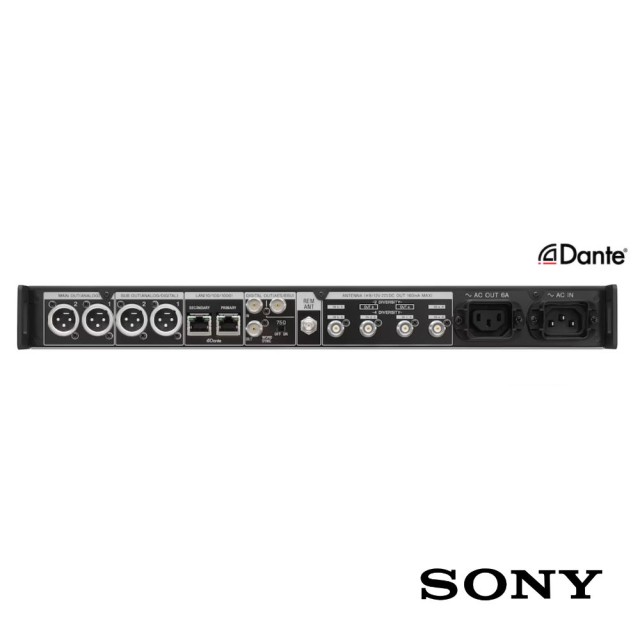

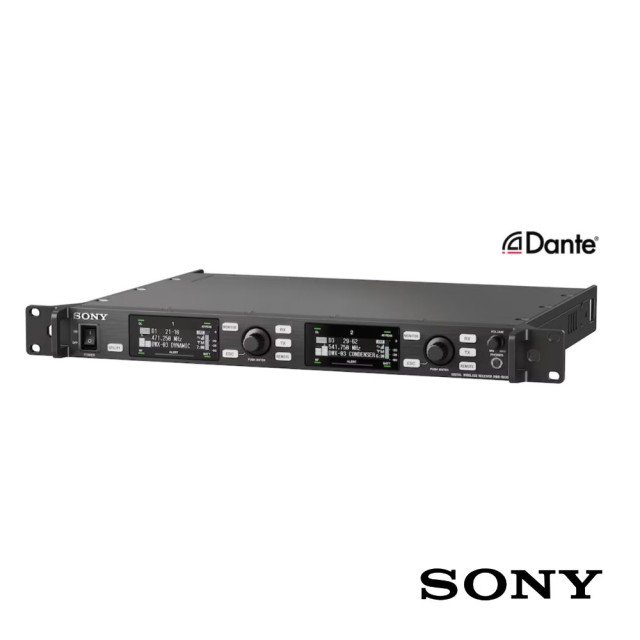

Sony DWR-R03D - 2 channel rack-mountable (1U-size) receiver

Superb audio quality and stable operation in a wide range of environments
The third generation of Sony's acclaimed DWX series, this high performance digital wireless receiver is an ideal choice for live sound applications including theatre and concerts, as well as studio based TV production and EFP.

The two-channel 1U rack-mountable wireless receiver features Sony's advanced digital audio processing, encryption and RF transmission technologies to assure secure, stable transmission and reception of very high quality audio with low latency.

The DWR-R03D is ideal for use in large-scale multi-channel productions, supporting up to 21 simultaneous channels per 8MHz TV band or up to 16 simultaneous channels per 6MHz TV band.

Support for the Dante® audio-over-IP standard enables networked multi-channel operation.

The DWR-R03D is compatible with Sony Wireless Studio control software for PC (Ver 5.0 or later), allowing flexible remote operation. Remote control of up to 82 transmitters is possible using the Cross Remote™ function combined with the RMU-01 remote control unit (available separately).

Features

Very high quality wireless audio
Advanced Sony codec design assures superb audio quality, with a high dynamic range of more than 106 dB, plus a wide frequency response of 20 Hz - 22 kHz and excellent transient response.

Low-latency audio
Advanced Sony codec design reduces audio latency to as little as 1.2msec* , * DWT-B03R and DWR-R03D total delay with codec mode2 and analog output

Dante® interface for audio-over-IP networking
The DWR-R03D is compatible with the Dante digital audio-over-IP networking standard for professional AV and sound reinforcement environments. Allows headphone monitoring with other receivers in Dante network. Two Dante ports support redundant network operation.

Reliable transmission
X-Dimension Diversity™ technology, high dynamic range RF circuits and 4 antenna diversity reception system enhance RF transmission stability.

Easy, versatile remote control
The DWR-R03D is compatible with Sony's Wireless Studio control software for PC (Version 5.0 or later) and up to 82 transmitters can be controlled using the Cross Remote™ function and RMU-01 remote control unit (available separately).

AUTO FREQUENCY CHANGE function*
This function minimizes audio dropouts by automatically changing to a better frequency when the existing frequency is congested or reception is poor. It scans for a frequency on channel 1 of the host receiver and maintains a list of safe frequencies. If the quality of the received data on another channel drops, it changes the frequency used by the corresponding receiver and paired transmitter to a better frequency.
* Available via firmware update (Ver. 1.20～)

High density multi-channel operation
Ideal for large-scale productions, the DWR-R03D supports high-density simultaneous multi-channel operation: 375kHz spacing accommodates up to 21 channels per 8MHz TV band or up to 16 simultaneous channels per 6MHz TV band.

AUTO CHANNEL COORDINATE function*
This function coordinates channel selection by communicating with the receiver to build a channel plan in response to the RF environment without using a computer. The channel setting is also applied to the transmitter paired with the receiver.
* Available via firmware update (Ver. 1.20～)

Four audio codec modes*
Switch between audio codec modes based on your operational needs.
* Available via firmware update (Ver. 1.20～)

244MHz* wideband
Contributes to the reduction of equipment and burden of maintenance.
*Depending on version

AES 256bit encryption
For secure encrypted transmission.

Spectrum analyzer function*
This functions scans frequencies and displays the congestion/interference as a graph, allowing the user to visualize the RF conditions. You can also select and set a safe frequency from the scan results.
* Available via firmware update (Ver. 1.20～)

OUTPUT SWAP function*
This function swaps the audio outputs of two tuners when a button on the unit is operated. This provides redundancy, enabling a user who is using two transmitters to quickly swap the outputs when trouble arises on one of those transmitters, without having to reconnect audio cables.
* Available via firmware update (Ver. 1.20～)

AC power cascade
AC power output simplifies implementation of multiple receivers in large multi-channel applications.

Dual OLED displays
Easy-to-read dual OLED displays give visual confirmation of operating information and status for each channel.

User setting memory
Settings can be easily stored to the memory of DWR-R03D.

Setting lock
Receiver settings can be locked to prevent accidental operation during performance.

Transmitter/receiver identify function
Paired transmitters/receivers are identified by blinking display.

Switchable analogue (balanced) and AES/EBU digital audio sub output

Adjustable audio output level (1dB step)
