Sony ECM-77BPT

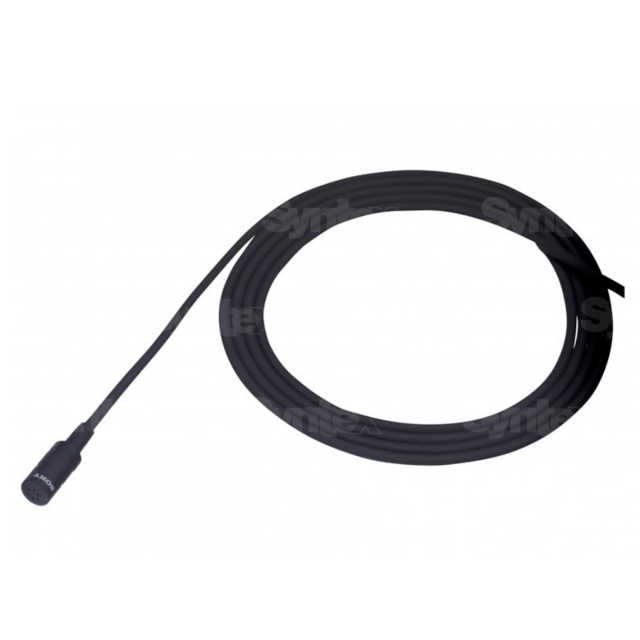

The Sony ECM-77 is a very small lapel microphone. It has an electret condenser capsule with omnidirectional characteristics. Ideal for the studio. It is very sensitive, has a flat and wide frequency response and low noise. Without connector.

More information

419 € with VAT 346.28 € without VAT
-+
Availability
on request
Product description SPECIFICATIONS PACKAGE CONTENT

Product description

The Sony ECM-77 is a very small lapel microphone. It has an electret condenser capsule with omnidirectional characteristics. Ideal for the studio. It is very sensitive, has a flat and wide frequency response and low noise. Without connector.

TheSony ECM-77 is a very small lapel microphone. It has an electret condenser capsule with omnidirectional characteristics. Ideal for the studio. It is very sensitive, has a flat and wide frequency response and low noise. Four connection types are available.

Main features:

  • Capsule type
  • Frequency response: 40Hz-20kHz
  • Characteristic: Omnidirectional
  • Max SPL: 120dB

PACKAGE CONTENT

  • Sony ECM-77 Miniature Omnidirectional Lavalier Microphone with Unterminated (Pigtail) Leads (Black)
  • Tie Clip
  • Windscreen

SPECIFICATIONS

  • Capsule Type: Electret Condenser
  • Frequency Response: 40 Hz to 20 kHz
  • Directivity: Omni-directional
  • Sensitivity: -39.0 dB (11.2 mV)
  • Output Impedance: 2.5kΩ±30%, Unbalanced
  • Dynamic Range: 90 dB or more
  • Signal-to-Noise Ratio: 64 dB or more
  • Inherent Noise: 30 dB SPL or less
  • Induction Noise From External Magnetic Field: 5 dB SPL or less
  • Wind Noise: 40 dB SPL or less (with windscreen)
  • Maximum Input Sound Pressure Level: 120 dB SPL
Parameters

Parameters

Manufacturer: SONY
Category: Lapel microphones

Main parameters

CharacteristicsOmnidirectional
