Sony UTX-P40 K33

Universal XLR transmitter for UWP-D system

• High quality sound with Sony digital audio processing
• NFC SYNC function for quick and easy secure channel setting (IR sync capability with URX-P03, URX-P03D, and URX-S03D
receivers)
• Auto gain mode volume control
• +15 dB gain volume boost mode for off-mic audio
• Line input
• +48V power supply
• Transmitter frequency sent to receiver for matching multiple receivers to one transmitter
• Variable muting function
• Compatibility with Sony WL-800/UWP/UWP-D series
• High visibility OLED display, ideal for indoor/outdoor use
• USB connector for power supply

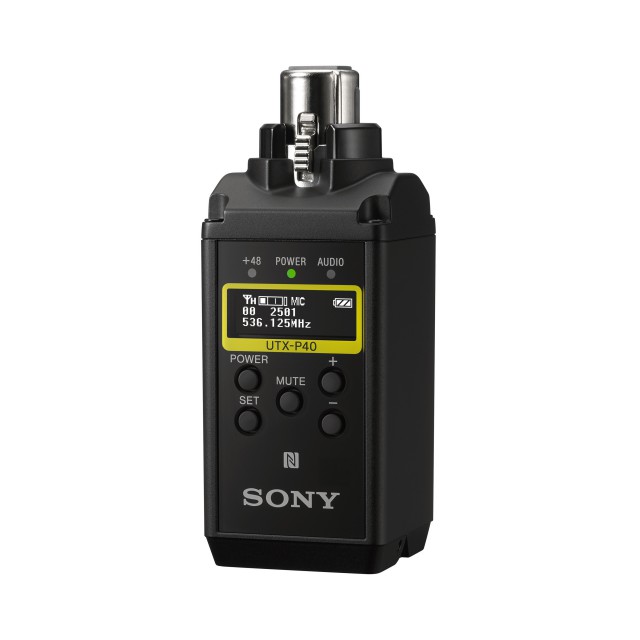

TheSony UTX-P40

is a wireless plug-on transmitter compatible with the URX-P40 camera-mount receiver. Compact and lightweight, with a robust, all-metal construction, this plug-on is well suited for tough operating conditions. It provides up to 6 hours of operation on two AA batteries, with a selectable 5/40mW RF power output and a transmission range up to 330'.

The UTX-P40 can be attached to a handheld microphone of your choice for man-on-the-street interviews, or to a shotgun mic for wireless booming (both types of mics are available separately). The plug-on provides 48V phantom power, giving you the option to use a condenser microphone. The transmitter offers a 72 MHz bandwidth with 2772 selectable UHF frequencies.

The UTX-P40 is backward-compatible with Sony WL-800 and UWP Series systems.

High-Quality Sound with Digital Audio Processing

Unlike traditional analog wireless systems, the UWP-D supplements its proven analog UHF transmission technology with a proprietary digital audio processing. Transient sounds and consonants are reproduced with greater accuracy, resulting in clear, natural sound that's intelligible and nuanced.

Automatic NFC Sync Mode

Press and hold the NFC/Sync button on the receiver and it scans for the cleanest RF channel. Simply hold the transmitter next to the receiver; it automatically syncs up and you're good to go!

Unlike purely digital systems, the UTX-P40 allows you to send a single mic to multiple cameras for broadcast applications. Fast NFC communication makes setup for multiple receivers a breeze.

Auto-Gain Mode to Prevent Mic Distortion

Auto-Gain mode saves you the time and aggravation of setting and managing the input level on the transmitter. It uses a limiter to help prevent distortion, great when the loudness of the presenter's voice is unknown.

The +15 dB Gain Volume-Boost mode boosts the mic gain by 15 dB to compensate for situations when the mic is not close enough to the presenter's mouth and the audio level is insufficient.

Manual input-level setting is also available.

High-Visibility OLED Display for Indoor/Outdoor Use

The unit features an easy-to-read OLED display. The quick response of the display lets you see the operating conditions clearly and accurately in real time, even in bright sunlight.

DSP Filter Removes Occupancy Sensors Artifacts

Two levels of DSP filtering help remove the artifacts caused by occupancy sensors used in modern "green" buildings to turn off lights when people leave a room.

Multiple Powering Options

Two AA batteries (alkaline or NiMH rechargeable type) power the transmitter for up to 6 hours.

The unit can also be powered through its USB port, allowing it to run for numerous hours on a USB power pack or indefinitely, if you have access to AC.

A battery count-up timer allows for accurate reading of battery running time to minute accuracy.

Other Features

• Switchable Mic/Line input level so you can set the correct gain level for your sound source.
• Low-cut filter reduces noise caused by wind or machinery-Off / Low (100 Hz) / Mid (150 Hz) / High (200 Hz).
• Simple menus make navigation easy. Advanced menus for in-depth control are also available.
• The variable mute button on the transmitter can be programmed for latched or momentary muting. It can also be used as a momentary talk button.
• You can operate up to 16 mics in one location.

Compatibility with Other Sony Wireless Systems

The UWP-D transmitter can be used with a UWP Series or WL-800 Series receiver. A UWP Series or WL-800 Series transmitter can be used with a UWP-D receiver.
