Sony UWP-D27 K33

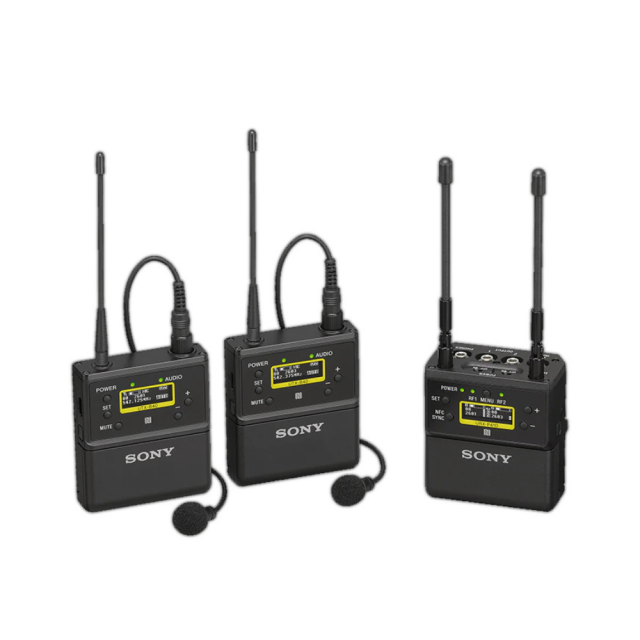

Sony UWP-D27 (K33) wireless bodypack microphone package with bodypack transmitter, 2-channel portable receiver, lavalier microphone and accessories: easy to use with high quality sound and seamless integration with Sony cameras.

More information

1 819 € with VAT 1 503.31 € without VAT
-+
Availability
Backordered 2 pcs

Show all accessories

Product description SPECIFICATIONS PACKAGE CONTENT

Product description

Sony UWP-D27 (K33) wireless bodypack microphone package with bodypack transmitter, 2-channel portable receiver, lavalier microphone and accessories: easy to use with high quality sound and seamless integration with Sony cameras.

Explore the UWP-D27 wireless bodypack microphone package

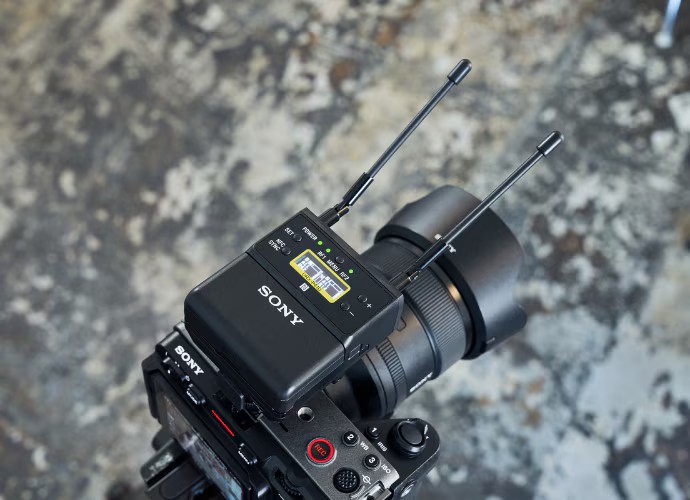

The UWP-D27 is a complete wireless audio package that’s ideal for on-camera interviews, live presentations and other applications where you need to capture crisp, clear sound with minimum fuss. The ECM-V1BMP omni-directional lavalier microphone connects to the light, compact UTX-B40 bodypack transmitter that’s worn by an interviewee. Audio is transmitted wirelessly to the URX-P41D 2-channel portable receiver, with quick and easy wireless pairing between transmitter and receiver. An optional Multi Interface Shoe Adaptor simplifies audio recording with compatible Sony cameras and handheld camcorders.

Backward compatibility with IR sync

The IR port on the URX-P41D allows users to select NFC or IR in SYNC MODE from the Utility menu. This allows owners of previous transmitter models (UTX-B03/UTX-M03/UTX-P03) to sync receivers and transmitters with IR.

Portable receiver with variable output level

For use with the various input levels of different camcorders and DSLR cameras, the new system provides a variable output level control of ±12dB. Equipped with a new HIGH GAIN mode, the URX-P41D is especially useful when connecting to devices that require higher gain.

True diversity for stable audio

Excellent signal quality is assured by two independent receiver sections that ensure stable, dropout-free reception.

Fast, fuss-free channel setting

Uniquely quick and convenient, Sony’s friendly NFC SYNC feature allows secure channel pairing between the UTX-B40 wireless transmitter and URX-P41D receiver.

PACKAGE CONTENT

  • 1x Sony URX-P41D
  • 2x Sony UTX-B40
  • 2x Sony ECM-V1BMP
  • 2x Mic Clips
  • 2x Windscreens
  • 3x Belt Clips
  • Shoemount Adapter for Receiver
  • 2x XLR to Locking 3.5mm Output Cables
  • 3.5mm to Locking 3.5mm Cable

SPECIFICATIONS

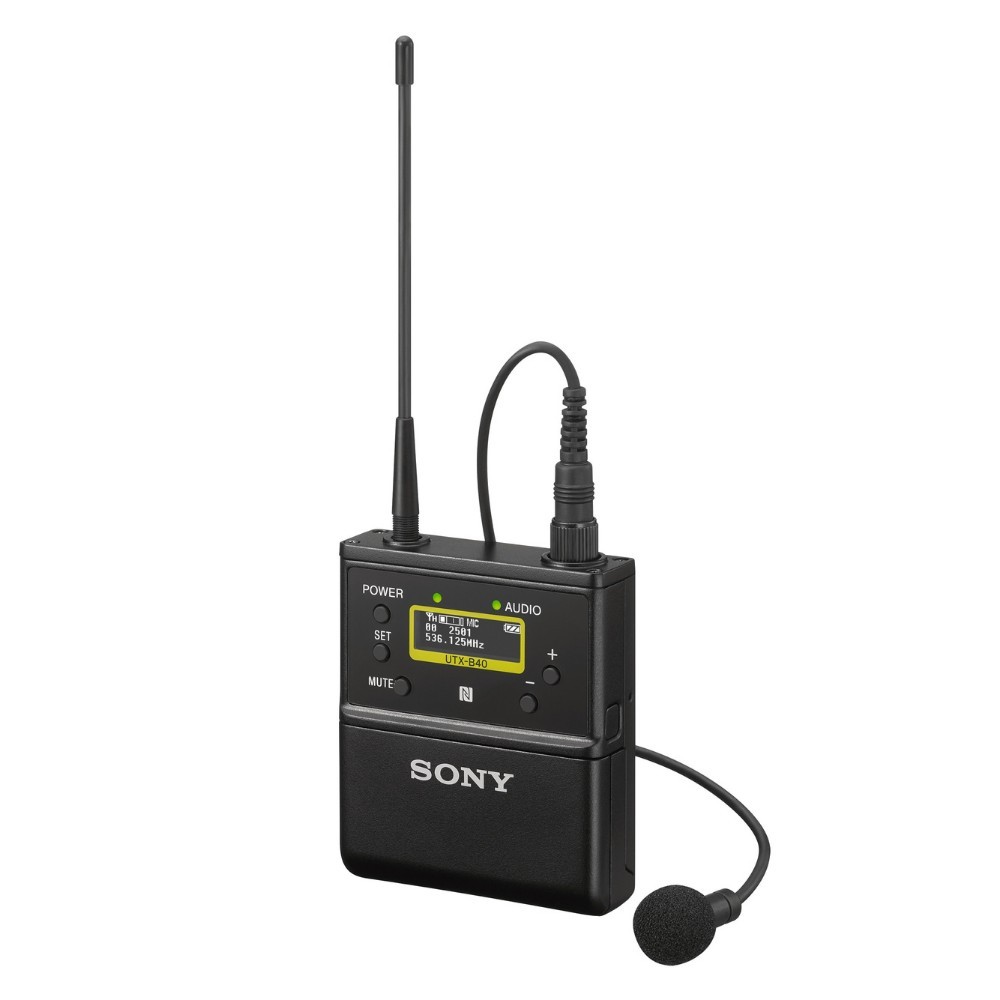

UTX-B40 bodypack transmitter
Oscillator Type
Crystal-controlled PLL synthesizer

Antenna Type
1/4 λ wave length wire antenna

Carrier Frequencies
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21 to 29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33 to 40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42 to 48)

RF Output Power
30 mW/5 mW selectable (UC, U, CE, LA, CN models)
10 mW/2 mW selectable (J, E, KR models)

Capsule Type
Elect retcondenser

Directivity
Omni-directional

Input Connector
3.5 mm diameter 3-pole locking mini jack

Reference Audio Input Level
–60 dBV (MIC input, GAIN MODE set to NORMAL, 0-dB attenuation)
+4 dBu (LINE input)

Audio Attenuator Adjustment Range
0 dB to 27 dB (3 dB steps)

Frequency Response
23 Hz to 18 kHz (Typical) (UC, U, CE, LA, CN, E, KR models)
40 Hz to 15 kHz (Typical) (J model)

Signal-to-Noise Ratio
60 dB (–60 dBV, 1-kHz input)
102 dB (GAIN MODE set to AUTO GAIN, max.)
96 dB (GAIN MODE set to NORMAL, max.)

Distortion
0.9% or less (–60 dBV, 1 kHz input)

Audio Delay
Approx. 0.35 ms

Tone Signal Frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

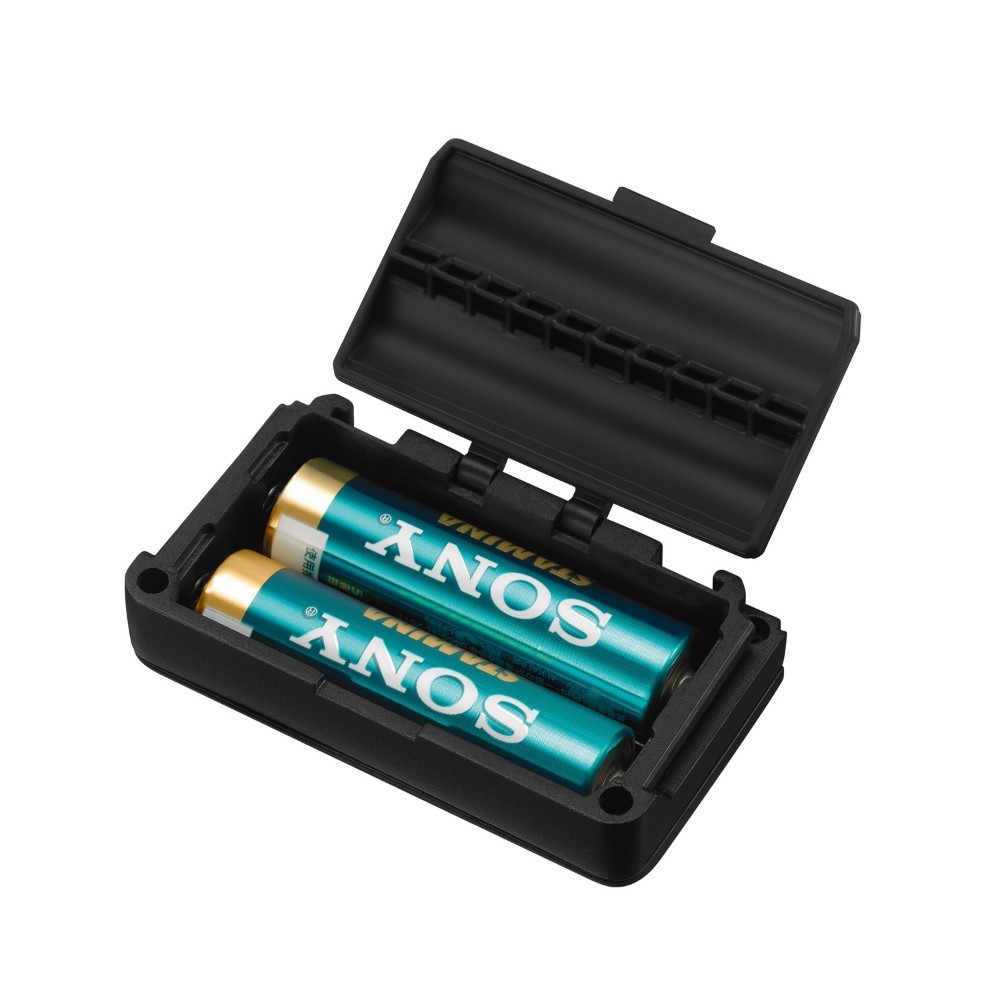

Power Requirements
DC 3.0 V (two LR6/AA size alkaline batteries)

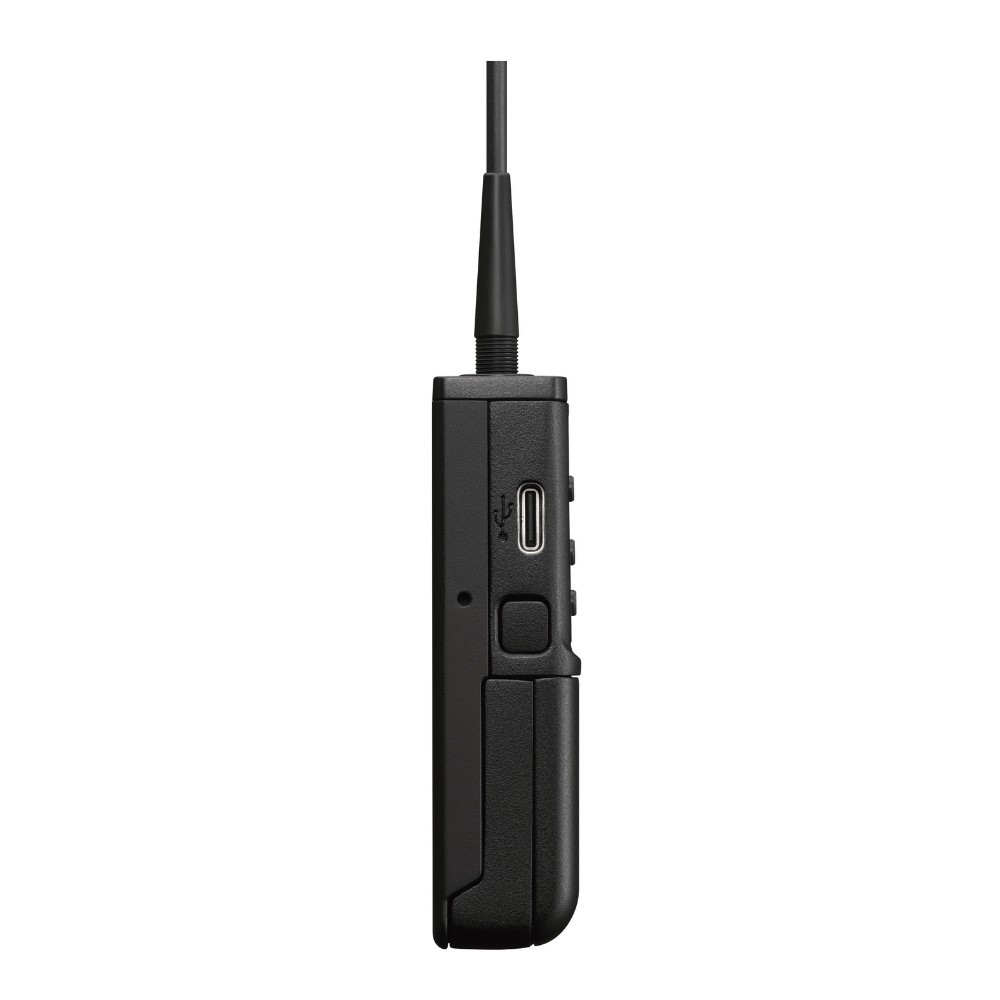

DC 5.0 V (supplied from USB Type-C connector)

Battery life*
Approx. 8 hours with output power of 30 mW (UC, U, CE, LA, CN models)
Approx. 10 hours with output power of 10 mW (J, E, KR models)* Battery life has been measured with two Sony LR6/AA size alkaline batteries at 25 °C (77 °F).

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
-20 °C to +55 °C (–4 °F to +131 °F)

Dimensions
63 x 73 x 19 mm (2 1/2 x 2 7/8 x 3/4 in.) (W / H / D) (excluding antenna)

Mass
Approx. 83 g (2.9 oz) (excluding batteries)

URX-P41D Dual Channel Portable Receiver
Oscillator Type
Crystal-controlled PLL Synthesizer

Reception Type
Space diversity*

Antenna Type
1/4 λ wavelength wire antenna (angle-adjustable)

Carrier Frequencies
21CE: 470.025 MHz to 542.000 MHz (UHF-TV channels 21–29)
33CE: 566.025 MHz to 630.000 MHz (UHF-TV channels 33–40)
42CE: 638.025 MHz to 694.000 MHz (UHF-TV channels 42–48)

Frequency Response
23 Hz to 18 kHz (typical) (UC, U, LA, CN, CE7, KR, E models)
40 Hz to 15 kHz (typical) (J model)

Distortion (T.H.D)
0.9% or less (1-kHz sine wave, 5-kHz modulation)

Signal-to-Noise Ratio
60 dB (1-kHz sine wave, 5-kHz modulation)
96 dB (max deviation, A-weighted)

Audio Delay
Approx. 0.35 ms (analog output)
Approx. 0.24 ms (digital output)

Analog Input
3.5-mm diameter three-pole locking mini-jack (unbalanced)

Analog Input Level
-50dBV (±12dB Adjustable, 3-dB step)

Audio Output level
–60 dBV (3.5-mm diameter three-pole locking mini-jack, analog output)
–20 dBFS (external connection, digital output)
–50 dBV (external connection, analog output)

Audio Output Adjust Range
–12 dB to +12 dB (3-dB step)

Audio Output connector
3.5-mm diameter three-pole locking mini-jack (balanced),
External connection

Headphone Output Connector
3.5 mm diameter mini jack

Headphone Output Level
Max. 10 mW (16-ohm)

Tone signal frequency
In UWP-D compander mode: 32.382 kHz
In UWP compander mode: 32 kHz
In WL800 compander mode: 32.768 kHz

Display
OLED

Power Requirements
DC 3.0 V (with two AA-size alkaline (LR6) batteries)
DC 5.0 V (supplied from USB Type-C connector)

Battery Life
Approx. 4.5 hours with two AA-size alkaline (LR6) batteries at 25 °C (77 °F), DISPLAY MODE set to AUTO OFF

Operating Temperature
0 °C to 50 °C (32 °F to 122 °F)

Storage/Transport Temperature
–20 °C to +55 °C (–4 °F to +131 °F)

Dimensions
63 × 70 × 35 mm (2.48 × 2.76 × 1.38 in) (W / H / D) (excluding antenna)

Mass
Approx. 159 g (5.6 oz) (excluding batteries)
Parameters

Parameters

Manufacturer: SONY
Category: Wireless systems

Main parameters

Number of audio channels2

Other parameters

Selectable frequencies10 Channel
Frequency range470,025-542,000 MHz
